Shanghai Quanfu Industrial Co., Ltd

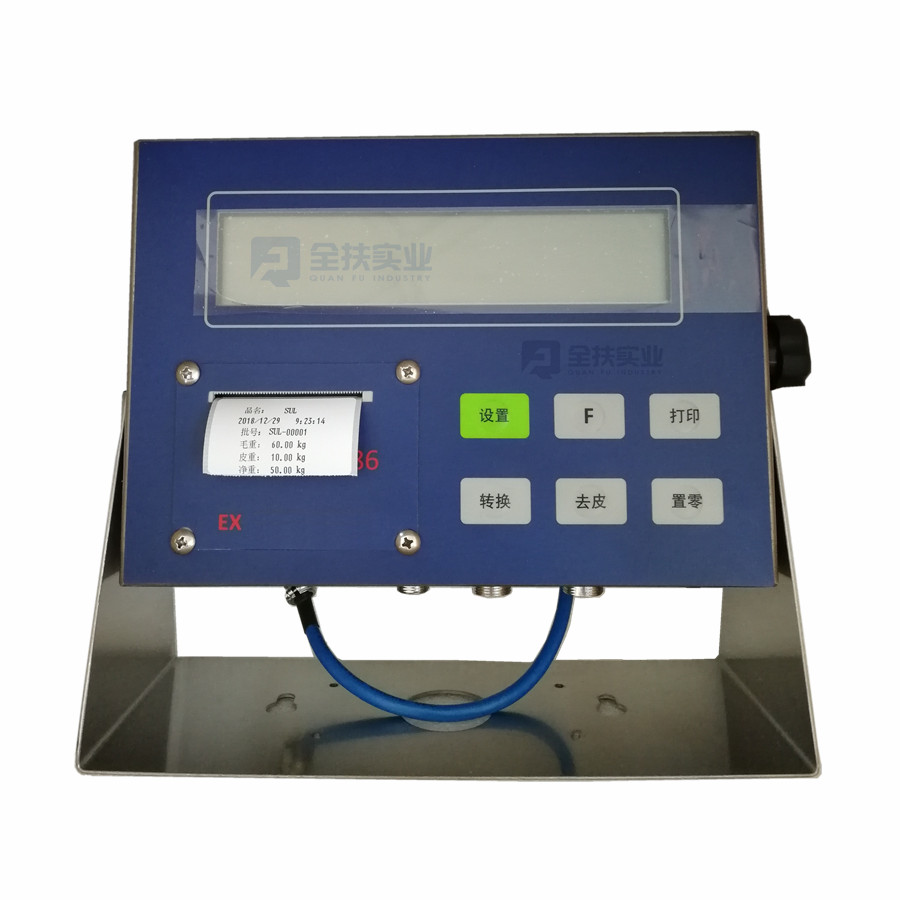

Tcs-ex-517 explosion proof printing platform scale

Explosion proof belt printed electronic scale, label printed explosion-proof platform scale

Intrinsically safe explosion-proof printing instrument, equipped with industrial explosion-proof platform scale

30kg to 1000kg range optional

It is used in places where chemical and pharmaceutical enterprises need to weigh and print

Product Details

TCS-EX-517 Explosion proof printing platform scale Ex intrinsically safe Explosion proof electronic platform scale Ex explosion-proof electronic platform scale is a special weighing and measuring equipment specially designed for chemical industry, medicine, storage and other explosive gas and explosive dust environments.

Technical parameters:

Range: 6kg to 1000kg

Division value: 3000e / 15000d

Instrument display: 35mm digital LCD display

Instrument structure: stainless steel shell

Scale platform size: 300 × 400mm~600 × 800mm (customizable)

Material of scale platform: carbon steel scale frame, stainless steel table or all stainless steel scale platform

Sensor: 4 × 350 Ω C3 or C6 single type high-precision explosion-proof sensor

Operating ambient temperature: - 10 ℃ ~ + 40 ℃

Basic functions:

Multi function key operation (weight counting, printing, accumulation, peeling, zero setting)

Explosion proof grade: ex ibiict3 / T5 (T3 when using explosion-proof battery and T5 when using intrinsically safe output power supply).

The label printing format can be customized (including printing time, date, weight, product name, tare weight, gross weight, net weight, etc.)

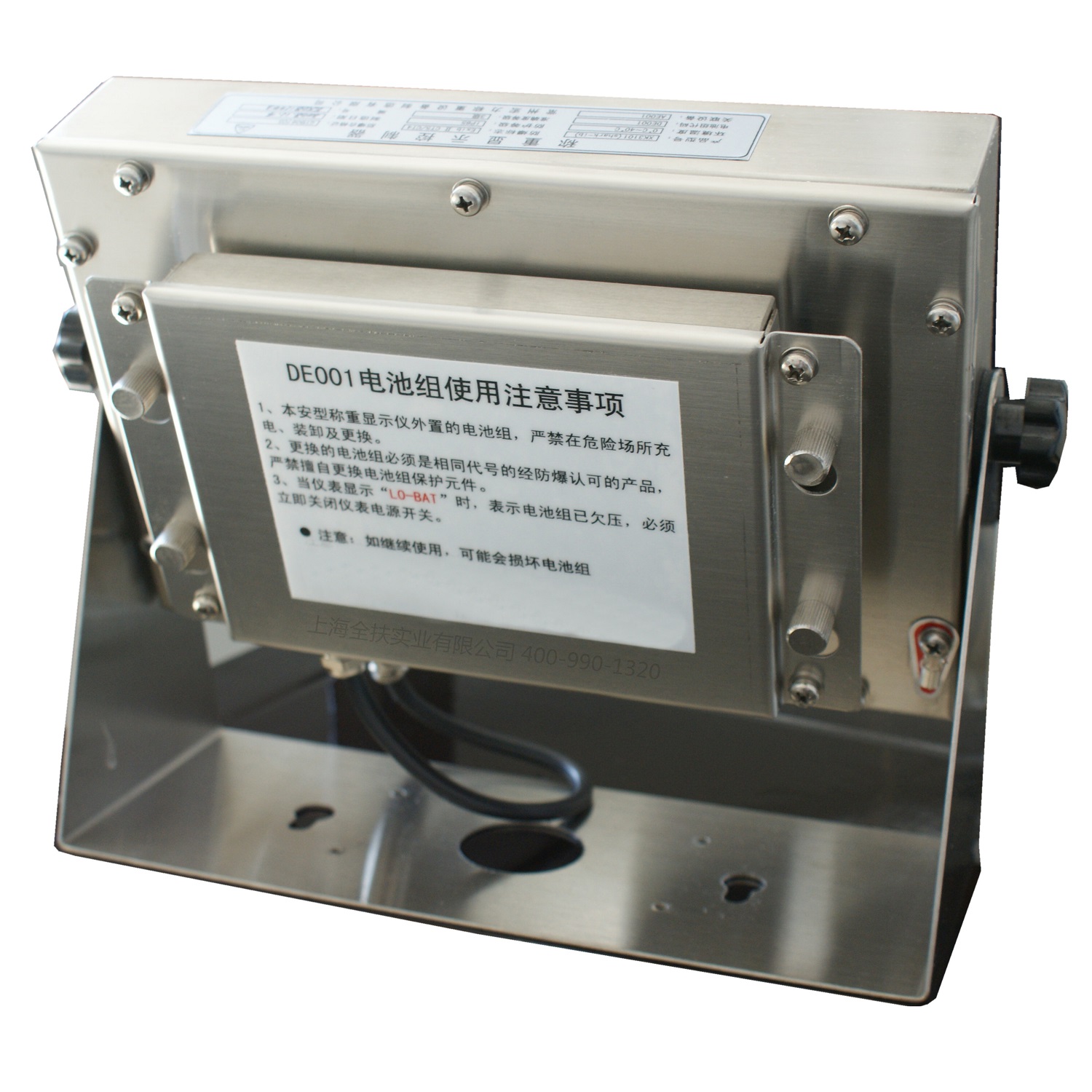

Intrinsically safe explosion-proof power supply or intrinsically safe explosion-proof battery can be used for charging and plug-in, so as to avoid the trouble of unstable power supply and power failure

Optional RS-232 interface, external computer or other equipment

Features of weighing platform:

Stainless steel table top: the surface is polished and brushed to meet the waterproof standard of IP-65

4 adjustable foot seats, and the vertical rod of round pipe or square pipe can be removed

Reinforced structure weighing platform, precision welding, ensuring high-precision stability, firm and durable structure and strong pressure bearing capacity

High quality electrostatic spraying and sand blasting treatment, strong corrosion resistance, excellent platform strength, beautiful appearance and durability

Compact structure, stable performance, accurate measurement, high universality of parts, easy disassembly and transportation, and easy movement of scale body

The factory configuration is a high-precision pressure sensor, with a safe load of more than 150%

Conventional table size: 400 × 500mm/450 × 600mm/600 × 800mm

Specification selection:

Product model

weighing (optional)

Division value (customizable)

Platform size (matching)

TCS-Ex-517

30kg/50kg

2g/5g/10g

300*400mm

TCS-Ex-517

60kg/75kg

2g/5g/10g

400*500mm

TCS-Ex-517

100kg/200kg

5g/10g/20g

400*500mm

TCS-Ex-517

150kg/300kg

5g/10g/20g

400*500mm

TCS-Ex-517

300kg/600kg

10g/20g/50g

600*800mm

Remarks: more weighing, accuracy and table size can be customized. The range and table size can be matched arbitrarily. All stainless steel materials can be selected.
