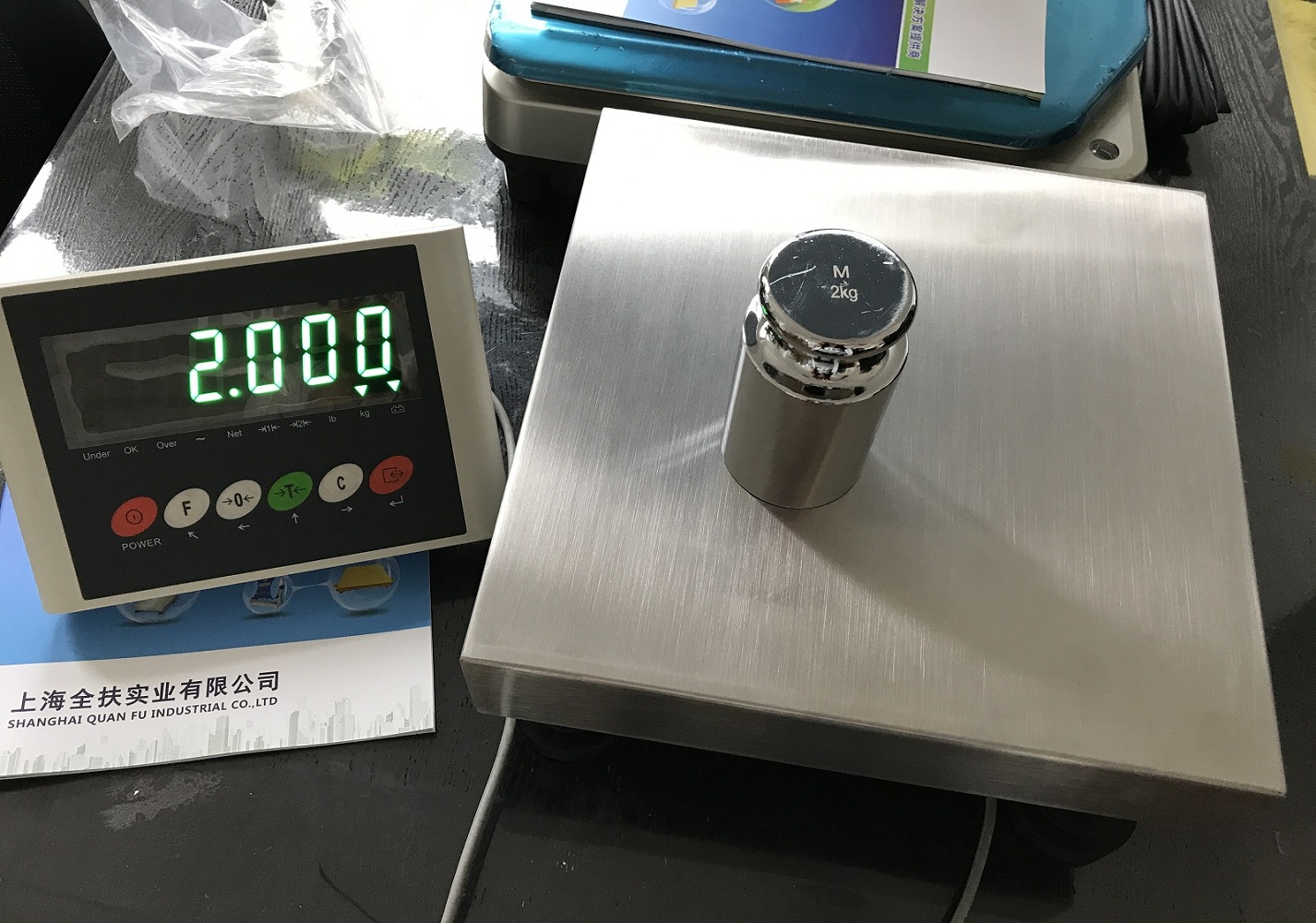

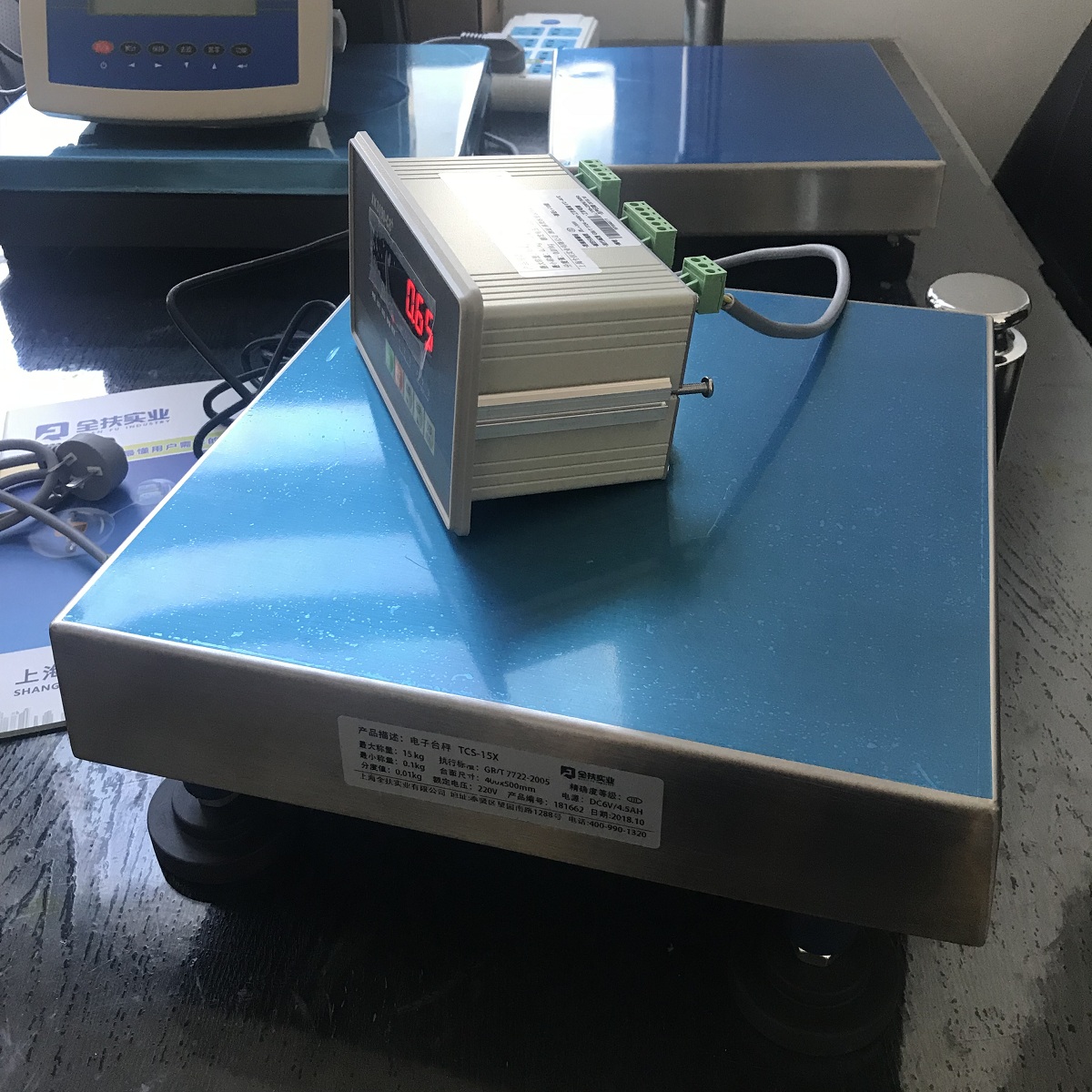

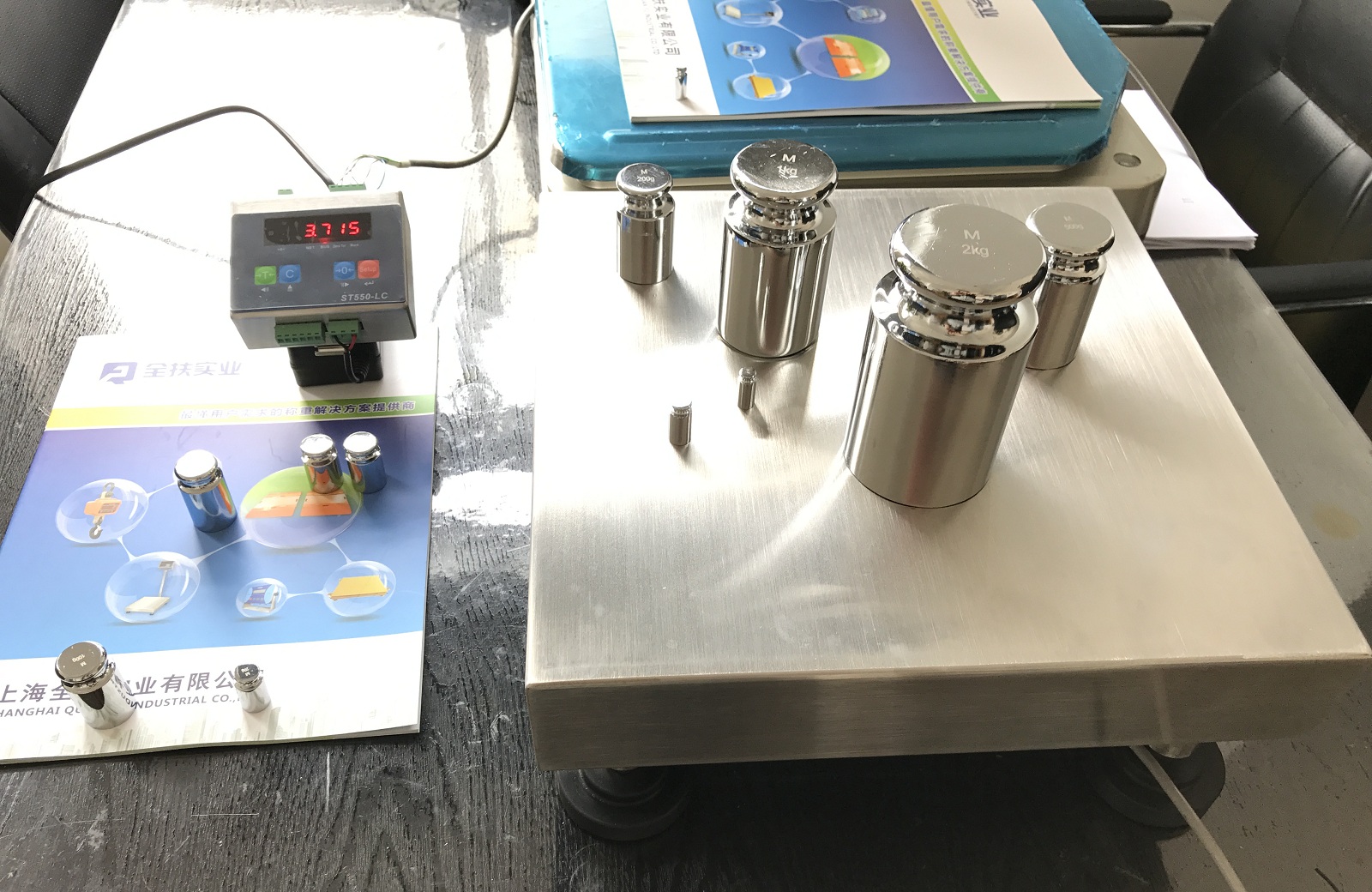

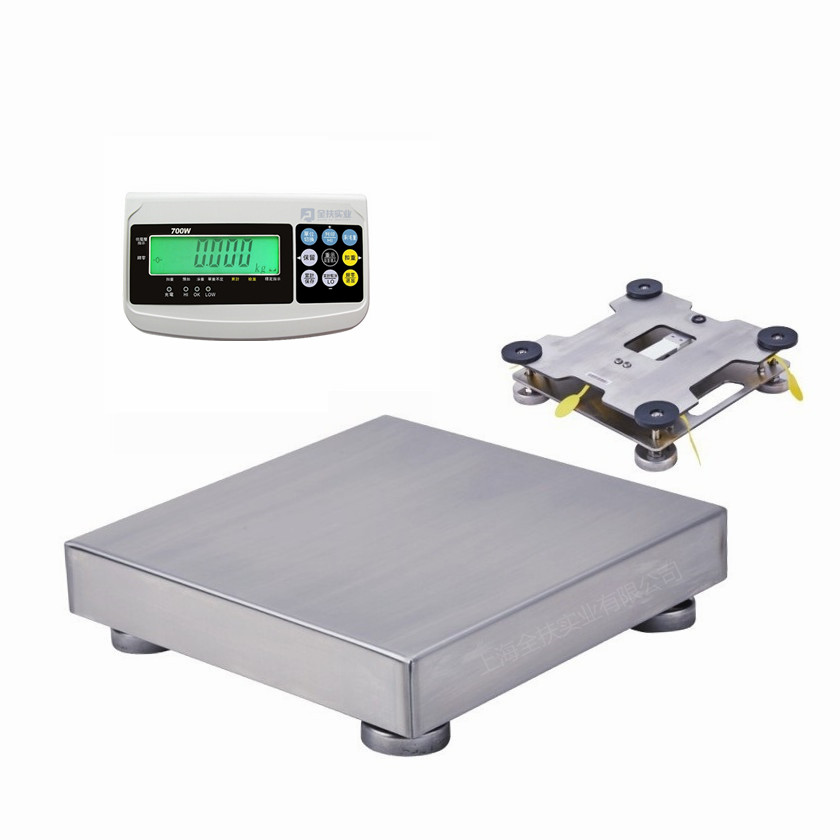

Tcs-k high precision platform scale high precision electronic scale

High precision electronic platform scale, weighing 0 ~ 100kg, accuracy 1g

The maximum weighing capacity ranges from 6kg to 600kg, and the displayed division value ranges from 1g to 20g

Real high-precision scale, high display resolution, high-strength scale body and compact structure

Equipped with imported components and high-precision sensors, special customization and order production

Product Details

Tcs-k series electronic balance , 1 second display weighing stable speed, accuracy up to 350000 D, display division, meet various measurement permits, have an ideal high accuracy electronic platform scale in the same level of weighing equipment, and can well adapt to harsh industrial weighing occasions

Technical parameters:

Accuracy class: III

Weighing display: 6-digit LED or LCD with backlight

Measuring range: 30kg / 60kg / 150kg / 300kg

Division value: 1g / 2G / 5G / 10g / 20g / 50g

Scale platform size: 300 * 400mm, 400 * 500, 600 * 800mm (customizable)

Operating environment: working temperature - 10 ℃ ~ + 40 ℃, relative humidity ≤ 85% R.H

Working power supply: ac110 ~ 220V 50 / 60Hz, built-in lead-acid battery dc4-6v / 4ah

Basic functions:

It has the functions of zero setting, weight removing, weight accumulating and weighing

Optional RS232 / 485 communication interface, external computer or printer

Optional 4-20mA analog output or relay output

Optional waterproof and explosion-proof type

Optional mobile mechanism

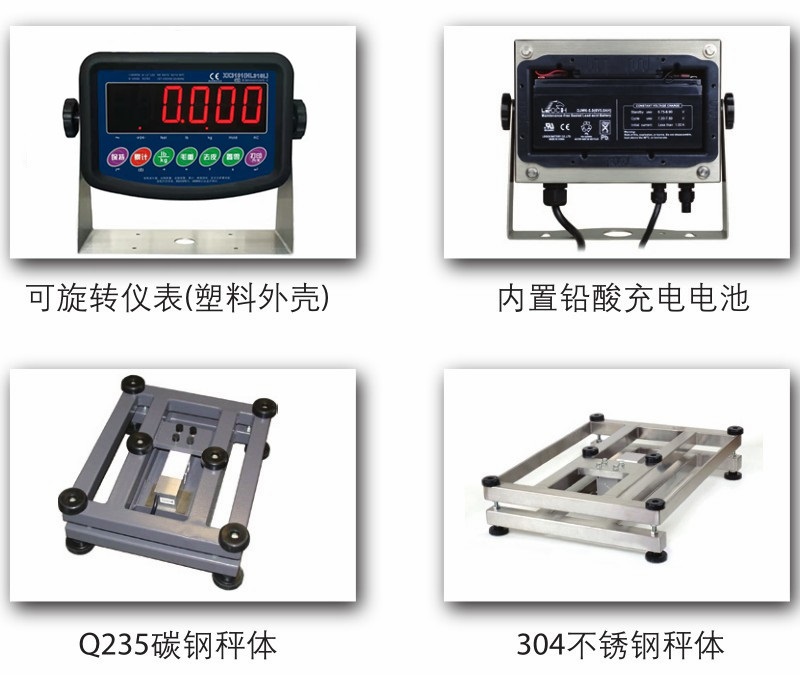

Features of weighing platform:

Scale body material: carbon steel and stainless steel are combined into a high rigid scale body structure, which is assembled and welded with a special fixture to effectively ensure the structural strength. It is firm and durable. The scale body is subject to all-round shot blasting and plastic spraying. It is equipped with high-strength and high-precision weighing sensors (Toledo sensor and HBM sensor are optional), and the weighing range is 15-1000kg

Specification model:

model

Range (optional)

Division value (customizable)

Platform size (matching)

TCS-60

30kg/60kg

1g/2g/5g/10g

400*500mm

TCS-100

50kg/100kg

2g/5g/10g/20g

400*500mm

TCS-150

60kg/150kg

2g/5g/10g/20g

400*500mm

TCS-300

150kg/300kg

5g/10g/20g/50g

500*600mm

TCS-600

600kg/1000kg

10g/20g/50g/100g

600*800mm

Note: Different measuring ranges and accuracies can be matched with weighing tables of any size. Various table sizes can be customized. High precision scales can be used for order production

More industrial weighing scales can be customized and optional, which can meet the application needs of any industry.
