Current Position: Home > Company Products >TCS platform scale > Tcs-sz digital platform scale
Electronic scale digital platform scale without weighing display instrument
The weighing platform can be directly connected to the computer with data transmission function
Communication protocol: RS232 / 485 communication or MODBUS-RTU format (bus + with address)
Weight data output rate 10 times / S

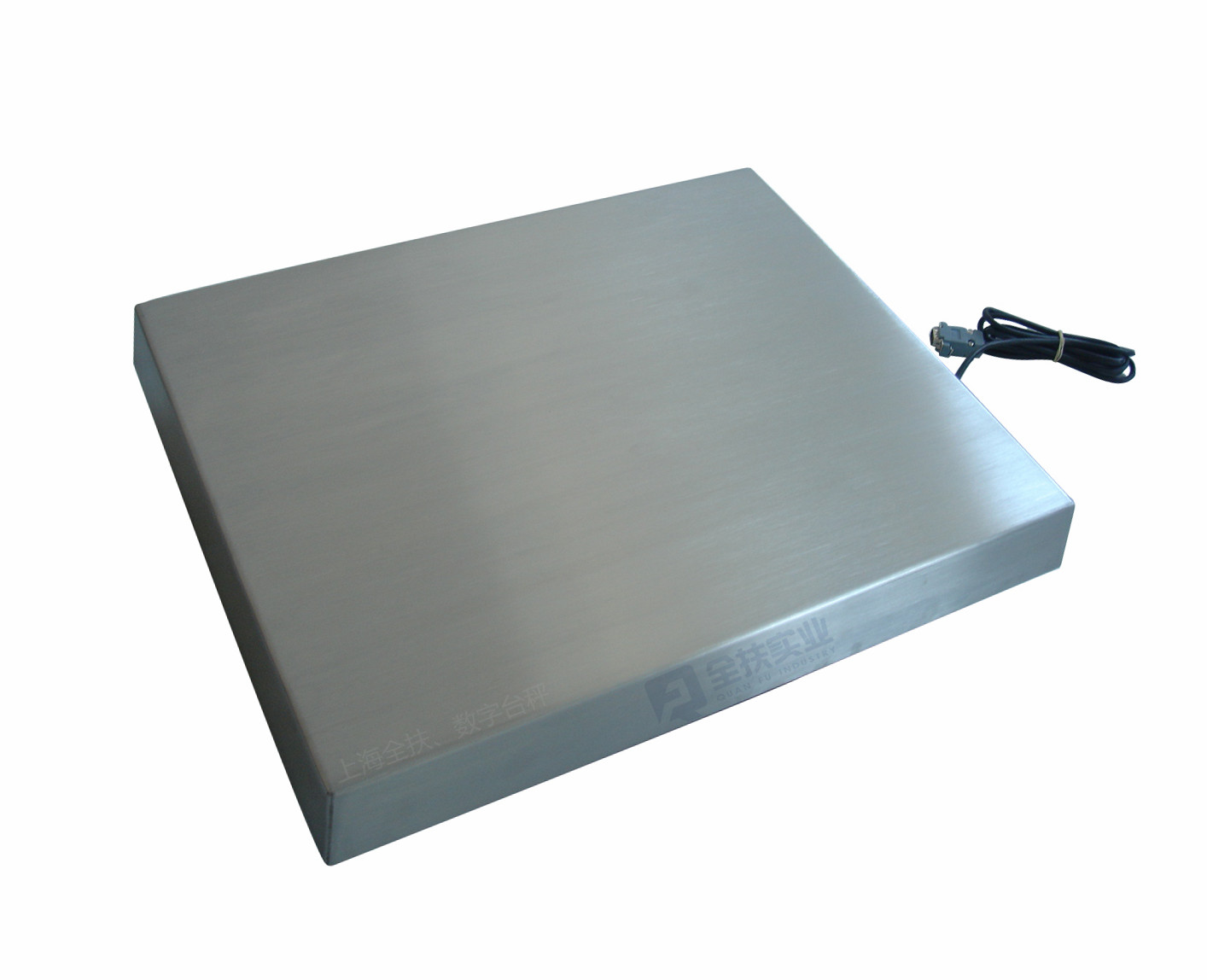

Tcs-sz series Digital electronic platform scale , there is no need for weighing display instrument. The scale platform can directly be a digital platform scale with data transmission function. It is applied to industrial automatic weighing, controlled weighing system, automatic transmission of weighing data and other occasions. Customized high-quality weighing platform is equipped with high-quality digital sensors and digital modules to realize high-quality, convenient and accurate weighing.
Change the division value and automatically output the corresponding weight without on-site calibration
According to different use occasions, the filter parameters and zero setting range parameters can be changed, which is convenient to use
Technical parameters:
Range: 6kg to 600kg
Division value: 1g ~ 100g
Scale platform size: 300 × 400mm~600 × 800mm (customizable)
Scale platform material: carbon steel or stainless steel scale frame, stainless steel table
Sensors: 1-4 350 Ω or 1-8 700 Ω sensors can be connected
Operating ambient temperature: - 5 ℃ ~ + 40 ℃
Various scales with different structures and specifications can be selected (customizable)
Basic functions:
Manual / automatic transmission function
RS-232 / RS-485 communication (VP power supply red DC + 5.3v-12v) power supply voltage dc5 3v-12v, 19200 baud rate;
Word temperature compensation, intelligent creep compensation, a / D sampling rate: 10 times / S; Weight data output rate: 10 times / S;
Change the division value and automatically output the corresponding weight without on-site calibration; Modify the ground gravity acceleration, which can be used in different places without calibration;
According to different use occasions, the filter parameters and zero setting range parameters can be changed, which is convenient to use。
In the communication mode, there are one start bit, eight data bits and one stop bit. There is no parity bit. In the half duplex communication mode, the data is transmitted in frames. The time of no data state > 1 character is the separation between frames.

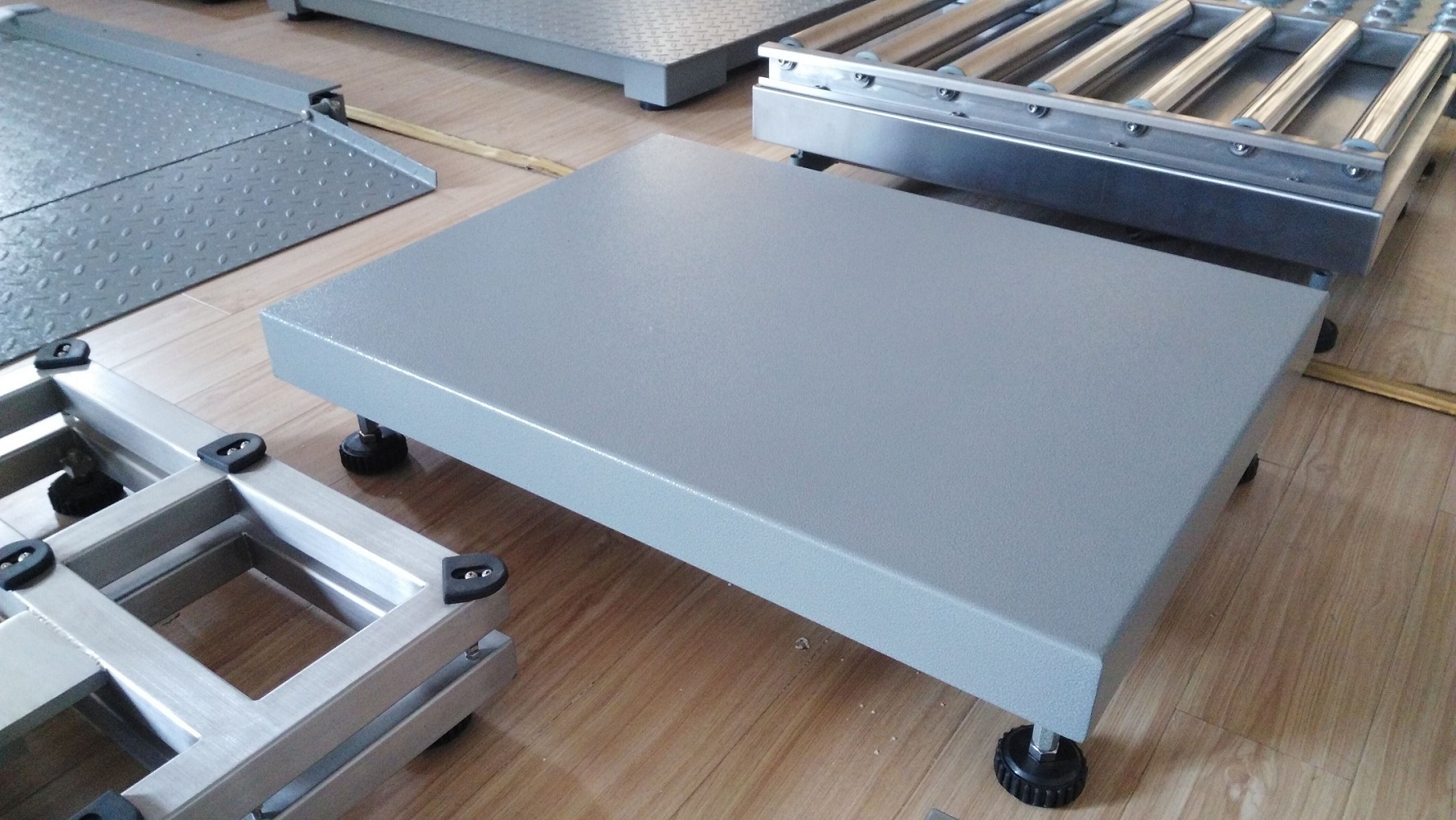

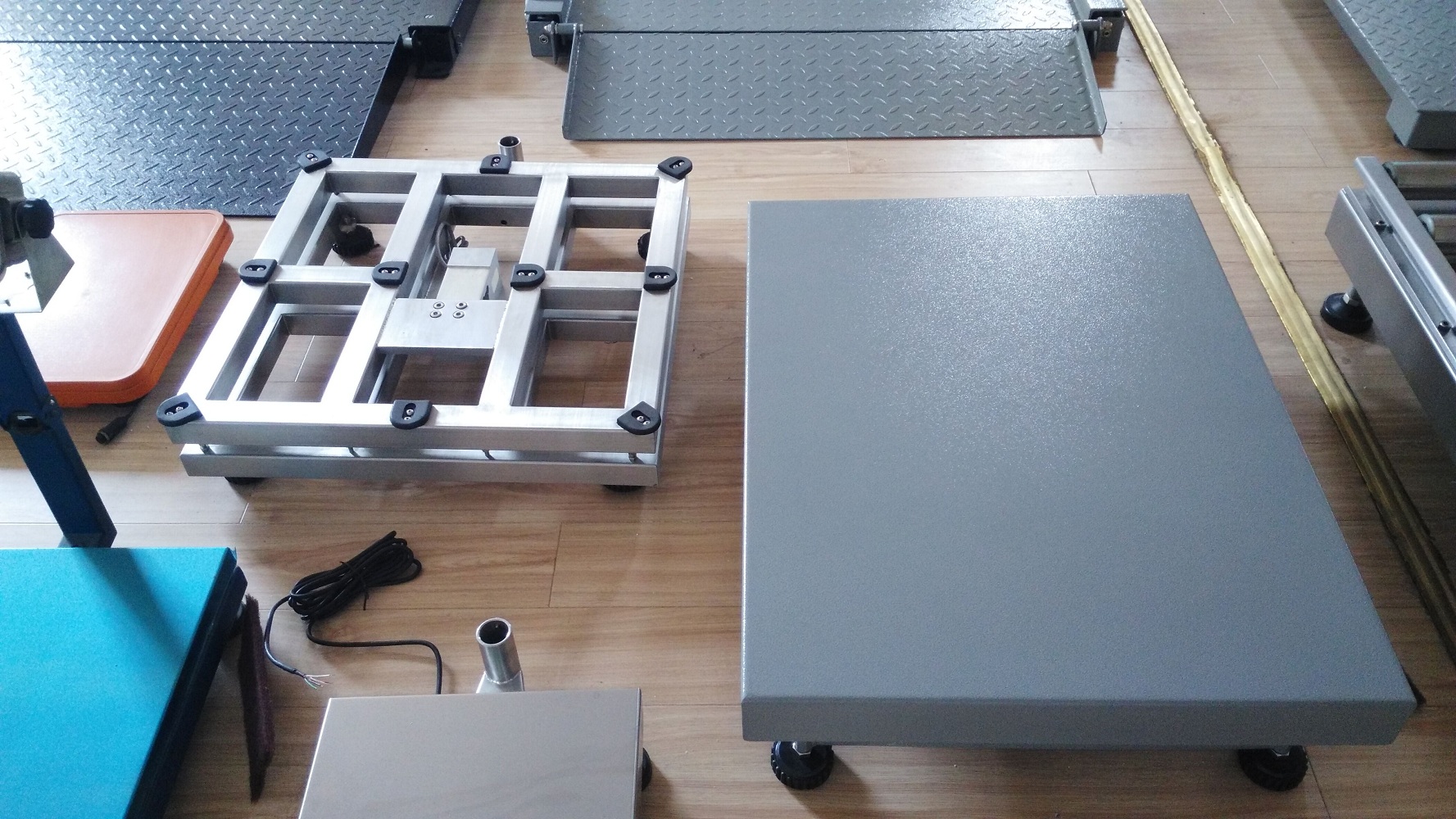

Features of weighing platform:

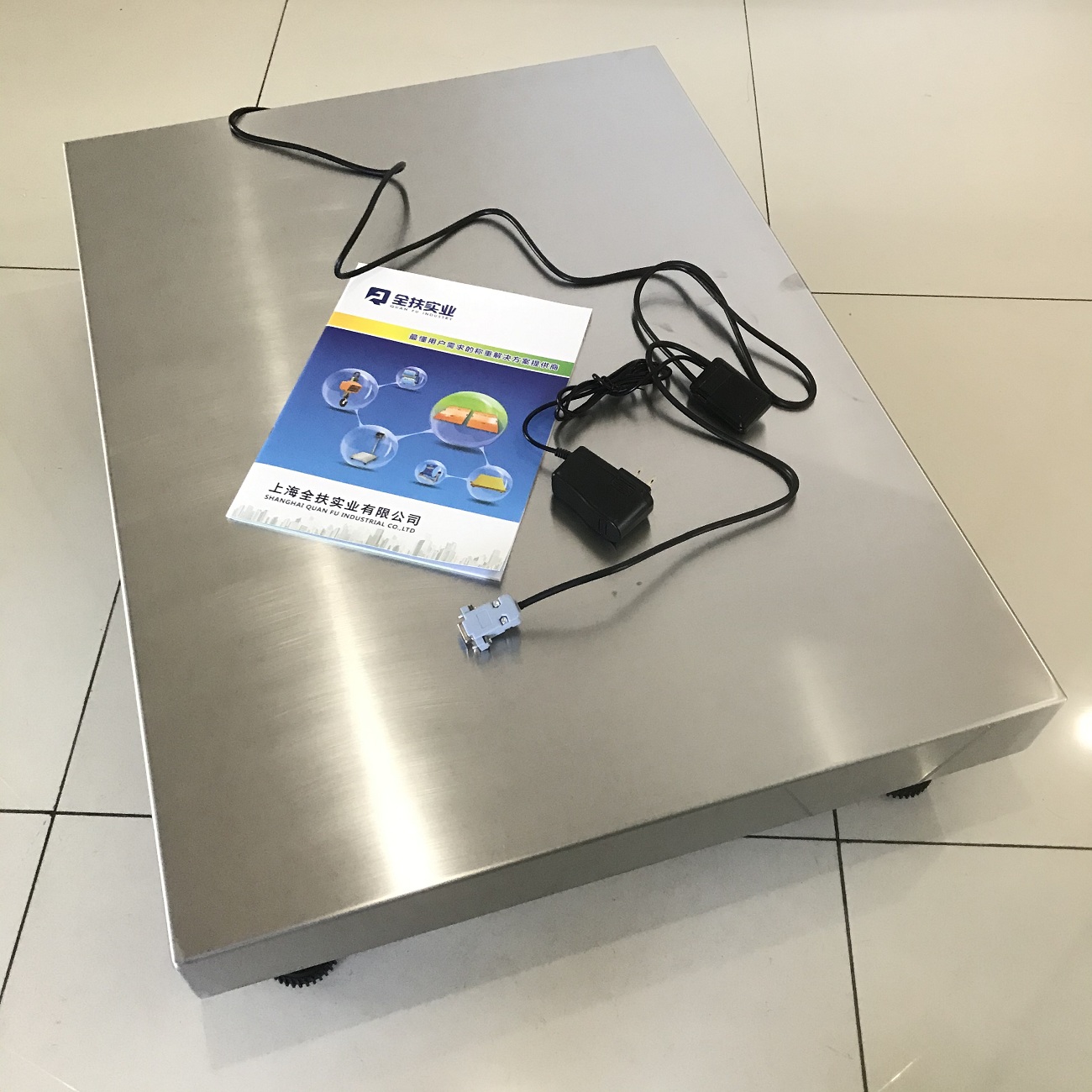

Stainless steel table top: the surface is polished and brushed to meet the waterproof standard of ip-65-68
Four detachable round risers
Reinforced structure weighing platform, precision welding, ensuring high-precision stability, firm and durable structure and strong pressure bearing capacity
High quality electrostatic spraying and sand blasting treatment, strong corrosion resistance, excellent platform strength, beautiful appearance and durability
Compact structure, stable performance, accurate measurement, high universality of parts, easy disassembly and transportation, and easy movement of scale body
The factory configuration is a high-precision pressure sensor, with a safe load of more than 150%.
General size:
model | Range (optional) | Division value (optional) | Table size (optional) |
TCS-30-3040 | 30kg~60kg | 2g/5g/10g | 300×400mm |
TCS-60-4050 | 60kg~150kg | 5g/10g/20g | 400×500mm |
TCS-150-5060 | 300kg~500kg | 10g/20g/50g | 500×600mm |
TCS-300-6070 | 300kg~600kg | 10g/20g/50g | 600×700mm |
TCS-600-6080 | 300kg~600kg | 10g/20g/50g | 600×800mm |
Note: more specifications and sizes can be customized. The measuring range and table size can be matched arbitrarily. The material of carbon steel or all stainless steel scale body can be selected
More high-end electronic scales can be customized. Welcome to inquire
