Current Position: Home > Company Products >TCS platform scale > Tcs-tm bar code printing platform scale printing electronic scale

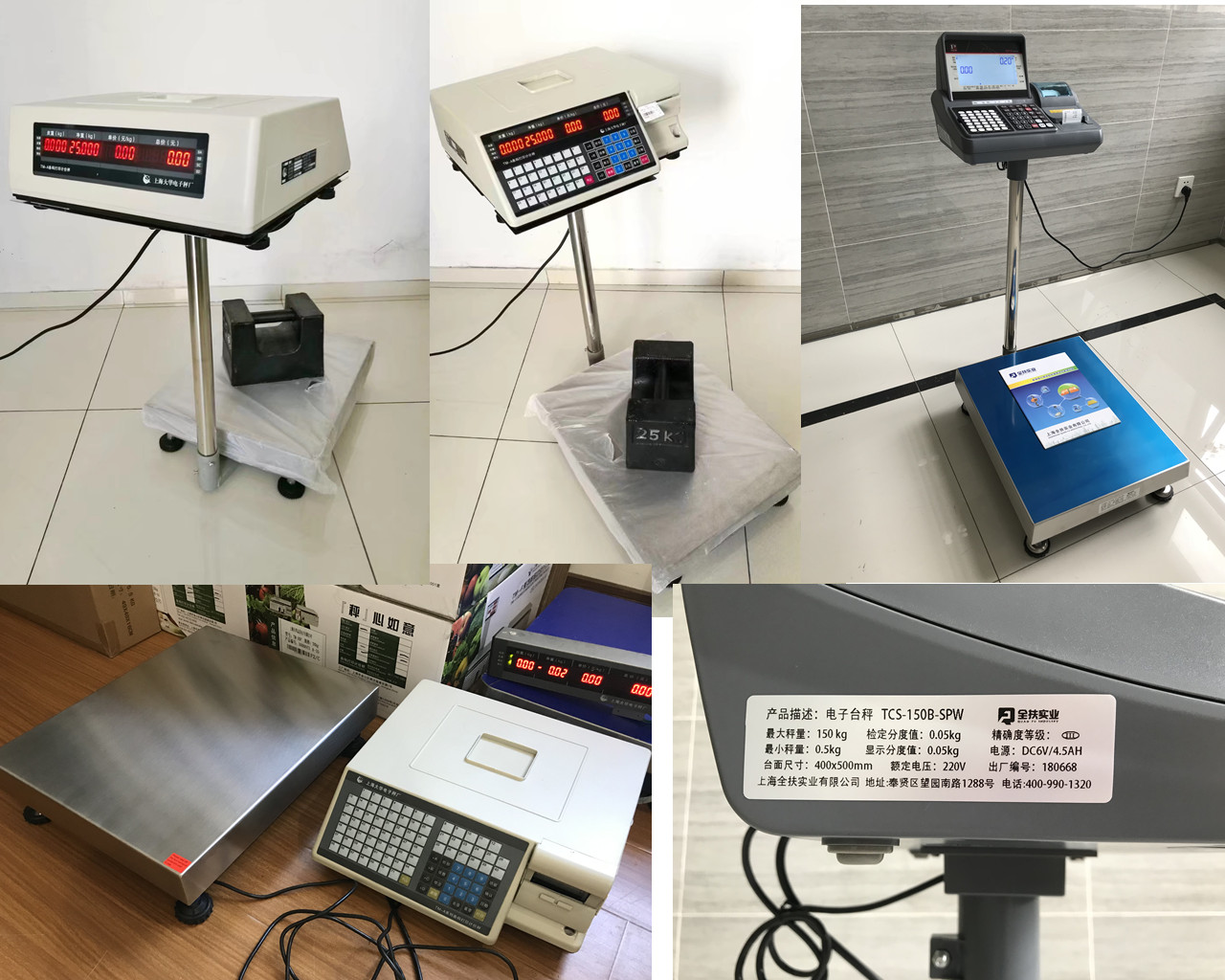

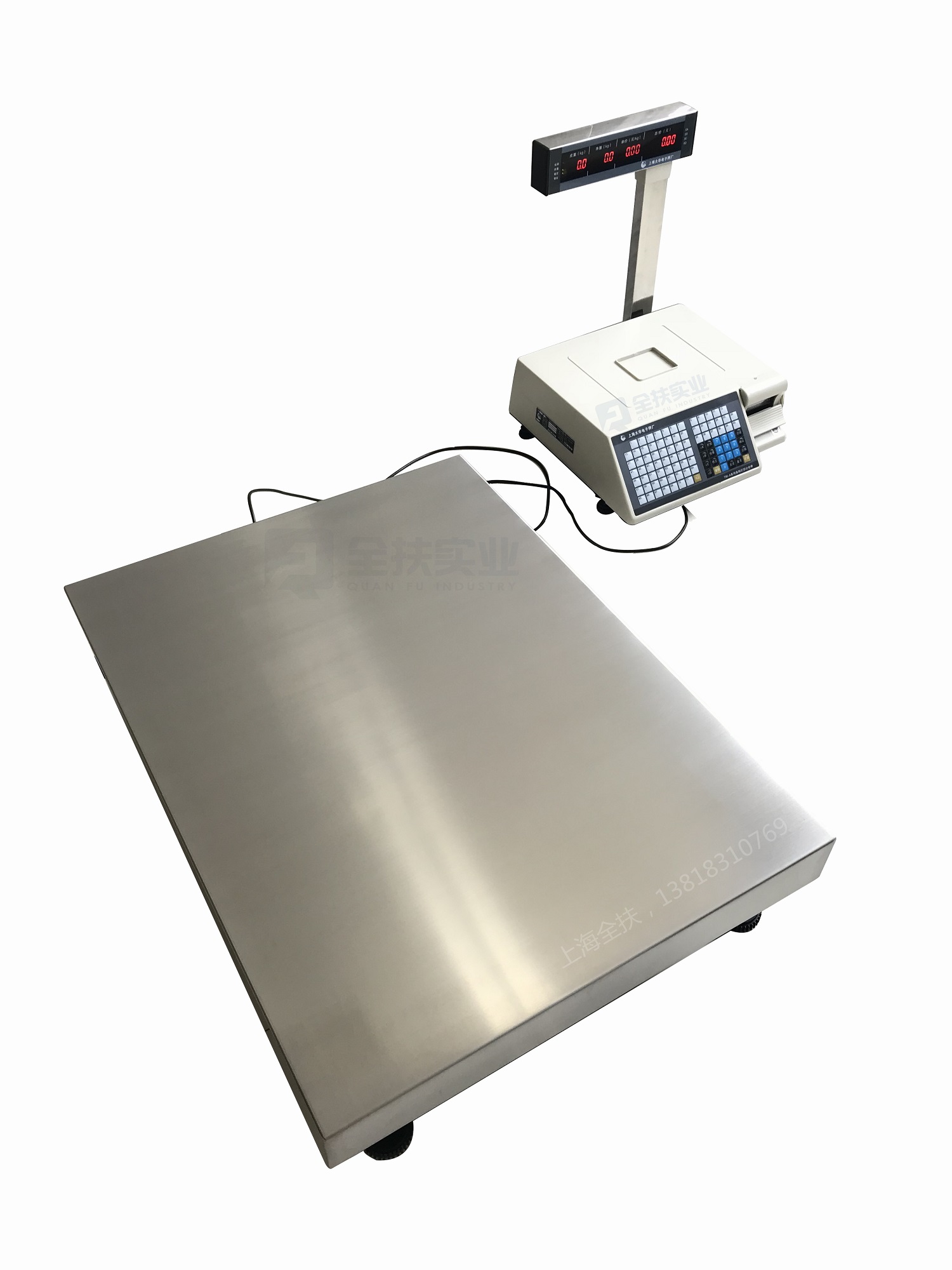

Bar code printing electronic platform scale, combined printing platform scale
There are weight counting, pricing, printing, networked data transmission, etc, Multiple functions and good quality
The range of 30kg to 1000kg can be selected, and the printing base paper can be recycled automatically
Tcs-tm series Bar code printing platform scale The label printing electronic platform scale is equipped with Shanghai Dahua tm-a Series bar code scale as the meter, which is connected with 0-1000kg industrial scale. The table size can be selected and matched according to the use demand, It is used in factory workshop, warehouse receiving and dispatching, food counter, supermarket back room packaging, distribution center, farmers' wholesale market, logistics distribution and other occasions of rapid packaging, weighing, printing, settlement management and so on
Technical parameters:
Accuracy class: III
Maximum range: 30kg ~ 1000kg
Division value: 5g ~ 100g
Instrument display: 3-window LED digital display
Instrument structure: ABS plastic shell
Scale platform material: carbon steel scale frame, stainless steel table
Operating ambient temperature: - 10 ℃ ~ + 40 ℃
Basic functions:
1. Self adhesive label manual or continuous printing function , Automatic recovery of backing paper
2. 4000plu can preset 31-71 product name shortcut keys
3. RS232 and 485 interfaces and TCP / IP interfaces can be selected
4. Various function settings can be made on this machine , The upper computer sets various functions such as format and content
6. Counting and pricing contents can be automatically printed
7. Continuous cumulative report function can be set
8. Barcode format of various structures can be set
9. The upper computer software can be connected with various bar code scales
Product features:
1. The scale can select a variety of bar codes, 8-digit 12 digit 13 digit 18 digit
2. The scale can directly download and upload data on the computer PC, or manually operate and set parameters on the scale
3. The local printer can output a switching value to control the opening of the silver box
4. This machine can print label thermal paper of different specifications
5. This machine can find the shortcut key product content through the code
6. Reinforced structure weighing platform, precision welding, ensuring high-precision stability, firm and durable structure and strong pressure bearing capacity
General size: & nbsp
model | Range (optional) | Graduation value (customizable) | Table size (matching) |
TCS-60-TM | 30kg~60kg | 0.01kg~0.02kg | 400×500mm |
TCS-100-TM | 50kg~100kg | 0.02kg~0.05kg | 400×500mm |
TCS-150T-TM | 150kg~200kg | 0.02kg~0.05kg | 400×500mm |
TCS-300-TM | 300kg~500kg | 0.05kg~0.1kg | 450×600mm |
TCS-600- | 500kg~600kg | 0.05kg~0.1kg | 600×800mm |
Note: more measuring range, accuracy and table size can be customized according to the actual use demand
You can also customize the integrated structure of scale platform instrument. Welcome to inquire
Retest scale, stainless steel unpowered drum scale and powered drum scale
Range: 6-150kg, division value: 2g-50g, high-precision roller scale
Weighing ultra light yellow light, overweight red light, normal green light, with buzzer, and external control equipment
Explosion proof belt printed electronic scale, label printed explosion-proof platform scale
Intrinsically safe explosion-proof printing instrument, equipped with industrial explosion-proof platform scale
30kg to 1000kg range optional
It is used in places where chemical and pharmaceutical enterprises need to weigh and print
Electronic scale digital platform scale without weighing display instrument
The weighing platform can be directly connected to the computer with data transmission function
Communication protocol: RS232 / 485 communication or MODBUS-RTU format (bus + with address)
Weight data output rate 10 times / S
Industrial intelligent electronic scale Android electronic platform scale Configuration High
High quality Android weighing display, equipped with industrial high-quality weighing platform
It has the functions of weight counting, counting, printing, networking, data transmission, supporting secondary development and so on
30kg to 1000kg range is optional, data acquisition, transceiver, PLC connection, etc
Customized electronic scale, electronic scale, Internet of things
It has the functions of weight measurement, counting, pricing, printing, networking, data transmission and so on
液晶屏或触摸屏称重显示仪表，安卓系列可选，支持二次开发
The range of 30kg to 1000kg is optional, and multiple devices can be connected with WiFi
Bar code printing electronic platform scale, combined printing platform scale
There are weight counting, pricing, printing, networked data transmission, etc, Multiple functions and good quality
The range of 30kg to 1000kg can be selected, and the printing base paper can be recycled automatically
Self adhesive label printing, electronic platform scale, industrial platform scale
It is suitable for weighing, counting and printing of high-quality materials and setting of upper and lower limits
Single window weight meter or three window counting meter is optional, LED or LCD display
Built in RS232 interface can be connected to computer, printer, alarm light or external control equipment
The range of 6kg to 500kg can be selected, and dustproof, antimagnetic and antistatic are optional
Portable portable electronic platform scale, small electronic scale
Portable electronic scale with good quality
It is used in express delivery, logistics, medical waste recycling, waste classification and other occasions where it can be weighed everywhere
Built in RS232 or Bluetooth interface can be connected to computer, printer or external control equipment
6kg to 300kg range available
Mobile industrial platform scale, Customized movable scale
Integrated mobile handrail for scale body, instrument and vertical pole
LED or LCD display instrument
It can be used in various factory workshops where weighing is required and mobile weighing is often required
The range of 60kg to 300kg is available
High precision electronic platform scale, weighing 0 ~ 100kg, accuracy 1g
The maximum weighing capacity ranges from 6kg to 600kg, and the displayed division value ranges from 1g to 20g
Real high-precision scale, high display resolution, high-strength scale body and compact structure
Equipped with imported components and high-precision sensors, special customization and order production
High precision electronic platform scale, good quality and high precision
High quality weighing, counting, weight checking and upper and lower limit setting of various factory production lines
Single window weighing instrument or three window counting instrument can be selected, with LED or LCD display
The built-in RS232 interface can be used to connect computers, printers, alarm lights or external control devices
The range from 6kg to 500kg can be selected to replace several imported brands of electronic scales
