Current Position: Home > Company Products >TCS platform scale > Tcs-lw Internet of things electronic platform scale
Customized electronic scale, electronic scale, Internet of things
It has the functions of weight measurement, counting, pricing, printing, networking, data transmission and so on
液晶屏或触摸屏称重显示仪表，安卓系列可选，支持二次开发
The range of 30kg to 1000kg is optional, and multiple devices can be connected with WiFi

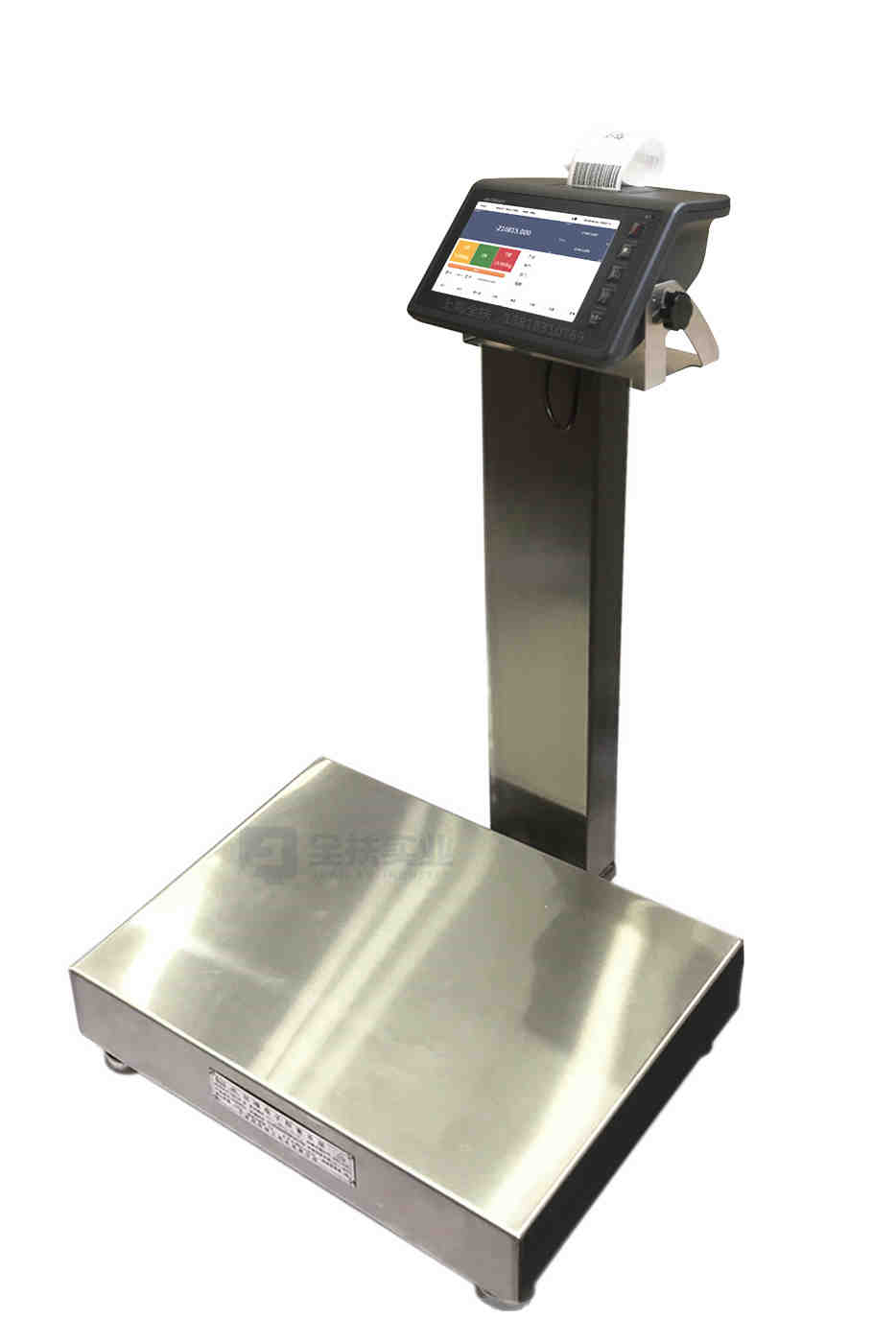

Tcs-lw series Internet of things electronic platform scale , touch screen Internet of things intelligent platform scale, standard USB interface, convenient data transmission and U disk export, optional two-dimensional code barcode label printing, optional scanning gun and Bluetooth module, suitable for Express small Kwai, big Kwai and all-in-one machine applications.
Technical parameters:
Accuracy class: III
Maximum range: 30kg to 1000kg
Division value: 3000e / 15000d
Instrument display: touch the color screen, customize the interface according to customer needs, and support multiple languages
Communication interface: 2 RS-232, 1 RS-485, 1 RJ-45, 1 USB device, 1 USB host
Relay output: 4-way built-in solid state relay, contact capacity 24V AC / DC 0.5A
Switching value input: 2-way photoelectric isolation input, input signal + 5 ~ + 12V DC, level mode control
Working power supply: DC 16.8v
Built in battery: 14.8v2200mah lithium battery pack
Scale platform size：300 × 400mm~600 × 800mm (other sizes can be customized)
Scale platform material: carbon steel or stainless steel scale frame, stainless steel table
Operating ambient temperature: - 10 ℃ ~ + 40 ℃
Basic functions:
Zero setting, peeling, accumulation, weight counting, counting, weight checking and printing
Standard Ethernet interface and optional Wi Fi interface are provided to facilitate the establishment of LAN and Internet, which can be used in various Internet of things application scenarios
The computer application software and mobile application software are remotely synchronized and updated with the local important parameters and database of the instrument
Computer supporting software can be connected with enterprise ERP system
The surface of stainless steel table top is polished and brushed to meet the waterproof standard of IP-65
Four detachable round risers
Reinforced structure weighing platform, precision welding, ensuring high-precision stability, firm and durable structure and strong pressure bearing capacity
High quality electrostatic spraying and sand blasting treatment, strong corrosion resistance, excellent platform strength, beautiful appearance and durability
Compact structure, stable performance, accurate measurement, high universality of parts, easy disassembly and transportation, and easy movement of scale body
The factory configuration is a high-precision pressure sensor, with a safe load of more than 150%
General size:
model | Range (optional) | Graduation value (customizable) | Platform size (matching) |
TCS-A31-4050 | 30kg~60kg | 0.001kg~0.02kg | 400×500mm |
TCS-A31-4050 | 75kg~300kg | 0.01kg~0.02kg | 400×500mm |
TCS-A31-4560 | 300kg~500kg | 0.05kg~0.1kg | 500×600mm |
TCS-A31-5060 | 300kg~600kg | 0.05kg~0.1kg | 500×600mm |
TCS-A31-6080 | 300kg~1000kg | 0.05kg~0.2kg | 600×800mm |
Note: different models , style , Scale platform size , The weighing range can be matched arbitrarily and customized .
Retest scale, stainless steel unpowered drum scale and powered drum scale
Range: 6-150kg, division value: 2g-50g, high-precision roller scale
Weighing ultra light yellow light, overweight red light, normal green light, with buzzer, and external control equipment
Explosion proof belt printed electronic scale, label printed explosion-proof platform scale
Intrinsically safe explosion-proof printing instrument, equipped with industrial explosion-proof platform scale
30kg to 1000kg range optional
It is used in places where chemical and pharmaceutical enterprises need to weigh and print
Electronic scale digital platform scale without weighing display instrument
The weighing platform can be directly connected to the computer with data transmission function
Communication protocol: RS232 / 485 communication or MODBUS-RTU format (bus + with address)
Weight data output rate 10 times / S
Industrial intelligent electronic scale Android electronic platform scale Configuration High
High quality Android weighing display, equipped with industrial high-quality weighing platform
It has the functions of weight counting, counting, printing, networking, data transmission, supporting secondary development and so on
30kg to 1000kg range is optional, data acquisition, transceiver, PLC connection, etc
Customized electronic scale, electronic scale, Internet of things
It has the functions of weight measurement, counting, pricing, printing, networking, data transmission and so on
液晶屏或触摸屏称重显示仪表，安卓系列可选，支持二次开发
The range of 30kg to 1000kg is optional, and multiple devices can be connected with WiFi
Bar code printing electronic platform scale, combined printing platform scale
There are weight counting, pricing, printing, networked data transmission, etc, Multiple functions and good quality
The range of 30kg to 1000kg can be selected, and the printing base paper can be recycled automatically
Self adhesive label printing, electronic platform scale, industrial platform scale
It is suitable for weighing, counting and printing of high-quality materials and setting of upper and lower limits
Single window weight meter or three window counting meter is optional, LED or LCD display
Built in RS232 interface can be connected to computer, printer, alarm light or external control equipment
The range of 6kg to 500kg can be selected, and dustproof, antimagnetic and antistatic are optional
Portable portable electronic platform scale, small electronic scale
Portable electronic scale with good quality
It is used in express delivery, logistics, medical waste recycling, waste classification and other occasions where it can be weighed everywhere
Built in RS232 or Bluetooth interface can be connected to computer, printer or external control equipment
6kg to 300kg range available
Mobile industrial platform scale, Customized movable scale
Integrated mobile handrail for scale body, instrument and vertical pole
LED or LCD display instrument
It can be used in various factory workshops where weighing is required and mobile weighing is often required
The range of 60kg to 300kg is available
High precision electronic platform scale, weighing 0 ~ 100kg, accuracy 1g
The maximum weighing capacity ranges from 6kg to 600kg, and the displayed division value ranges from 1g to 20g
Real high-precision scale, high display resolution, high-strength scale body and compact structure
Equipped with imported components and high-precision sensors, special customization and order production
High precision electronic platform scale, good quality and high precision
High quality weighing, counting, weight checking and upper and lower limit setting of various factory production lines
Single window weighing instrument or three window counting instrument can be selected, with LED or LCD display
The built-in RS232 interface can be used to connect computers, printers, alarm lights or external control devices
The range from 6kg to 500kg can be selected to replace several imported brands of electronic scales
