Shanghai Quanfu Industrial Co., Ltd

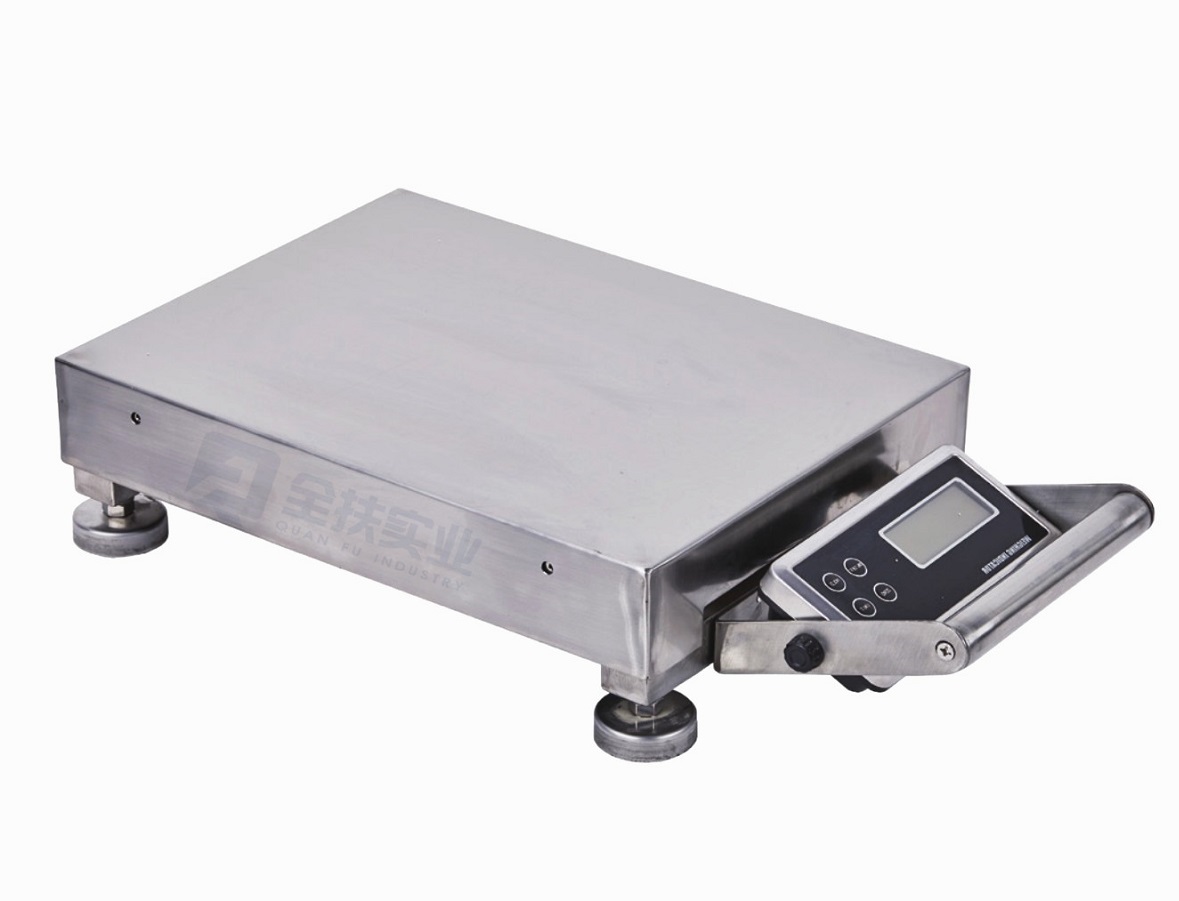

Tcs-x portable electronic platform scale and hand scale

Portable portable electronic platform scale, small electronic scale

Portable electronic scale with good quality

It is used in express delivery, logistics, medical waste recycling, waste classification and other occasions where it can be weighed everywhere

Built in RS232 or Bluetooth interface can be connected to computer, printer or external control equipment

6kg to 300kg range available


Product Details

Tcs-x series portable portable electronic platform scale is equipped with rechargeable battery as standard. It can be easily used in every corner of the factory. It has many functions and characteristics, making it outstanding among the weight scales at the same level. The weighing results are displayed quickly, which greatly improves the production efficiency. The simple setting method makes it easier to use, so as to ensure that your valuable time will not be wasted and improve the work efficiency.

Technical parameters:

Accuracy grade: III

Display: 6-bit LCD display with backlight

Operating environment: working temperature - 10 ℃ ~ + 40 ℃, relative humidity ≤ 85% R.H

Working power supply: 3 No. 5 dry batteries or DC6V adapter

Structural features:

It is assembled and welded with special fixture for national standard square pipe

All round shot blasting and plastic spraying treatment of carbon steel scale body

Comprehensive shot blasting treatment of 304 stainless steel scale body

430 stainless iron or 304 stainless steel scale pan

The angle of the instrument is adjustable and can be customized for different application requirements to quickly provide accurate weighing results.

Perfect weighing scale that can meet various industrial weighing needs.

General size:

model

Range (optional)

Division value (customizable)

Platform size (matching)

TCS-30

6kg/30kg

5g/10g

300×300mm

TCS-60

20kg/60kg

5g/10g/20g

300×400mm

TCS-150

50kg/150kg

10g/20g/50g

300×400mm

TCS-300

100kg/300kg

10g/20g/50g

400×500mm

Note: other specifications and sizes can be customized. The measuring range and table size can be matched arbitrarily. Carbon steel scale or all stainless steel can be selected.

Non standard customized products, order production & nbsp
