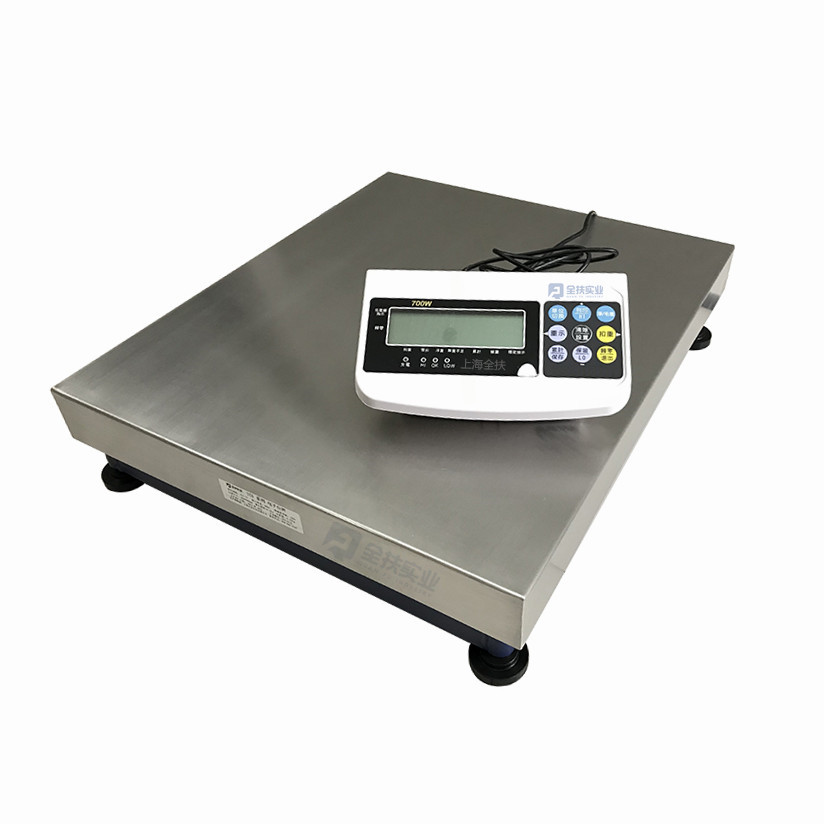

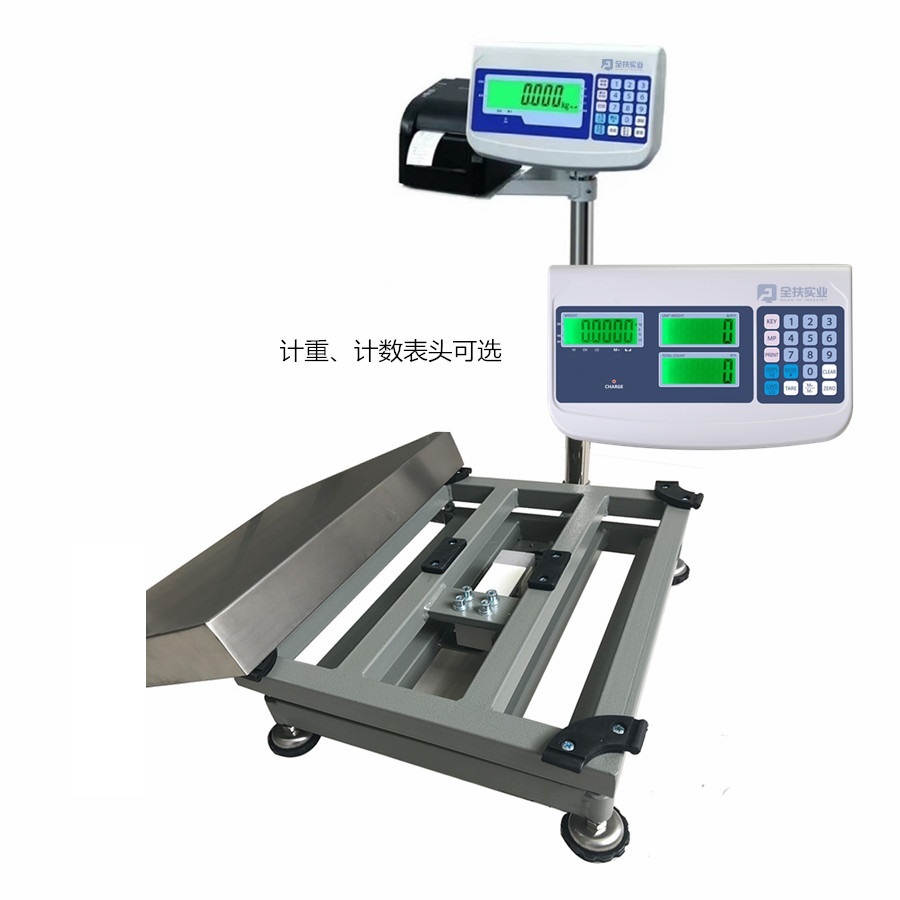

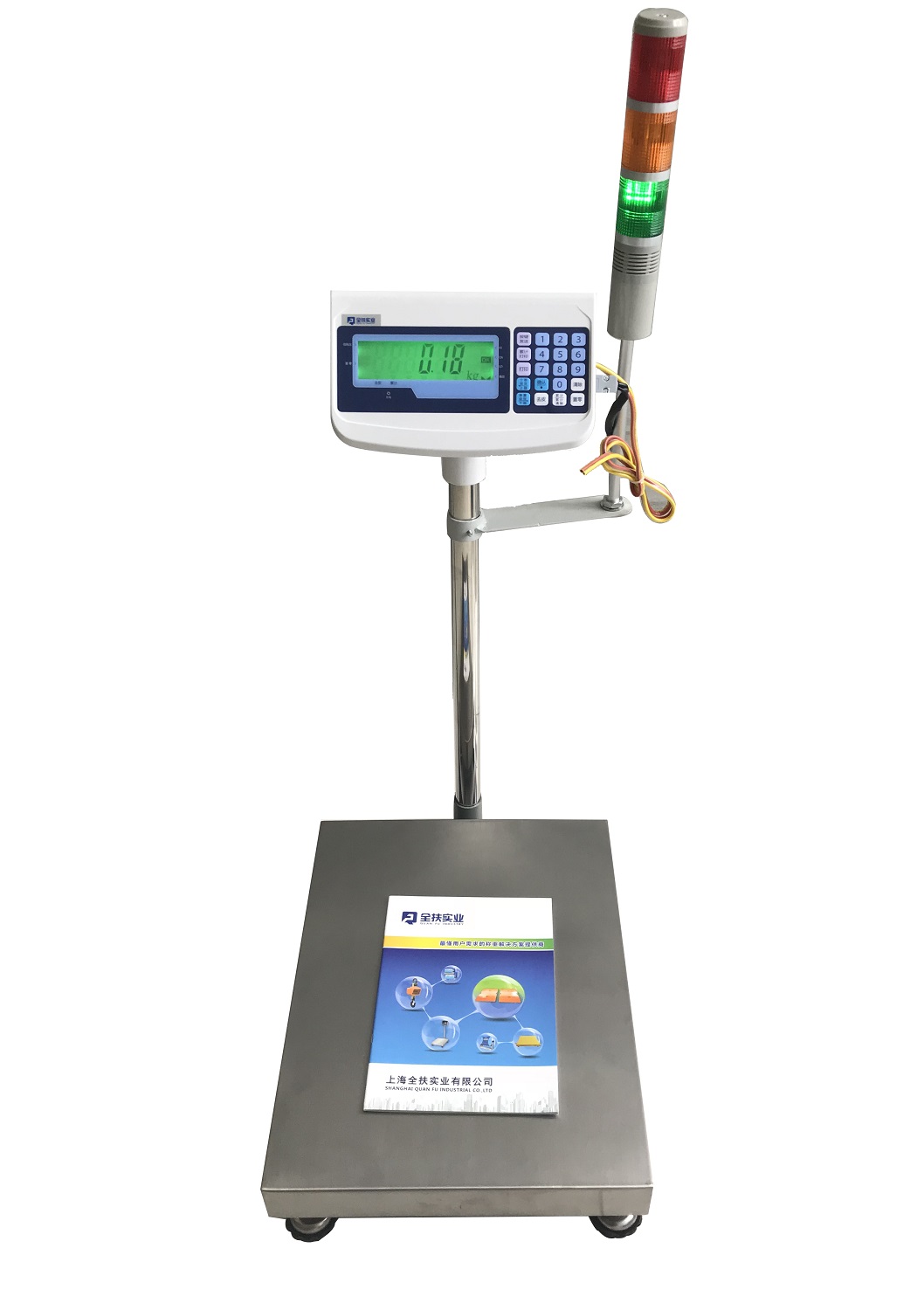

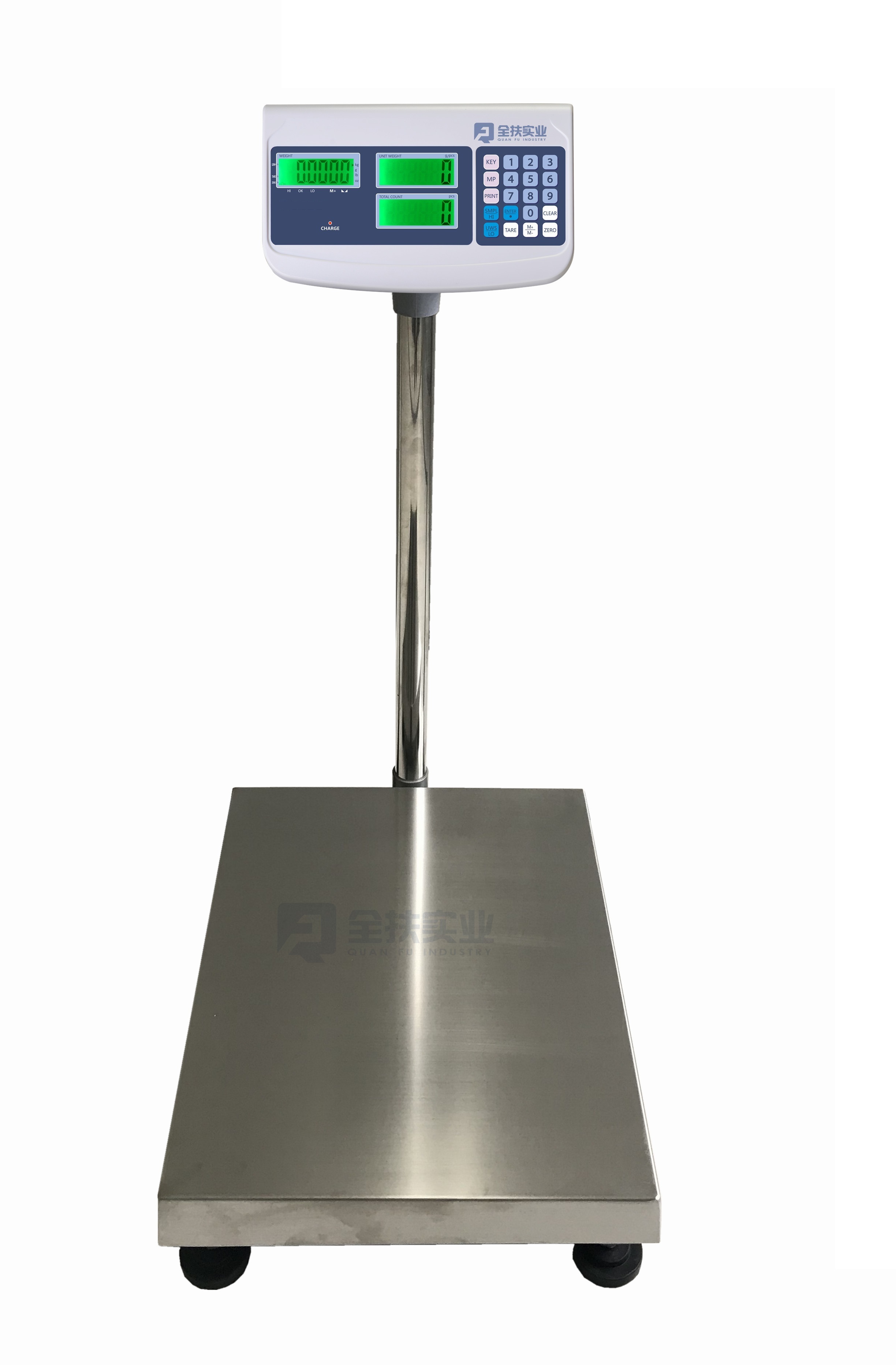

Current Position: Home > Company Products >TCS platform scale > TCS-700W electronic platform scale counter platform scale
High precision electronic platform scale, good quality and high precision
High quality weighing, counting, weight checking and upper and lower limit setting of various factory production lines

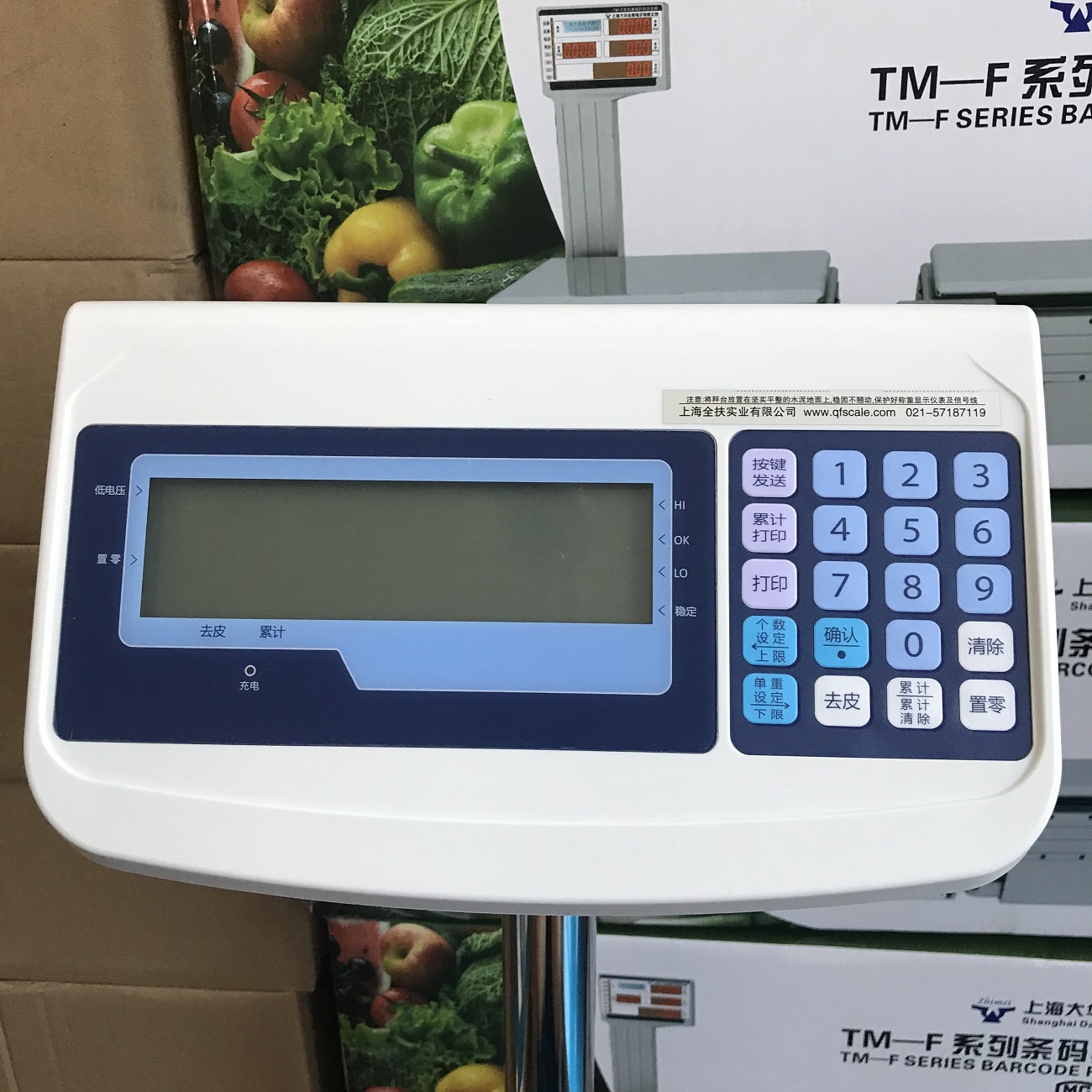

Single window weighing instrument or three window counting instrument can be selected, with LED or LCD display
The built-in RS232 interface can be used to connect computers, printers, alarm lights or external control devices
The range from 6kg to 500kg can be selected to replace several imported brands of electronic scales
TCS-700W series electronic platform scale is a medium and high precision electronic platform scale. Its high resolution and automatic optimization functions reduce weighing errors and ensure weighing accuracy and piece counting/counting performance. The three LCD backlights display the counting scales, which respectively display the total weight, unit weight and total quantity. The solid weighing platform is equipped with a weighing or counting head, which is highly effective in the factory's production, weighing and printing, packaging, inventory management and quantitative control.
Technical parameters:
Range: 30kg~600kg
Dividing value: 1g~100g
Instrument display: LED or LCD display
Instrument structure: ABS plastic shell
Scale platform size: 300 × 400mm~600 × 800mm (customizable)
Weighing platform material: carbon steel weighing frame, stainless steel platform (stainless steel weighing body is optional)
Operating ambient temperature: - 10 ℃~+40 ℃
Basic functions:
Weighing and counting, percentage calculation, weight accumulation, tare removal and zero setting
It can set the upper limit, standard and lower limit of three section weight warning, and has a group of memory functions
It can be charged and plugged in to avoid unstable power supply and power failure
Optional RS-232/485/USB interface, external computer, printer and three color warning light
Optional relay switch signal output, 4-20mA analog signal, etc
Features of weighing platform:
The surface of stainless steel countertop is polished and brushed, meeting the IP-65 waterproof standard. Four adjustable foot seats, and the round tube upright can be disassembled.
The reinforced carbon steel weighing platform is precisely welded to ensure the stability of high precision, the structure is tight and durable, and the pressure bearing capacity is strong.
High quality electrostatic spraying sand blasting treatment, strong corrosion resistance, excellent weighing platform strength, beautiful appearance and durability.
Compact structure, stable performance, accurate measurement, high universality of parts, easy disassembly, easy transportation, and easy movement of the scale body.
The factory configuration is high-precision pressure resistant sensor, with a safe load of more than 150%.
It can quickly provide accurate weighing results according to different application requirements.
It is a high-precision counting scale that can meet the weighing requirements of various industrial trade through weighing, counting, checking/counting and accumulation functions.
Normal size:
model | Range (optional) | Graduation value (Customizable) | Platform size (can be matched) |
TCS-60B-700W | 30kg~60kg | 1g~20g | 30x40~40x50cm |
TCS-100B-700W | 50kg~100kg | 2g~20g | 40x50~60x80cm |
TCS-150B-700W | 75kg~150kg | 5g~50g | 40x50~60x80cm |
TCS-300B-700W | 200kg~300kg | 5g~50g | 40x50~60x80cm |
TCS-500B-700W | 350kg~600kg | 10g~100g | 50x60~60x80cm |
Remark: Different measuring ranges and accuracies can be matched with weighing tables of any size. Various table sizes can be customized for order production.
