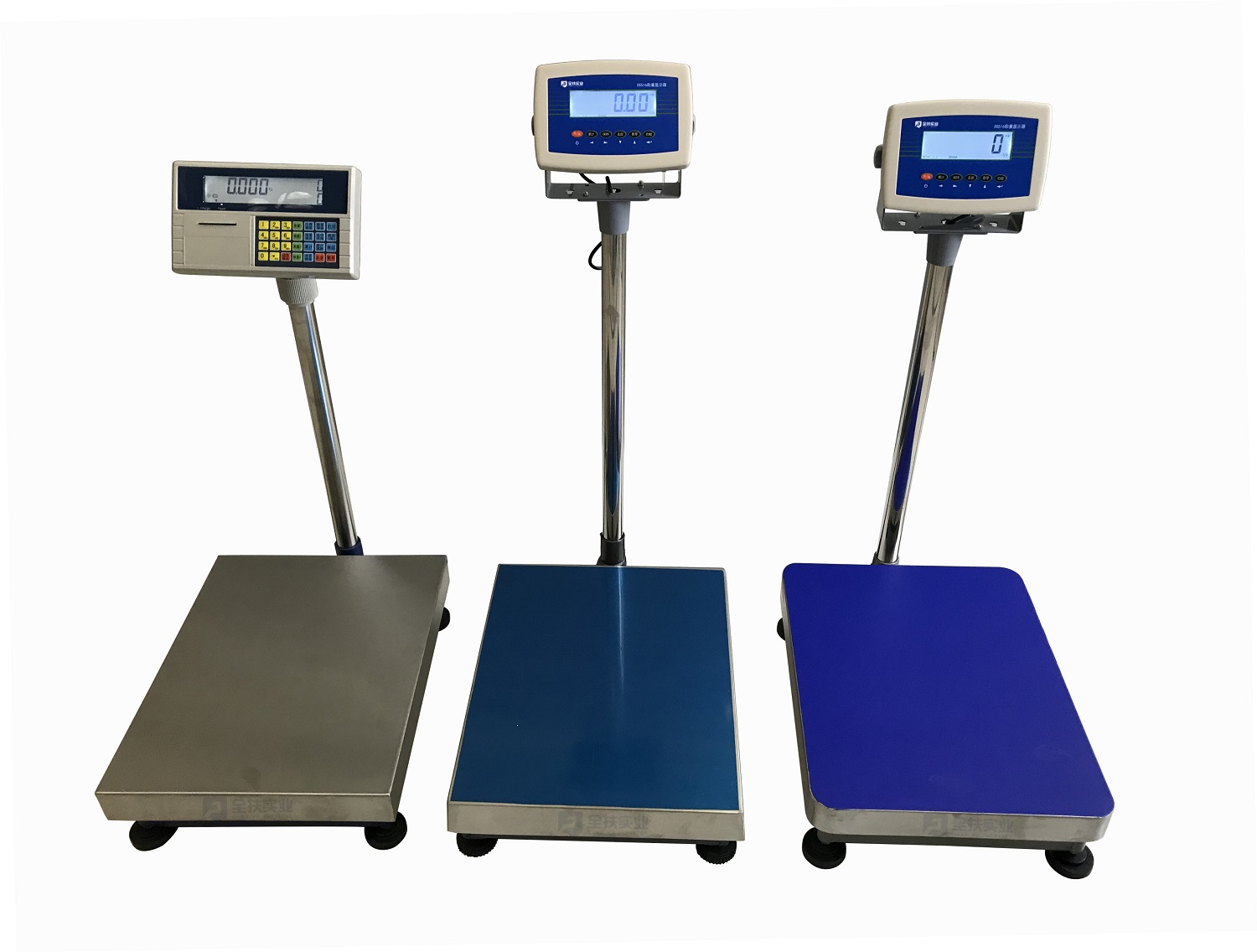

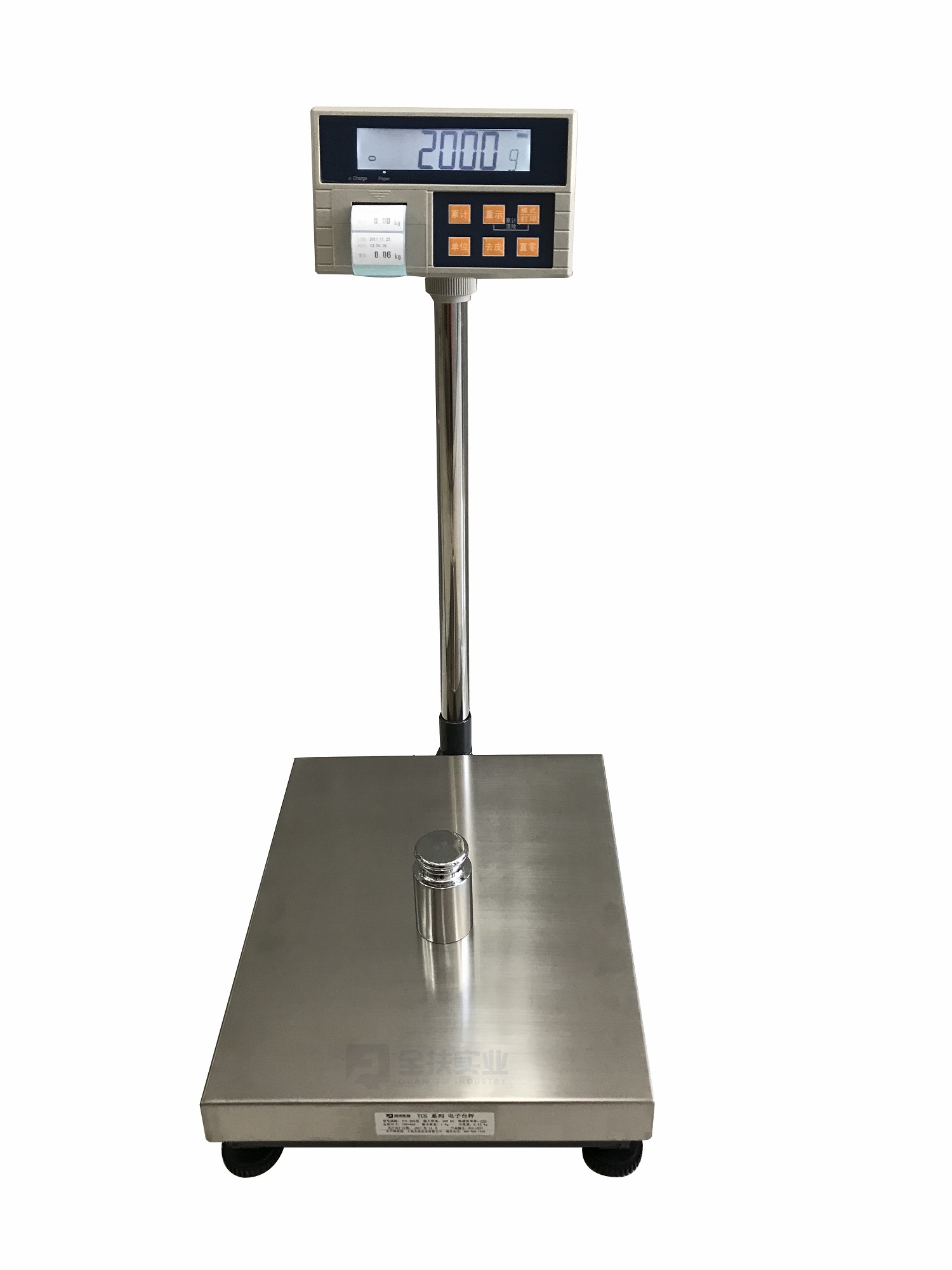

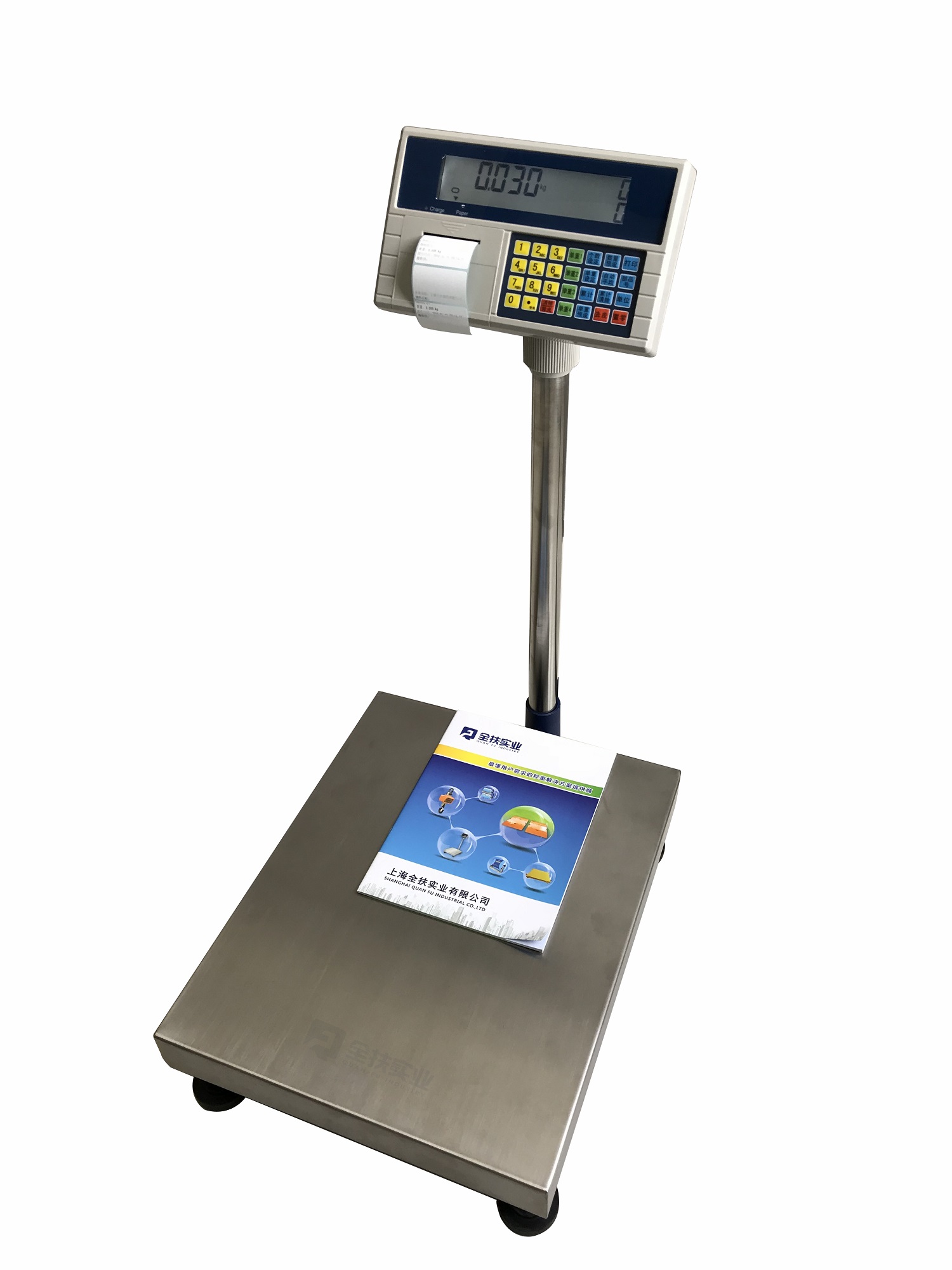

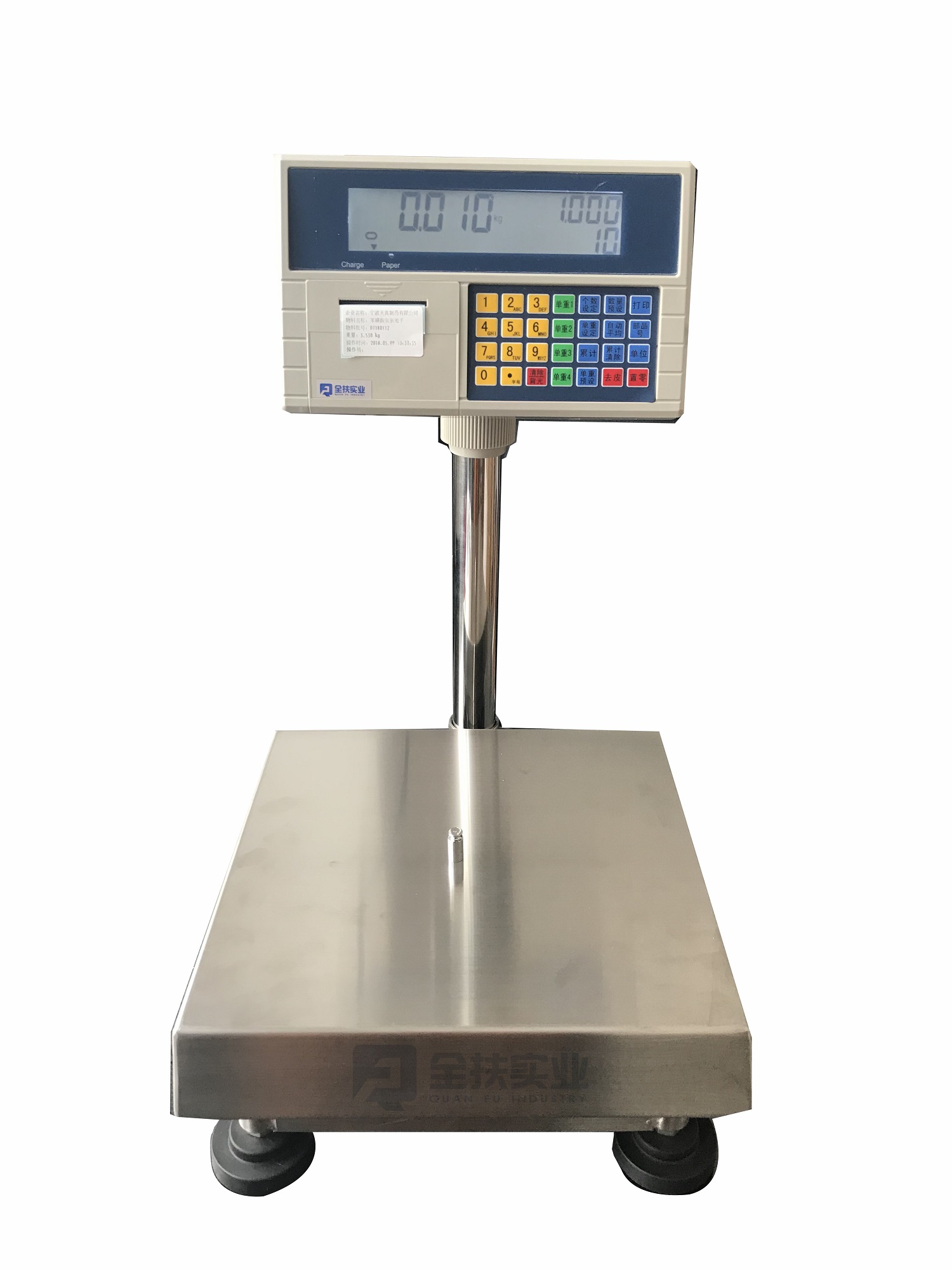

Current Position: Home > Company Products >TCS platform scale > Tcs-517 printing platform scale label
Self adhesive label printing, electronic platform scale, industrial platform scale
It is suitable for weighing, counting and printing of high-quality materials and setting of upper and lower limits
Single window weight meter or three window counting meter is optional, LED or LCD display
Built in RS232 interface can be connected to computer, printer, alarm light or external control equipment
The range of 6kg to 500kg can be selected, and dustproof, antimagnetic and antistatic are optional
Ds-517 series electronic Printing platform scale Integrated high-quality printing technology, simple integration with weighing system, easy installation and use, widely used in industrial production, packaging weighing printing, printing input labels for raw materials, printing weighing labels, as well as data transmission and printing of filling process and production line, so as to record weighing and process data reliably and easily. This printing platform scale has good quality, good quality and good stability.
Technical parameters:
Range: 6kg to 600kg
Division value: 1g to 100g
Instrument display: 6-digit LCD display
Scale platform size: 300 × 400mm~600 × 800mm (customizable)
Material of scale platform: carbon steel scale frame, stainless steel table or all stainless steel scale platform
Sensor: C3 or C6 single high-precision sensor
Operating ambient temperature: - 10 ℃ ~ + 40 ℃
Basic functions:
Multi function key operation (weight counting, counting, accumulation, peeling, zero setting)
Optional USB flash disk for storing weighing records

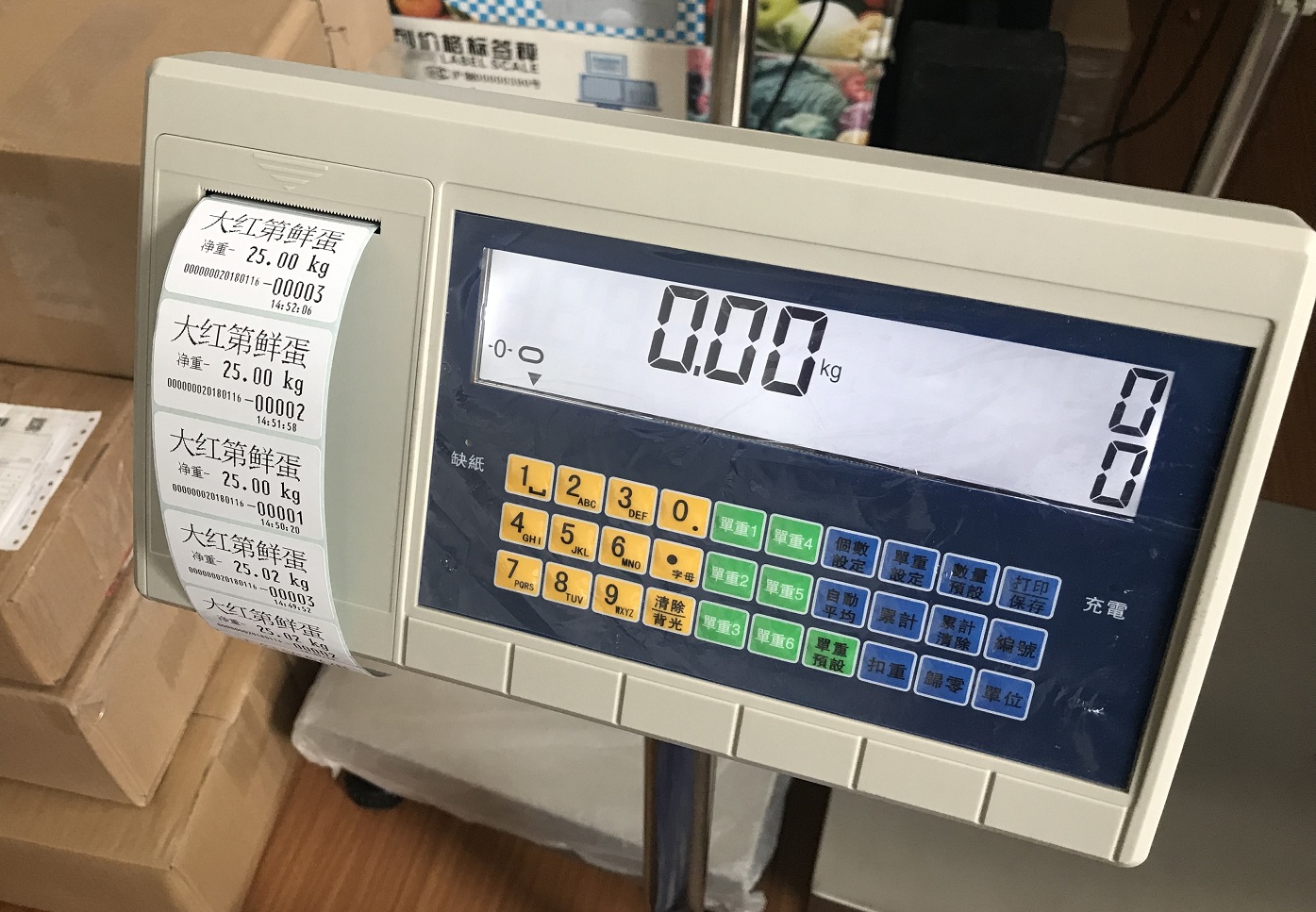

A variety of product label formats, support bar code printing, free editing of label format and filling printing
Multiple weighing modes are optional (automatic weighing printing mode, manual one touch weighing printing mode)
Edit and print user-defined fields: such as company name, contact information, production date, shelf life, product name, specification, model, product grade, product code bar code / QR code, weight, tare weight, gross weight, net weight, production machine number, employee number, executive standard, etc
Weighing, counting, pricing, percentage calculation, weight accumulation and other functions
The dual-purpose mode of charging and plug-in can be selected to avoid the trouble of unstable power supply and power failure
Optional RS-232 interface, external computer
Features of weighing platform:
Stainless steel table top: the surface is polished and brushed to meet the waterproof standard of IP-65
Four detachable round risers
Reinforced structure weighing platform, precision welding, ensuring high-precision stability, firm and durable structure and strong pressure bearing capacity
High quality electrostatic spraying and sand blasting treatment, strong corrosion resistance, excellent platform strength, beautiful appearance and durability
Compact structure, stable performance, accurate measurement, high universality of parts, easy disassembly and transportation, and easy movement of scale body
The factory configuration is a high-precision pressure sensor, with a safe load of more than 150%
Specification selection:
Product model | Weighing (optional) | Division value (customizable) | Platform size (matching) |
TCS-30 | 30kg/50kg | 2g/5g/10g | 300*400mm |
TCS-60 | 60kg/75kg | 2g/5g/10g | 400*500mm |
TCS-100 | 100kg/200kg | 5g/10g/20g | 400*500mm |
TCS-150 | 150kg/300kg | 5g/10g/20g | 400*500mm |
TCS-300 | 300kg/600kg | 10g/20g/50g | 600*800mm |
Note: more measuring range, accuracy and table size can be customized according to the actual use requirements
Retest scale, stainless steel unpowered drum scale and powered drum scale
Range: 6-150kg, division value: 2g-50g, high-precision roller scale
Weighing ultra light yellow light, overweight red light, normal green light, with buzzer, and external control equipment
Explosion proof belt printed electronic scale, label printed explosion-proof platform scale
Intrinsically safe explosion-proof printing instrument, equipped with industrial explosion-proof platform scale
30kg to 1000kg range optional
It is used in places where chemical and pharmaceutical enterprises need to weigh and print
Electronic scale digital platform scale without weighing display instrument
The weighing platform can be directly connected to the computer with data transmission function
Communication protocol: RS232 / 485 communication or MODBUS-RTU format (bus + with address)
Weight data output rate 10 times / S
Industrial intelligent electronic scale Android electronic platform scale Configuration High
High quality Android weighing display, equipped with industrial high-quality weighing platform
It has the functions of weight counting, counting, printing, networking, data transmission, supporting secondary development and so on
30kg to 1000kg range is optional, data acquisition, transceiver, PLC connection, etc
Customized electronic scale, electronic scale, Internet of things
It has the functions of weight measurement, counting, pricing, printing, networking, data transmission and so on
液晶屏或触摸屏称重显示仪表，安卓系列可选，支持二次开发
The range of 30kg to 1000kg is optional, and multiple devices can be connected with WiFi
Bar code printing electronic platform scale, combined printing platform scale
There are weight counting, pricing, printing, networked data transmission, etc, Multiple functions and good quality
The range of 30kg to 1000kg can be selected, and the printing base paper can be recycled automatically
Self adhesive label printing, electronic platform scale, industrial platform scale
It is suitable for weighing, counting and printing of high-quality materials and setting of upper and lower limits
Single window weight meter or three window counting meter is optional, LED or LCD display
Built in RS232 interface can be connected to computer, printer, alarm light or external control equipment
The range of 6kg to 500kg can be selected, and dustproof, antimagnetic and antistatic are optional
Portable portable electronic platform scale, small electronic scale
Portable electronic scale with good quality
It is used in express delivery, logistics, medical waste recycling, waste classification and other occasions where it can be weighed everywhere
Built in RS232 or Bluetooth interface can be connected to computer, printer or external control equipment
6kg to 300kg range available
Mobile industrial platform scale, Customized movable scale
Integrated mobile handrail for scale body, instrument and vertical pole
LED or LCD display instrument
It can be used in various factory workshops where weighing is required and mobile weighing is often required
The range of 60kg to 300kg is available
High precision electronic platform scale, weighing 0 ~ 100kg, accuracy 1g
The maximum weighing capacity ranges from 6kg to 600kg, and the displayed division value ranges from 1g to 20g
Real high-precision scale, high display resolution, high-strength scale body and compact structure
Equipped with imported components and high-precision sensors, special customization and order production
High precision electronic platform scale, good quality and high precision
High quality weighing, counting, weight checking and upper and lower limit setting of various factory production lines
Single window weighing instrument or three window counting instrument can be selected, with LED or LCD display
The built-in RS232 interface can be used to connect computers, printers, alarm lights or external control devices
The range from 6kg to 500kg can be selected to replace several imported brands of electronic scales
