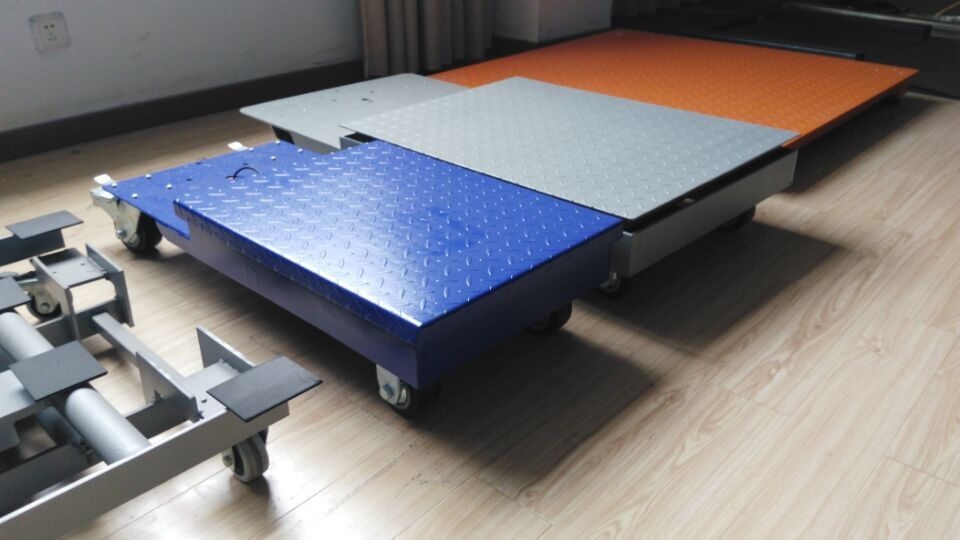

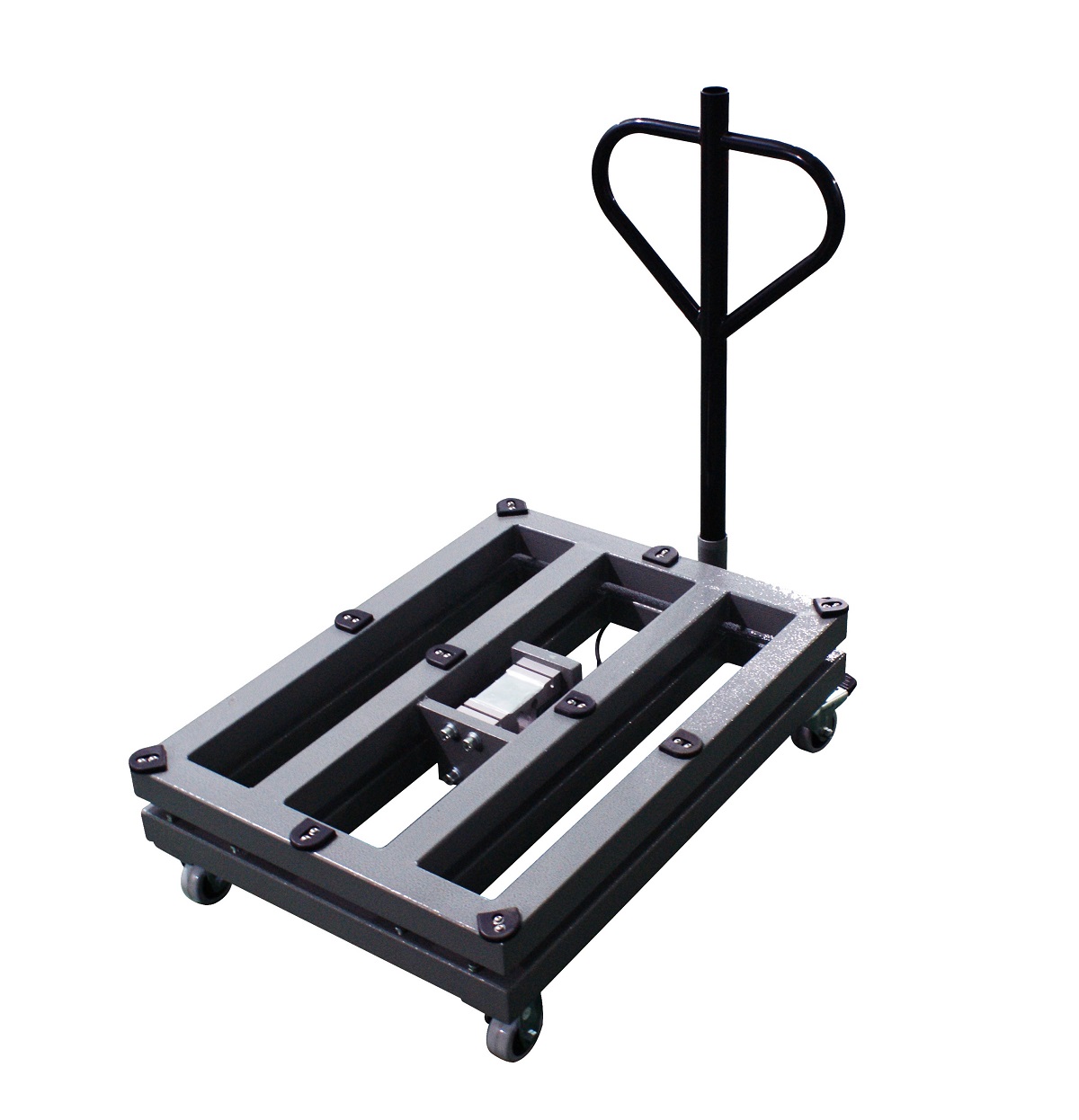

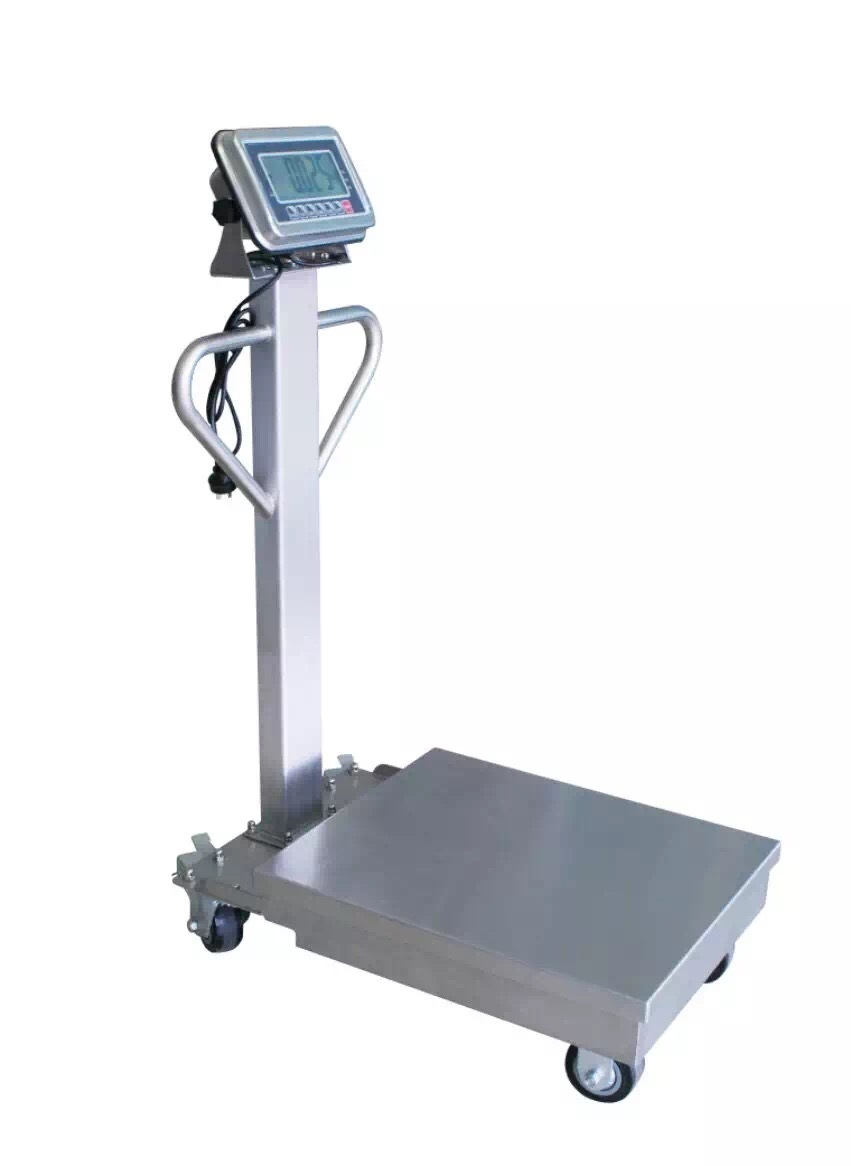

Current Position: Home > Company Products >TCS platform scale > Tcs-y mobile electronic platform scale
Mobile industrial platform scale, Customized movable scale
Integrated mobile handrail for scale body, instrument and vertical pole
LED or LCD display instrument
It can be used in various factory workshops where weighing is required and mobile weighing is often required
The range of 60kg to 300kg is available
Tcs-y series mobile electronic platform scale, stainless steel scale pan, carbon steel scale frame, plastic spraying treatment on the surface, equipped with aluminum dynamic weighing sensor and dynamic weighing instrument, high-quality mobile structure ensures the strength of the scale body and the stability of weighing.
Technical parameters:
Range: 30kg to 300kg
Division value: 5g / 10g / 20g / 50g
Instrument display: 6-digit LED or LCD display
Instrument structure: ABS plastic shell (built-in lead-acid battery 4-6V)
Scale platform size: 300 × 400mm~600 × 800mm (customizable)
Material of scale platform: carbon steel scale frame, stainless steel table or all stainless steel scale platform
Operating ambient temperature: - 10 ℃ ~ + 40 ℃
Basic functions:
Zero setting, peeling, weight counting, weight checking and counting
Three integral A / D conversion principle, 40 times / s a / D conversion speed
Operating temperature: 0 ℃ ~ 40 ℃
Storage and transportation temperature: - 25 ℃ ~ + 55 ℃
Relative humidity: ≤ 85% RH
The rechargeable battery is sufficient and can be used continuously for more than 50 hours
Unit of measurement: kg / lb conversion
Optional RS-232 serial continuous output communication interface; Bluetooth output can be added.
Features of weighing platform:
Stainless steel table top: the surface is polished and brushed to meet the waterproof standard of IP-65
4 adjustable moving wheels (2 universal wheels and 2 with brakes), and the round pipe upright rod can be removed

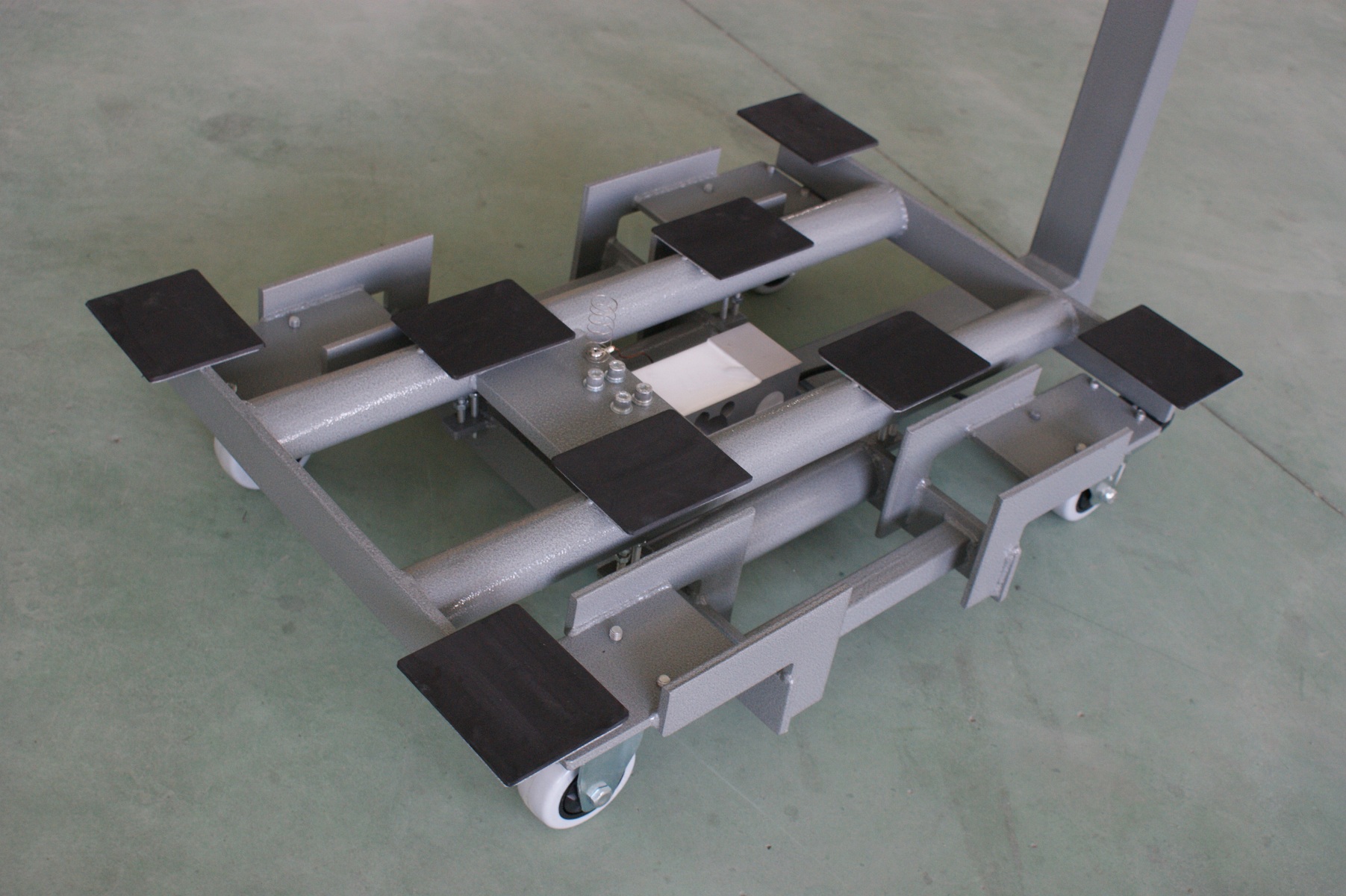

Reinforced structure weighing platform, precision welding, ensuring high-precision stability, firm and durable structure and strong pressure bearing capacity
High quality electrostatic spraying and sand blasting treatment, strong corrosion resistance, excellent platform strength, beautiful appearance and durability
Compact structure, stable performance, accurate measurement, high universality of parts, easy disassembly and transportation, and easy movement of scale body
The factory configuration is a high-precision pressure sensor, with a safe load of more than 150%
General size:
model | Range (optional) | Division value (customizable) | Platform size (matching) |
TCS-50 | 20kg/50kg | 5g/10g | 300×400mm |
TCS-60 | 30kg/60kg | 5g/10g/20g | 400×500mm |
TCS-150 | 100kg/150kg | 10g/20g | 400×500mm |
TCS-300 | 200kg/300kg | 20g/50g | 5 00×700mm |
Remarks: mobile electronic platform scales with different styles and more specifications can be customized according to different industrial applications
The measuring range and table size can be matched arbitrarily. Carbon steel scale or all stainless steel scale can be selected
It can be equipped with imported configuration and customized high-end mobile electronic platform scale
Retest scale, stainless steel unpowered drum scale and powered drum scale
Range: 6-150kg, division value: 2g-50g, high-precision roller scale
Weighing ultra light yellow light, overweight red light, normal green light, with buzzer, and external control equipment
Explosion proof belt printed electronic scale, label printed explosion-proof platform scale
Intrinsically safe explosion-proof printing instrument, equipped with industrial explosion-proof platform scale
30kg to 1000kg range optional
It is used in places where chemical and pharmaceutical enterprises need to weigh and print
Electronic scale digital platform scale without weighing display instrument
The weighing platform can be directly connected to the computer with data transmission function
Communication protocol: RS232 / 485 communication or MODBUS-RTU format (bus + with address)
Weight data output rate 10 times / S
Industrial intelligent electronic scale Android electronic platform scale Configuration High
High quality Android weighing display, equipped with industrial high-quality weighing platform
It has the functions of weight counting, counting, printing, networking, data transmission, supporting secondary development and so on
30kg to 1000kg range is optional, data acquisition, transceiver, PLC connection, etc
Customized electronic scale, electronic scale, Internet of things
It has the functions of weight measurement, counting, pricing, printing, networking, data transmission and so on
液晶屏或触摸屏称重显示仪表，安卓系列可选，支持二次开发
The range of 30kg to 1000kg is optional, and multiple devices can be connected with WiFi
Bar code printing electronic platform scale, combined printing platform scale
There are weight counting, pricing, printing, networked data transmission, etc, Multiple functions and good quality
The range of 30kg to 1000kg can be selected, and the printing base paper can be recycled automatically
Self adhesive label printing, electronic platform scale, industrial platform scale
It is suitable for weighing, counting and printing of high-quality materials and setting of upper and lower limits
Single window weight meter or three window counting meter is optional, LED or LCD display
Built in RS232 interface can be connected to computer, printer, alarm light or external control equipment
The range of 6kg to 500kg can be selected, and dustproof, antimagnetic and antistatic are optional
Portable portable electronic platform scale, small electronic scale
Portable electronic scale with good quality
It is used in express delivery, logistics, medical waste recycling, waste classification and other occasions where it can be weighed everywhere
Built in RS232 or Bluetooth interface can be connected to computer, printer or external control equipment
6kg to 300kg range available
Mobile industrial platform scale, Customized movable scale
Integrated mobile handrail for scale body, instrument and vertical pole
LED or LCD display instrument
It can be used in various factory workshops where weighing is required and mobile weighing is often required
The range of 60kg to 300kg is available
High precision electronic platform scale, weighing 0 ~ 100kg, accuracy 1g
The maximum weighing capacity ranges from 6kg to 600kg, and the displayed division value ranges from 1g to 20g
Real high-precision scale, high display resolution, high-strength scale body and compact structure
Equipped with imported components and high-precision sensors, special customization and order production
High precision electronic platform scale, good quality and high precision
High quality weighing, counting, weight checking and upper and lower limit setting of various factory production lines
Single window weighing instrument or three window counting instrument can be selected, with LED or LCD display
The built-in RS232 interface can be used to connect computers, printers, alarm lights or external control devices
The range from 6kg to 500kg can be selected to replace several imported brands of electronic scales
