Current Position: Home > Company Products >TCS platform scale > Tcs-zn industrial intelligent platform scale Android electronic scale

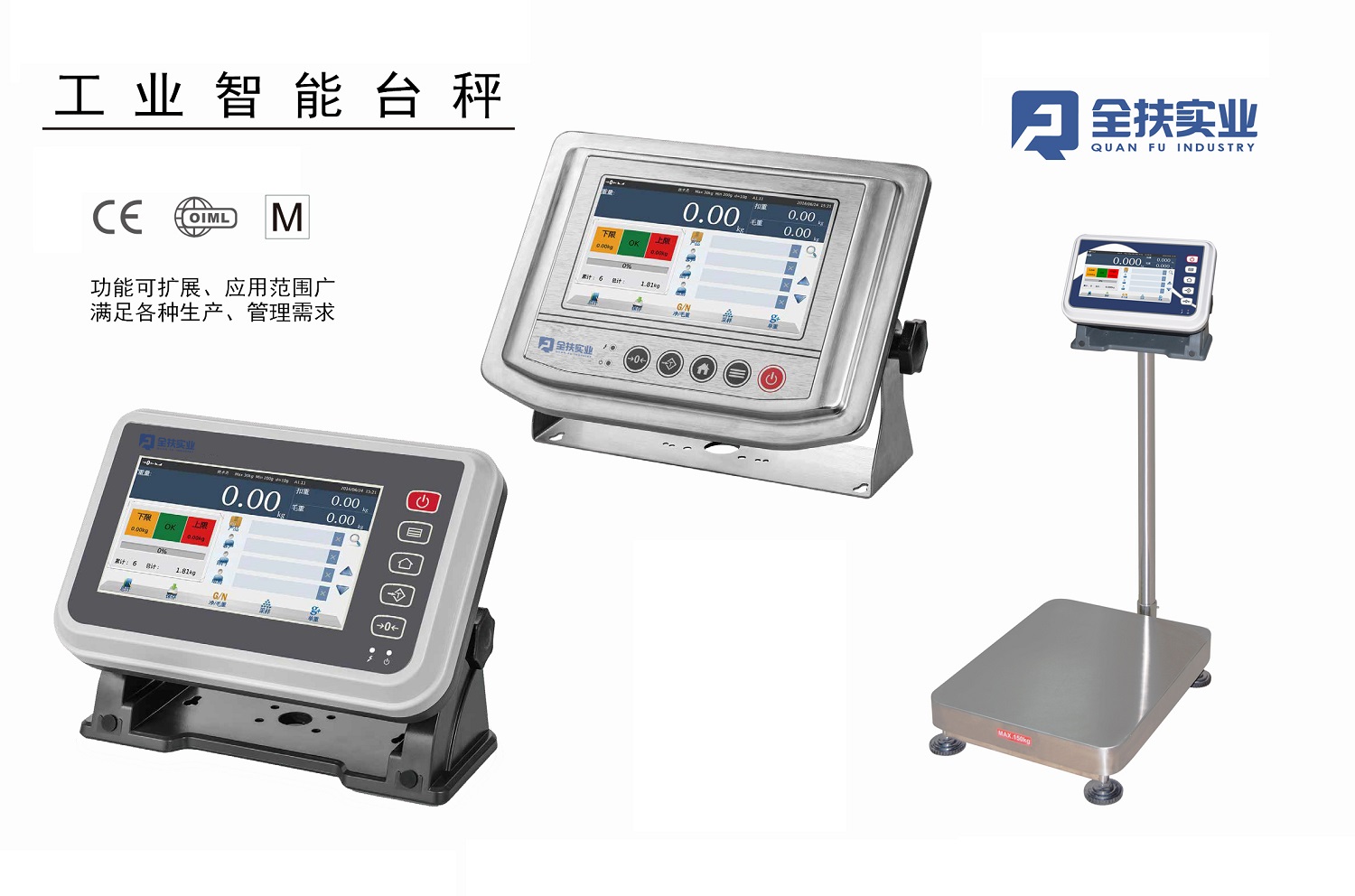

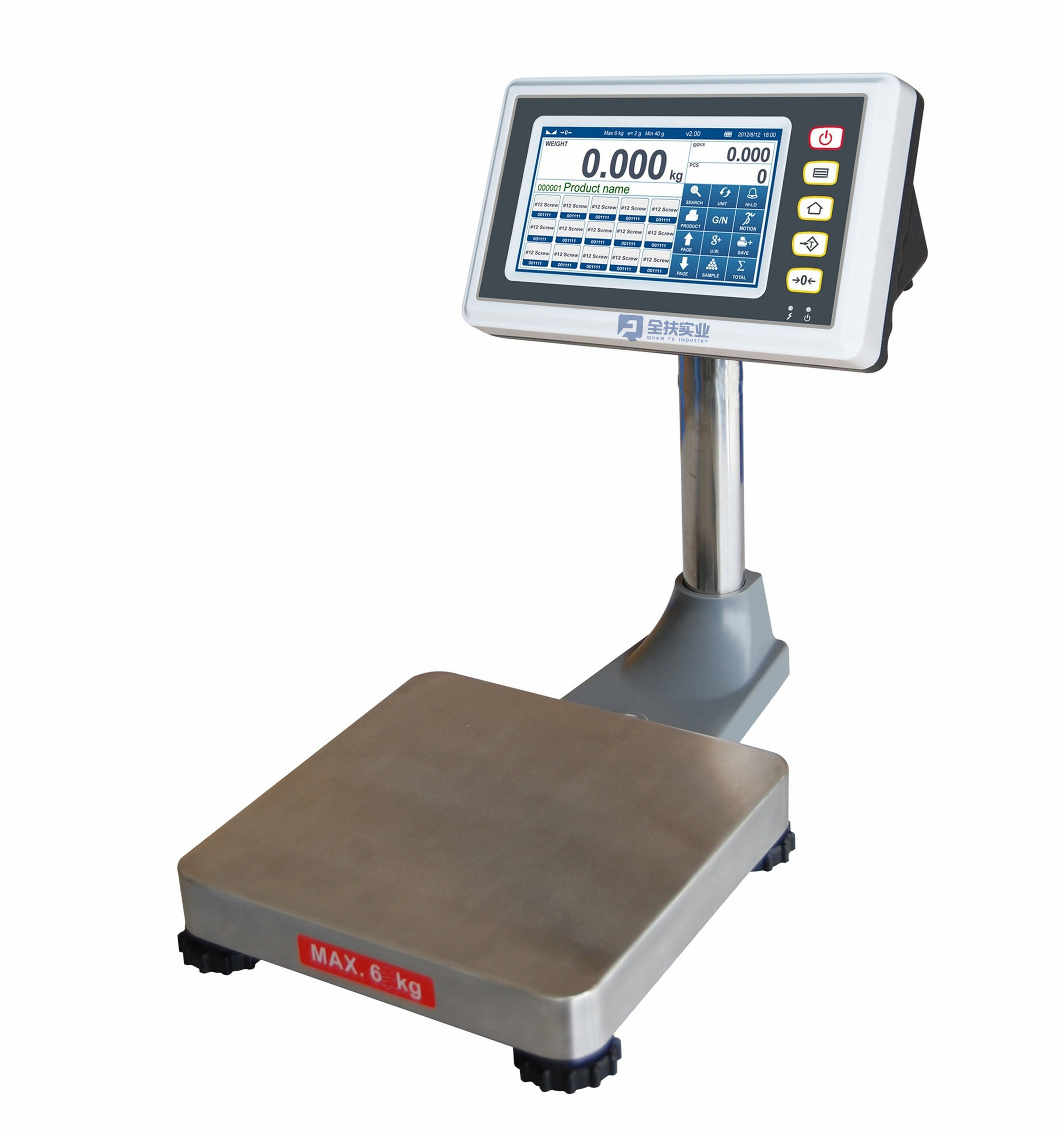

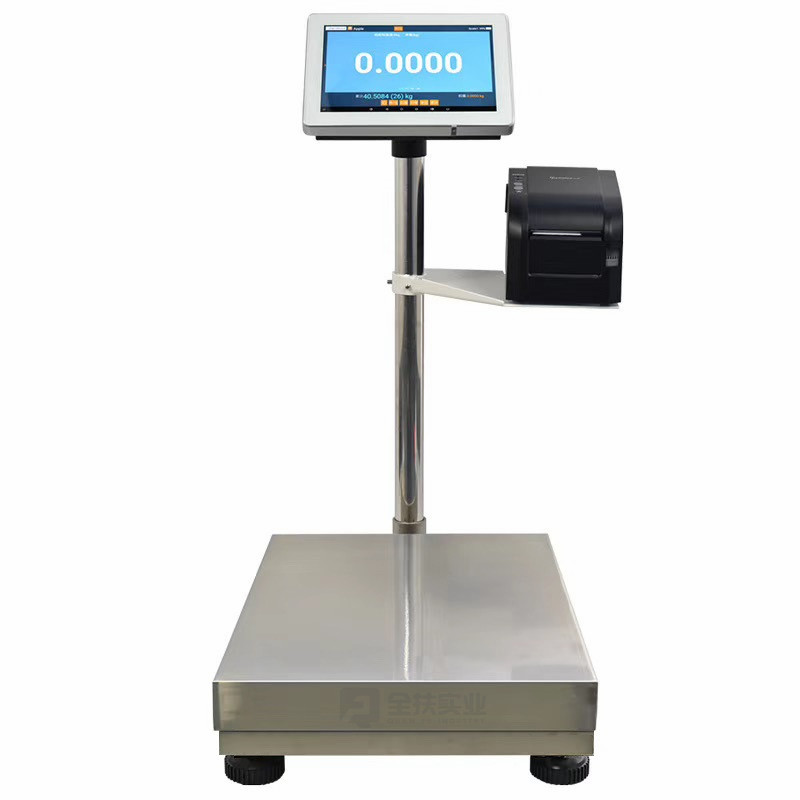

Industrial intelligent electronic scale Android electronic platform scale Configuration High
High quality Android weighing display, equipped with industrial high-quality weighing platform
It has the functions of weight counting, counting, printing, networking, data transmission, supporting secondary development and so on
30kg to 1000kg range is optional, data acquisition, transceiver, PLC connection, etc
Tcs-zn series Industrial intelligent platform scale , intelligent Internet of things weighing equipment, industrial intelligent platform scale developed based on Android system, is a relatively perfect intelligent weighing product in the field of intelligent weighing in China at present; Based on the collection of weight data, it is applicable to many industries, especially those with high requirements for weight supervision. Such as catering, waste classification, new retail, intelligent storage, medical treatment, food processing, chemical industry and other complex industrial weighing occasions.
Technical parameters:
Maximum range: 6kg to 1000kg
Display division value：1g~100g
Instrument display: 7-inch touch screen display
Instrument structure: plastic or stainless steel shell, wall bracket or pole bracket, which can also be used on the table
Operating system: equipped with Linux embedded operating system or Android 8.1 open system (SDK can be provided to customers for secondary development)
Power supply: AC adapter 100 ~ 240V or 12v2500ma built-in rechargeable battery
Scale platform size: 300 × 400mm~600 × 800mm (customizable)
Weighing platform material: high quality carbon steel weighing frame, stainless steel countertop or all stainless steel weighing platform
Operating ambient temperature: - 10 ℃ ~ + 40 ℃
Basic functions:
Zero setting, peeling, accumulation, weight counting, counting, weight checking, sorting, etc
16g large capacity memory can store a large amount of commodity data and weighing data, and can import data to the scale or export the weighing record of the scale through USB
Use RS232 or network connection to industrial printer to customize and edit print format (label and bill format)
It supports importing or exporting product data and printing format through USB flash disk
It can also conduct synchronous summary of remote data through WiFi networking
Equipped with background management software, edit diversified information, preset, issue and update commodity information and generate reports, and support ERP docking
The carbon steel weighing frame and stainless steel platform scale meet the waterproof standard of ip-68, and the all stainless steel waterproof platform scale can meet the waterproof standard of IP68
Fully sealed waterproof intelligent electronic platform scale has high waterproof grade. 4 adjustable foot seats, and the round pipe upright rod can be disassembled.
Reinforced structure weighing platform, precision welding, ensuring high-precision stability, firm and durable structure and strong pressure bearing capacity.
High quality carbon steel scale body is electrostatically sprayed and sandblasted, with strong corrosion resistance, excellent scale platform strength, beautiful appearance and durability.
Compact structure, stable performance, accurate measurement, high universality of parts, easy disassembly and transportation, and easy movement of scale body.
The factory configuration is a high-precision pressure sensor, with a safe load of more than 150%.
Specification selection:
model | TCS-ZN/TCS-ZS |
Instrument housing | ABS plastic / 304 stainless steel |
Maximum weighing | 6kg/15kg/30kg/60kg/150kg/300kg/600kg/1t |
Display division value | 1g/2g/5g/10g/20g/50g/100g/200g |
Platform size | 30*30cm/30*40cm/40*50cm/50*60cm/60*80cm/1*1m |
External equipment | Camera, scanning gun, bill printer, label printer, alarm light, large screen, PLC, computer, RFID, IC card reader, keyboard and mouse, etc |
Interface | RS-232, USB, Ethernet port, Bluetooth, HDMI Optional 4G module and WiFi module |
Sensor connector | 9-pin serial port or 5-core aviation head |
Note: more specifications and sizes can be customized. The range, accuracy and platform size can be matched arbitrarily. The materials of carbon steel scale or all stainless steel scale are optional
Retest scale, stainless steel unpowered drum scale and powered drum scale
Range: 6-150kg, division value: 2g-50g, high-precision roller scale
Weighing ultra light yellow light, overweight red light, normal green light, with buzzer, and external control equipment
Explosion proof belt printed electronic scale, label printed explosion-proof platform scale
Intrinsically safe explosion-proof printing instrument, equipped with industrial explosion-proof platform scale
30kg to 1000kg range optional
It is used in places where chemical and pharmaceutical enterprises need to weigh and print
Electronic scale digital platform scale without weighing display instrument
The weighing platform can be directly connected to the computer with data transmission function
Communication protocol: RS232 / 485 communication or MODBUS-RTU format (bus + with address)
Weight data output rate 10 times / S
Industrial intelligent electronic scale Android electronic platform scale Configuration High
High quality Android weighing display, equipped with industrial high-quality weighing platform
It has the functions of weight counting, counting, printing, networking, data transmission, supporting secondary development and so on
30kg to 1000kg range is optional, data acquisition, transceiver, PLC connection, etc
Customized electronic scale, electronic scale, Internet of things
It has the functions of weight measurement, counting, pricing, printing, networking, data transmission and so on
液晶屏或触摸屏称重显示仪表，安卓系列可选，支持二次开发
The range of 30kg to 1000kg is optional, and multiple devices can be connected with WiFi
Bar code printing electronic platform scale, combined printing platform scale
There are weight counting, pricing, printing, networked data transmission, etc, Multiple functions and good quality
The range of 30kg to 1000kg can be selected, and the printing base paper can be recycled automatically
Self adhesive label printing, electronic platform scale, industrial platform scale
It is suitable for weighing, counting and printing of high-quality materials and setting of upper and lower limits
Single window weight meter or three window counting meter is optional, LED or LCD display
Built in RS232 interface can be connected to computer, printer, alarm light or external control equipment
The range of 6kg to 500kg can be selected, and dustproof, antimagnetic and antistatic are optional
Portable portable electronic platform scale, small electronic scale
Portable electronic scale with good quality
It is used in express delivery, logistics, medical waste recycling, waste classification and other occasions where it can be weighed everywhere
Built in RS232 or Bluetooth interface can be connected to computer, printer or external control equipment
6kg to 300kg range available
Mobile industrial platform scale, Customized movable scale
Integrated mobile handrail for scale body, instrument and vertical pole
LED or LCD display instrument
It can be used in various factory workshops where weighing is required and mobile weighing is often required
The range of 60kg to 300kg is available
High precision electronic platform scale, weighing 0 ~ 100kg, accuracy 1g
The maximum weighing capacity ranges from 6kg to 600kg, and the displayed division value ranges from 1g to 20g
Real high-precision scale, high display resolution, high-strength scale body and compact structure
Equipped with imported components and high-precision sensors, special customization and order production
High precision electronic platform scale, good quality and high precision
High quality weighing, counting, weight checking and upper and lower limit setting of various factory production lines
Single window weighing instrument or three window counting instrument can be selected, with LED or LCD display
The built-in RS232 interface can be used to connect computers, printers, alarm lights or external control devices
The range from 6kg to 500kg can be selected to replace several imported brands of electronic scales
