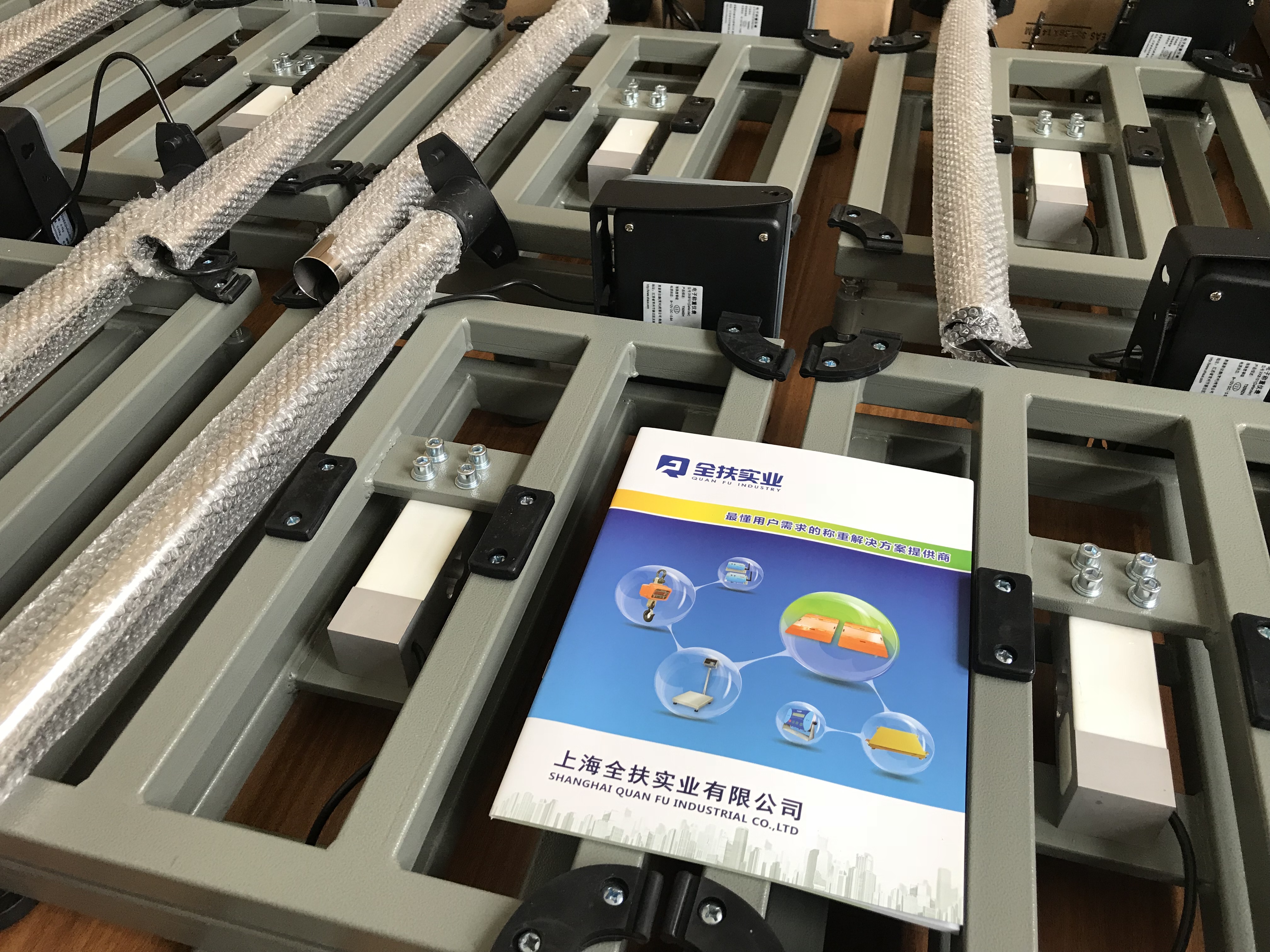

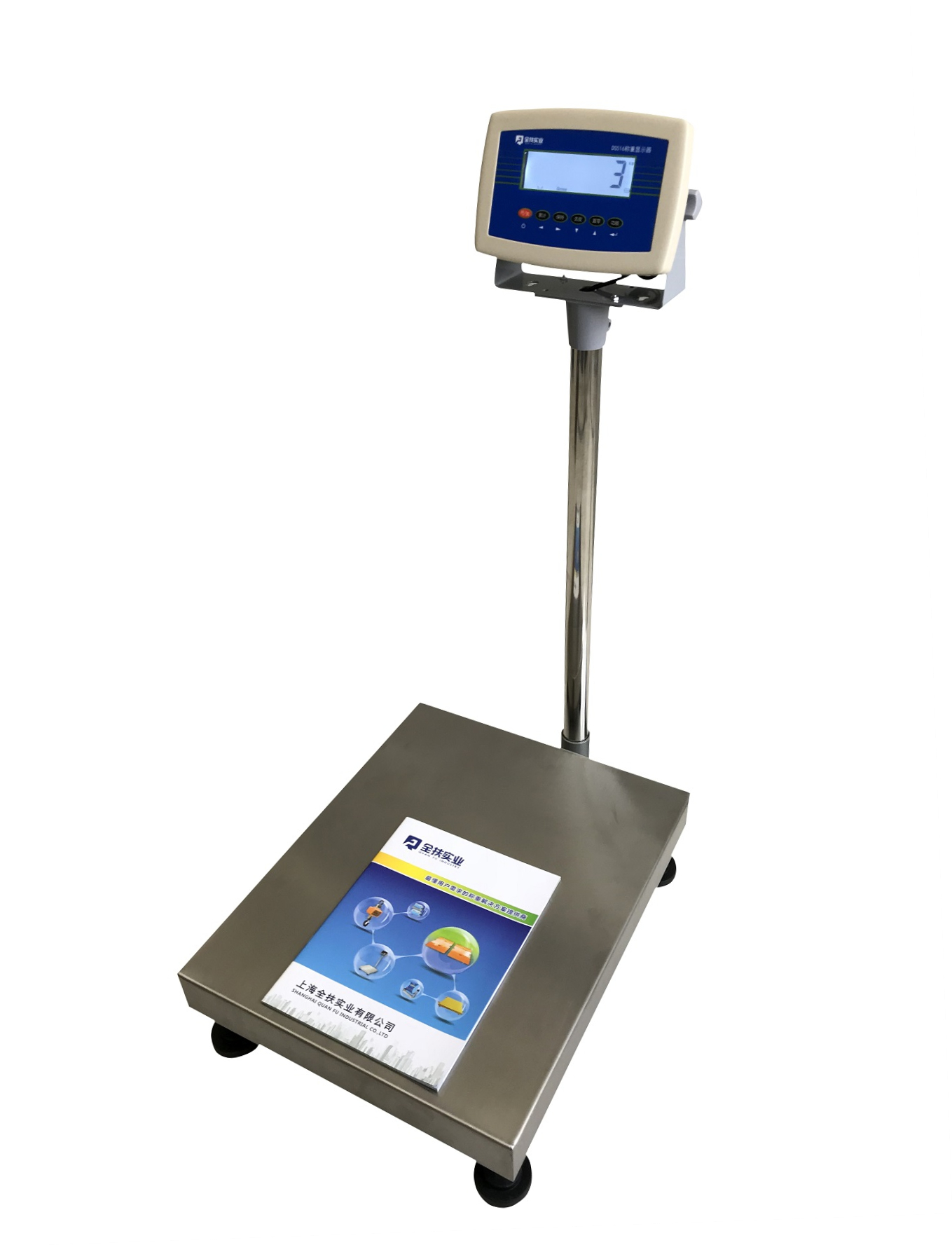

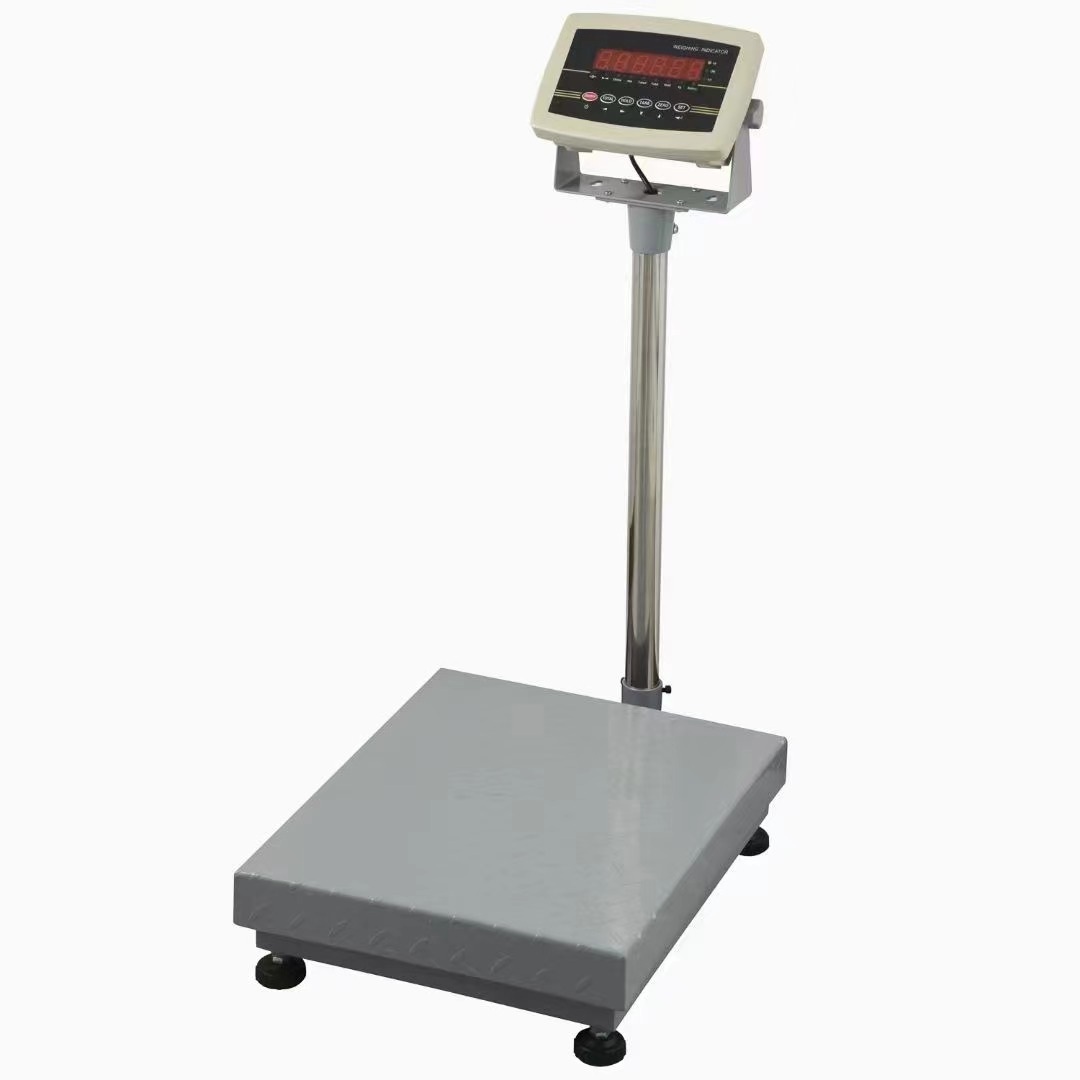

Tcs-a electronic platform scale

Basic industrial platform scale, simple operation and multiple functions

It can be used for direct weighing, counting, basic weight checking and classification in dry environment

LED or LCD display instrument can be configured with RS232 interface to communicate with printer or computer

6kg to 500kg range available

Product Details

Tcs-a series Electronic platform scale The scale frame is assembled and welded by standard high-quality carbon steel square pipe, and is equipped with high-precision square hole sensor and high-precision weighing instrument to form a high-precision and economic weighing system. Printers and weighing software can be selected. The scale body has the characteristics of solid structure, good rigidity, high measurement accuracy and strong long-term stability. It is widely used in industrial production enterprises, especially for weighing occasions with impact force in various metal products enterprises.

Technical parameters:

Accuracy class: III

Weighing display: 6-digit LED or LCD with backlight

Measuring range: 15kg / 30kg / 50kg / 60kg / 150kg / 300kg / 500kg

Division value: 1g / 2G / 5G / 10g / 20g / 50g / 100g

Scale platform size: 300 * 400mm, 400 * 500, 600 * 800mm (customizable)

Operating environment: working temperature - 10 ℃ ~ + 40 ℃, relative humidity ≤ 85% R.H

Working power supply: ac110 ~ 220V 50 / 60Hz, built-in lead-acid battery dc4-6v / 4ah

Basic functions:

It has the functions of zero setting, weight removing, weight accumulating and weighing

Optional RS232 / 485 communication interface, external computer or printer

Optional 4-20mA analog output or relay output

Optional waterproof and explosion-proof type

Optional mobile mechanism

Features of weighing platform:

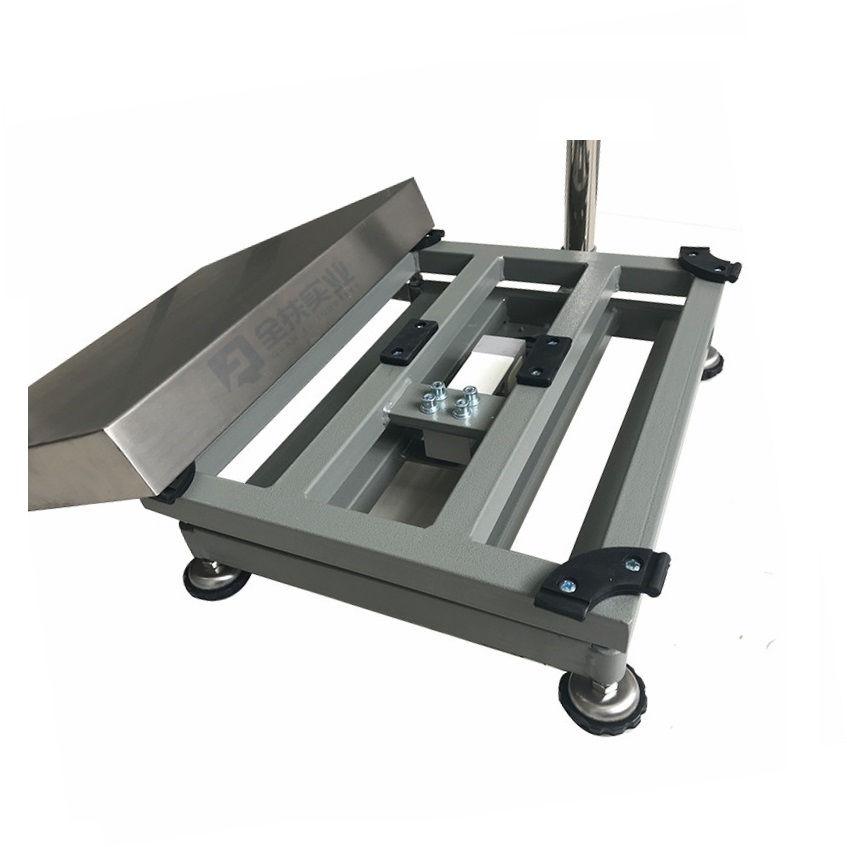

The scale frame is made of square or round tubes made of high-quality carbon steel or stainless steel by welding and stamping

The surface of stainless steel table top is polished and brushed to meet the waterproof standard of IP-65

4 adjustable scale feet, detachable round tube upright and adjustable instrument angle

Reinforced structure weighing platform, precision welding, ensuring high-precision stability, firm and durable structure and strong pressure bearing capacity

High quality electrostatic spraying and sand blasting treatment, strong corrosion resistance, excellent platform strength, beautiful appearance and durability

Compact structure, stable performance, accurate measurement, high universality of parts, easy disassembly and transportation, and easy movement of scale body

The factory configuration is a high-precision pressure sensor, with a safe load of more than 150%

General size:

model

Range (optional)

Graduation value (customizable)

Table size (matching)

TCS-60A-516

20kg/30kg/60kg

1g/2g/5g/10g

300*400mm

TCS-100A-516

50kg/75kg/100kg

2g/5g/10g/20g

400*500mm

TCS-150A-516

60kg/150kg/200kg

2g/5g/10g/20g

400*500mm

TCS-300A-516

60kg/150kg/300kg

5g/10g/20g/50g

500*600mm

TCS-500A-516

300kg/500kg/600kg

10g/20g/50g/100g

600*800mm

Note: different measuring range and accuracy can be matched with weighing table of any size, and various table sizes can be customized

Special note: all series of electronic platform scale sensors of Shanghai Quanfu are equipped with AVIC sensors, with good quality and stable accuracy.

                  Tcs-a series electronic platform scales can be customized according to the application needs of different industries.

Share To:
Prev:Nothing
Related Products

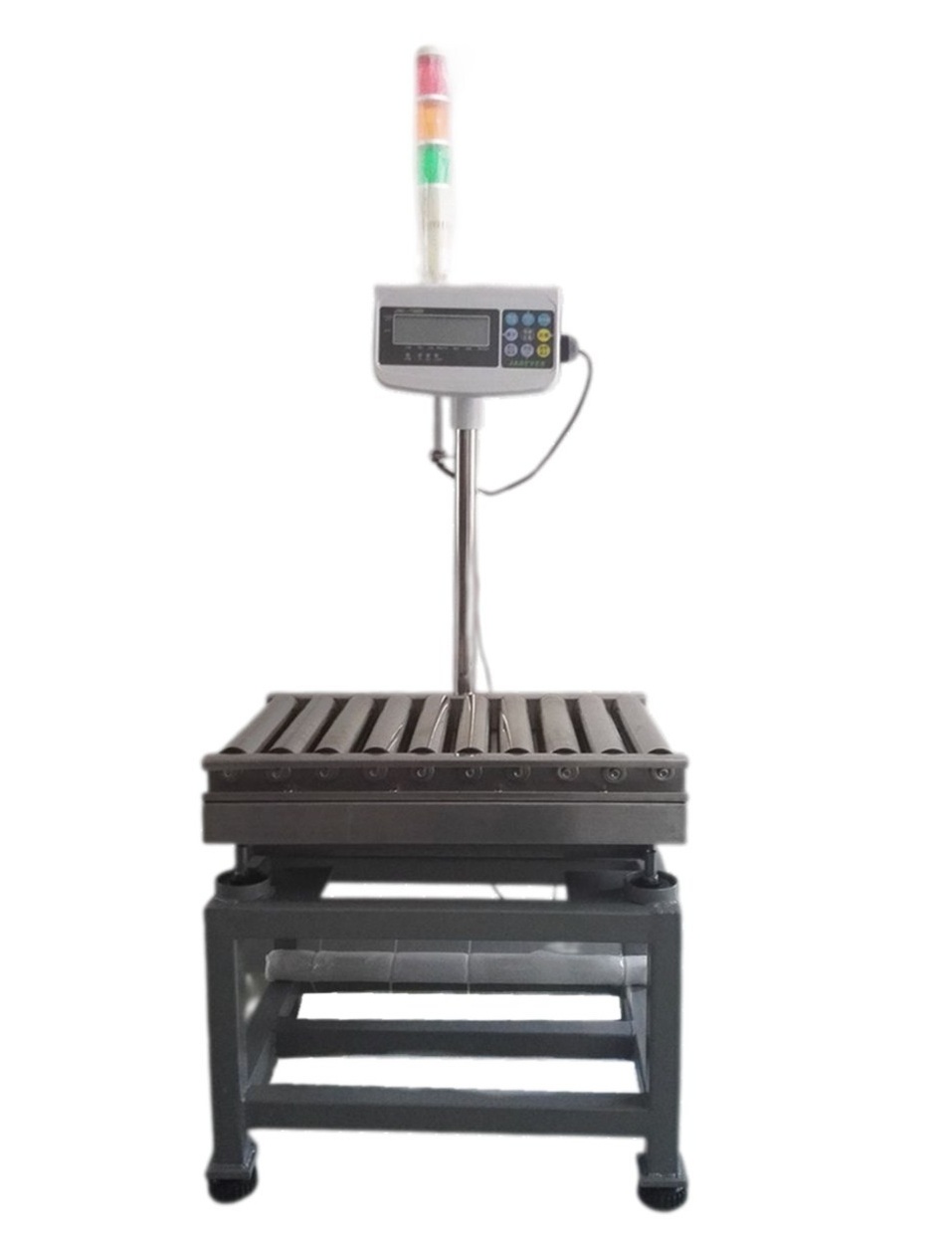

Retest scale, stainless steel unpowered drum scale and powered drum scale

Range: 6-150kg, division value: 2g-50g, high-precision roller scale

Weighing ultra light yellow light, overweight red light, normal green light, with buzzer, and external control equipment

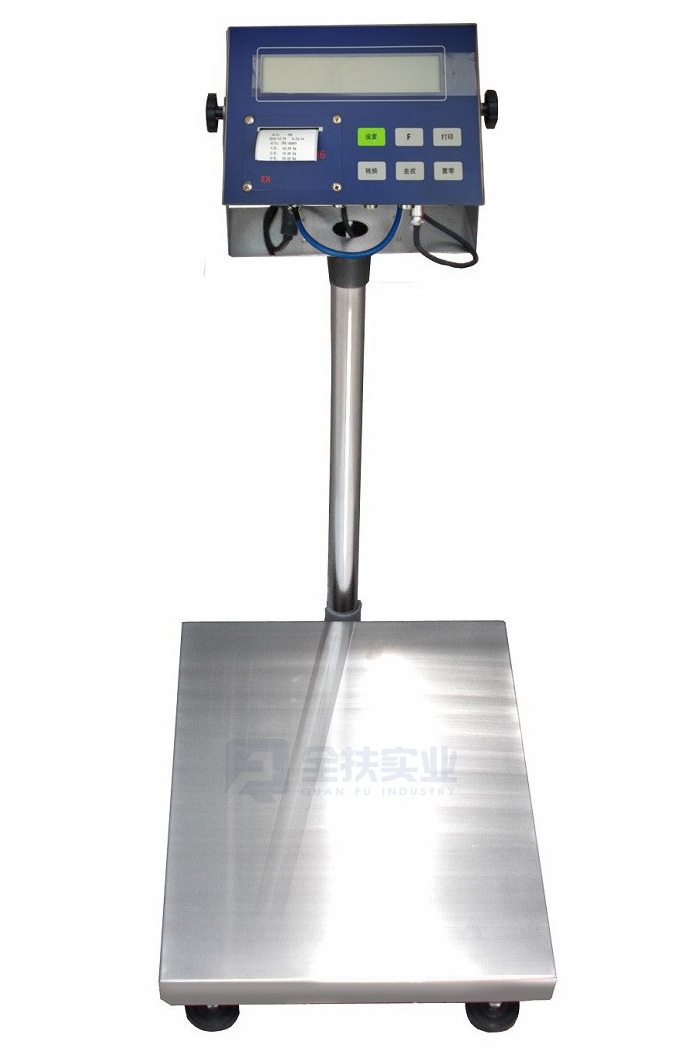

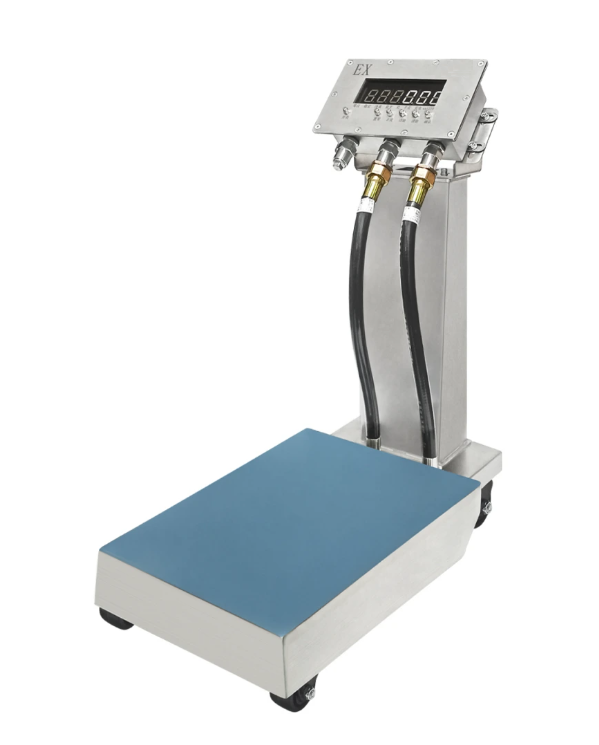

Explosion proof belt printed electronic scale, label printed explosion-proof platform scale

Intrinsically safe explosion-proof printing instrument, equipped with industrial explosion-proof platform scale

30kg to 1000kg range optional

It is used in places where chemical and pharmaceutical enterprises need to weigh and print

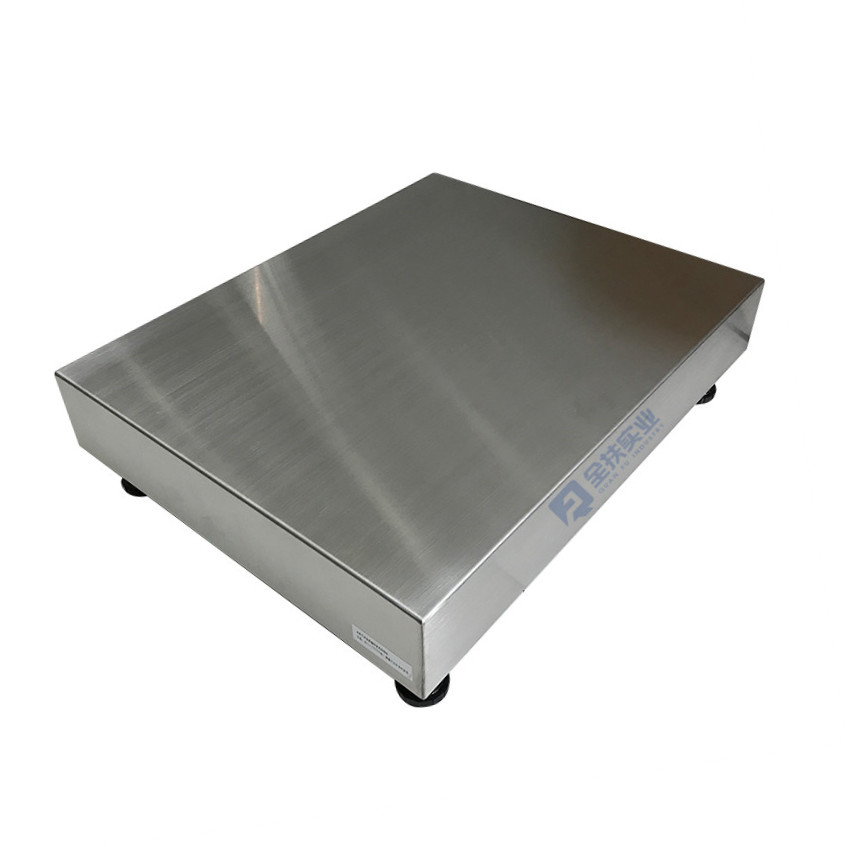

Electronic scale digital platform scale without weighing display instrument

The weighing platform can be directly connected to the computer with data transmission function

Communication protocol: RS232 / 485 communication or MODBUS-RTU format (bus + with address)

Weight data output rate 10 times / S

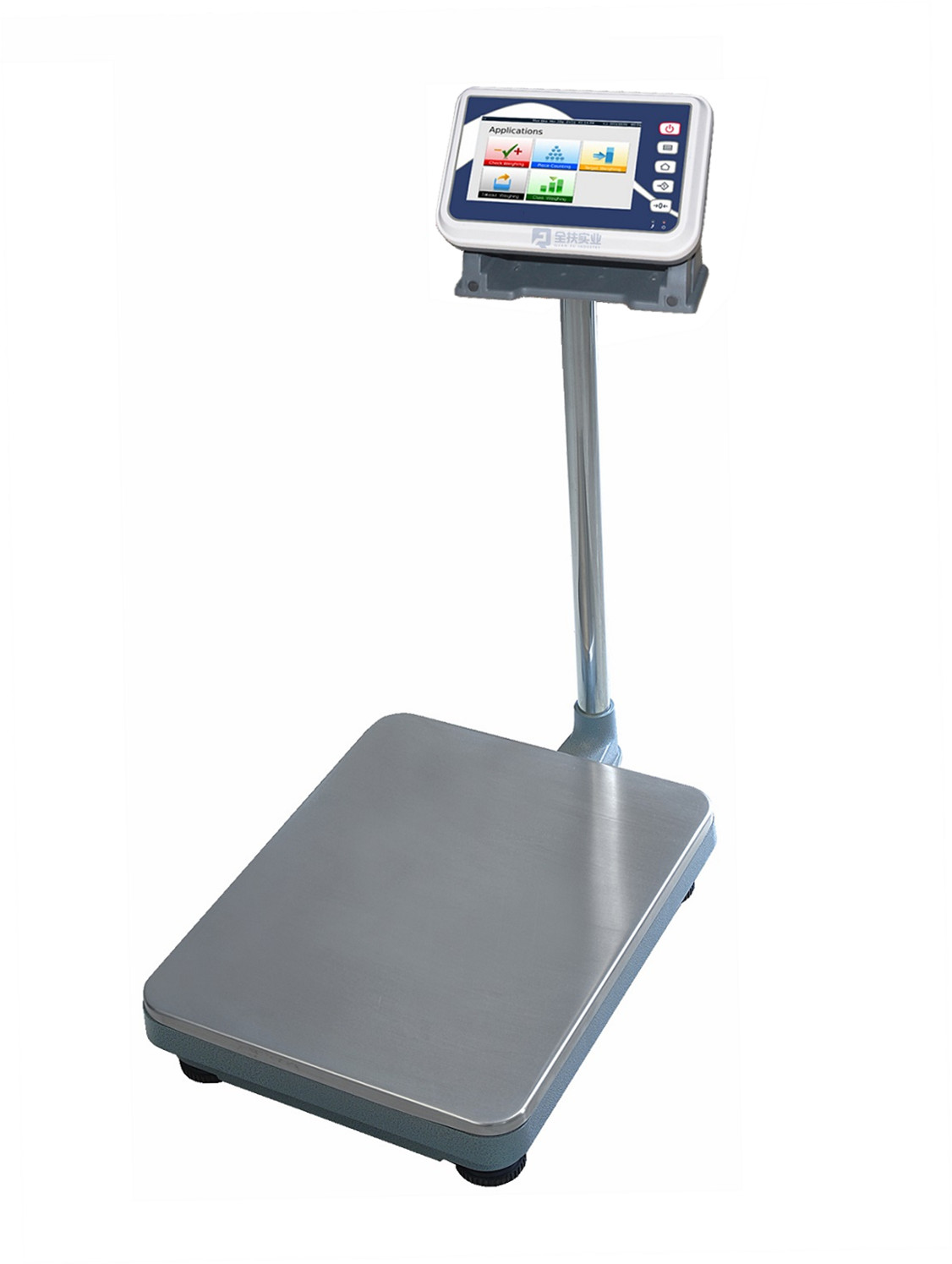

Industrial intelligent electronic scale Android electronic platform scale   Configuration High

High quality Android weighing display, equipped with industrial high-quality weighing platform

It has the functions of weight counting, counting, printing, networking, data transmission, supporting secondary development and so on

30kg to 1000kg range is optional, data acquisition, transceiver, PLC connection, etc

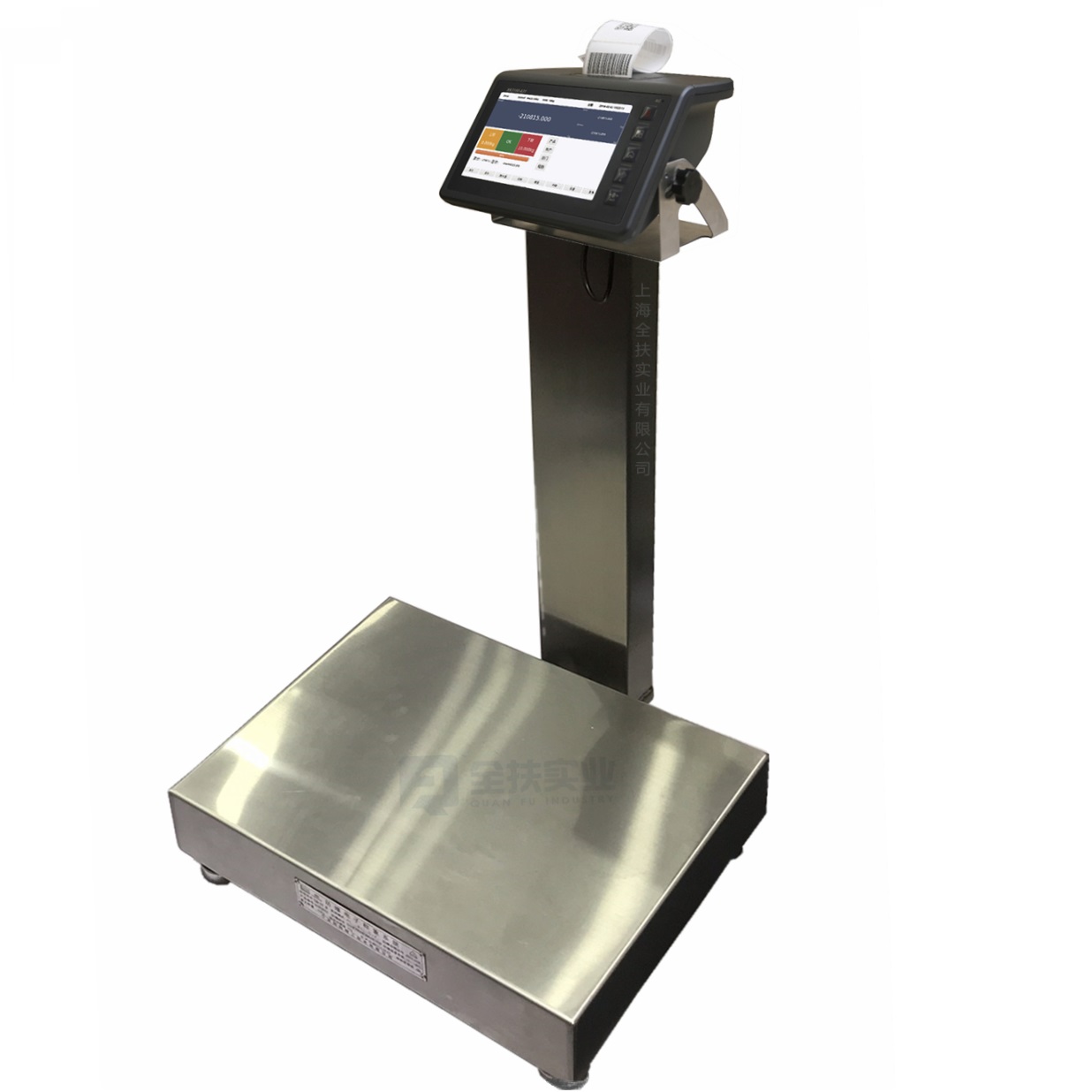

Customized electronic scale, electronic scale, Internet of things

It has the functions of weight measurement, counting, pricing, printing, networking, data transmission and so on

液晶屏或触摸屏称重显示仪表,安卓系列可选,支持二次开发

The range of 30kg to 1000kg is optional, and multiple devices can be connected with WiFi

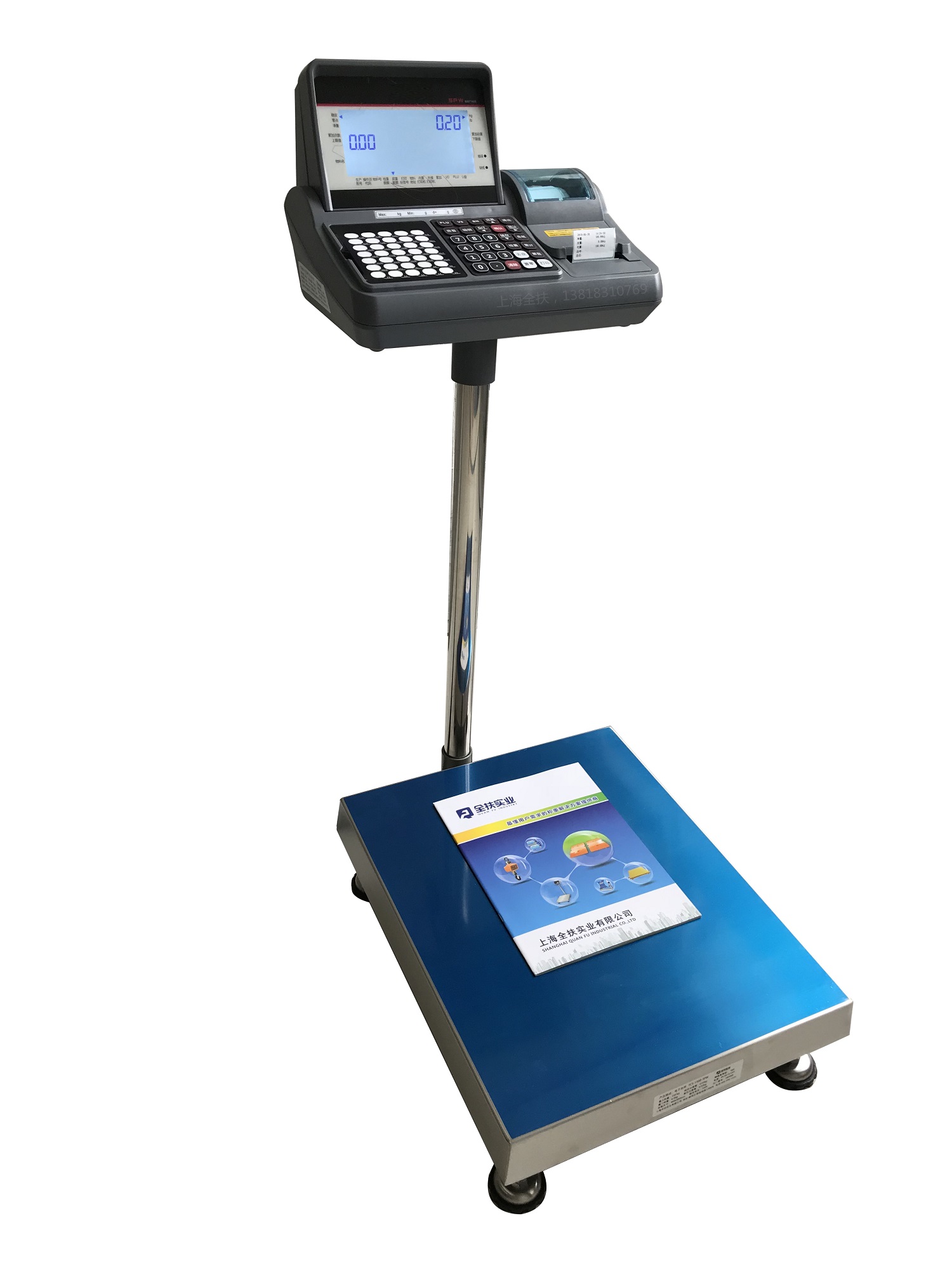

Bar code printing electronic platform scale, combined printing platform scale

There are weight counting, pricing, printing, networked data transmission, etc, Multiple functions and good quality

The range of 30kg to 1000kg can be selected, and the printing base paper can be recycled automatically

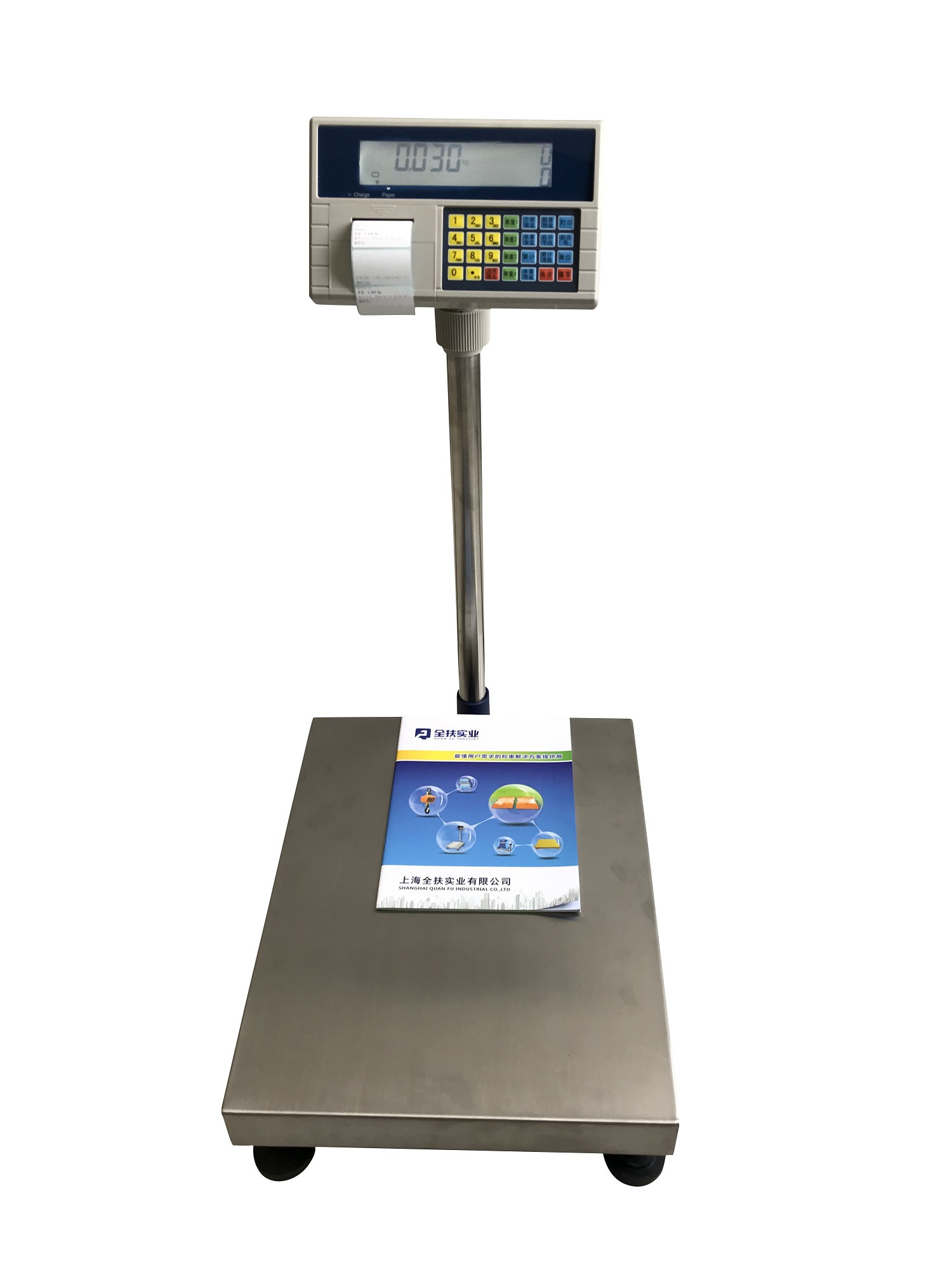

Self adhesive label printing, electronic platform scale, industrial platform scale

It is suitable for weighing, counting and printing of high-quality materials and setting of upper and lower limits

Single window weight meter or three window counting meter is optional, LED or LCD display

Built in RS232 interface can be connected to computer, printer, alarm light or external control equipment

The range of 6kg to 500kg can be selected, and dustproof, antimagnetic and antistatic are optional

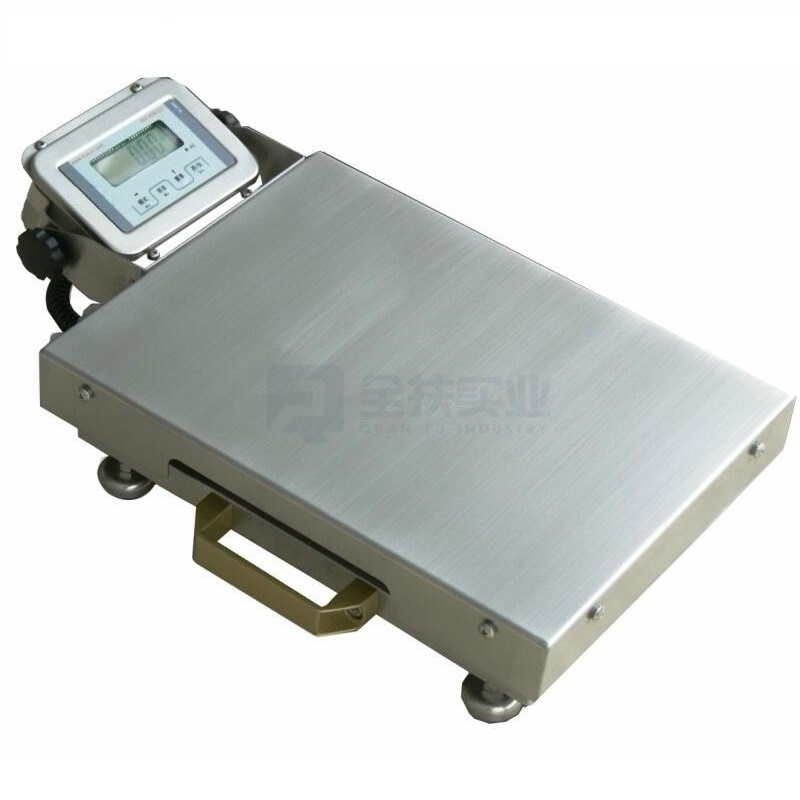

Portable portable electronic platform scale, small electronic scale

Portable electronic scale with good quality

It is used in express delivery, logistics, medical waste recycling, waste classification and other occasions where it can be weighed everywhere

Built in RS232 or Bluetooth interface can be connected to computer, printer or external control equipment

6kg to 300kg range available

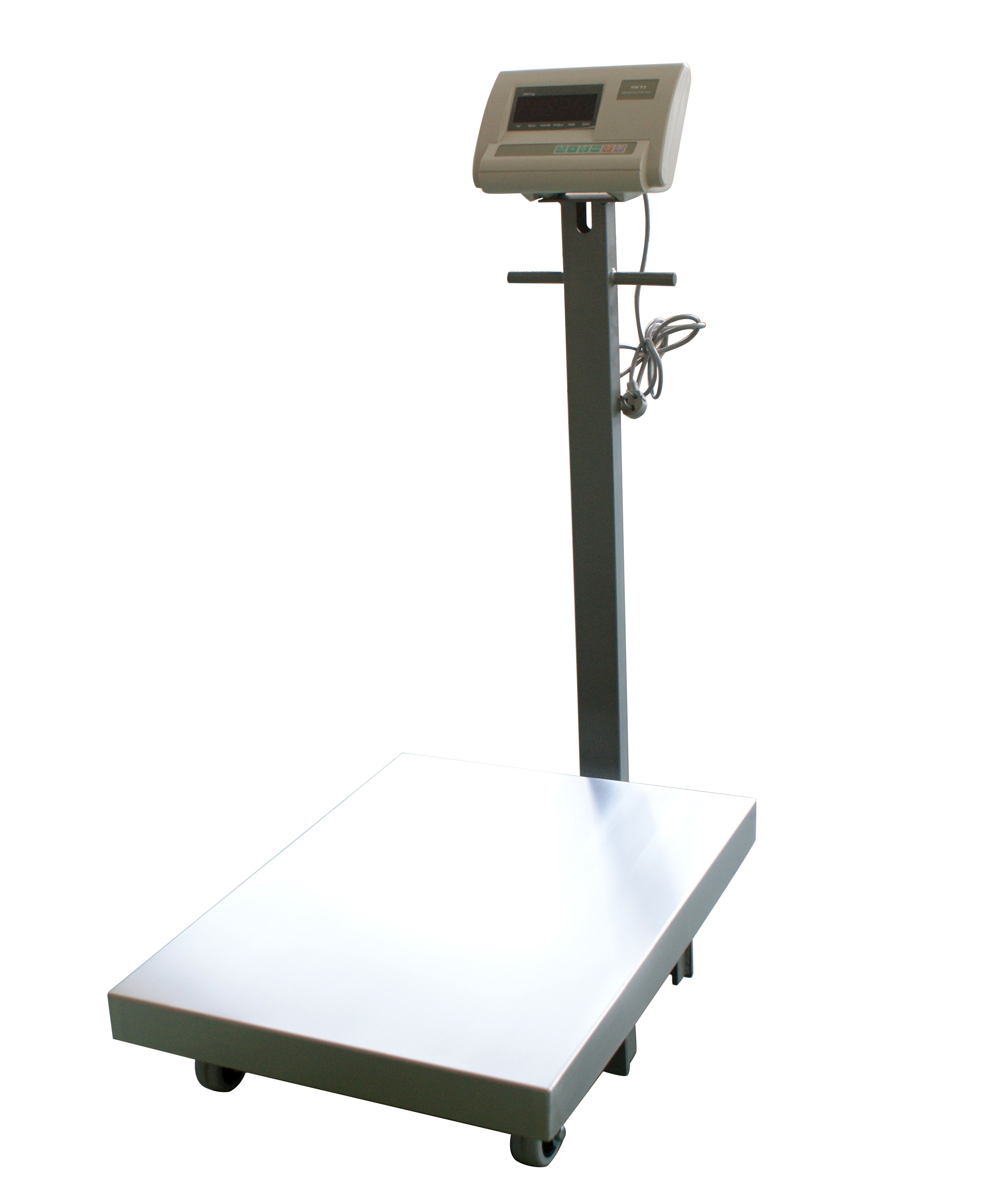

Mobile industrial platform scale, Customized movable scale

Integrated mobile handrail for scale body, instrument and vertical pole

LED or LCD display instrument

It can be used in various factory workshops where weighing is required and mobile weighing is often required

The range of 60kg to 300kg is available

High precision electronic platform scale, weighing 0 ~ 100kg, accuracy 1g

The maximum weighing capacity ranges from 6kg to 600kg, and the displayed division value ranges from 1g to 20g

Real high-precision scale, high display resolution, high-strength scale body and compact structure

Equipped with imported components and high-precision sensors, special customization and order production

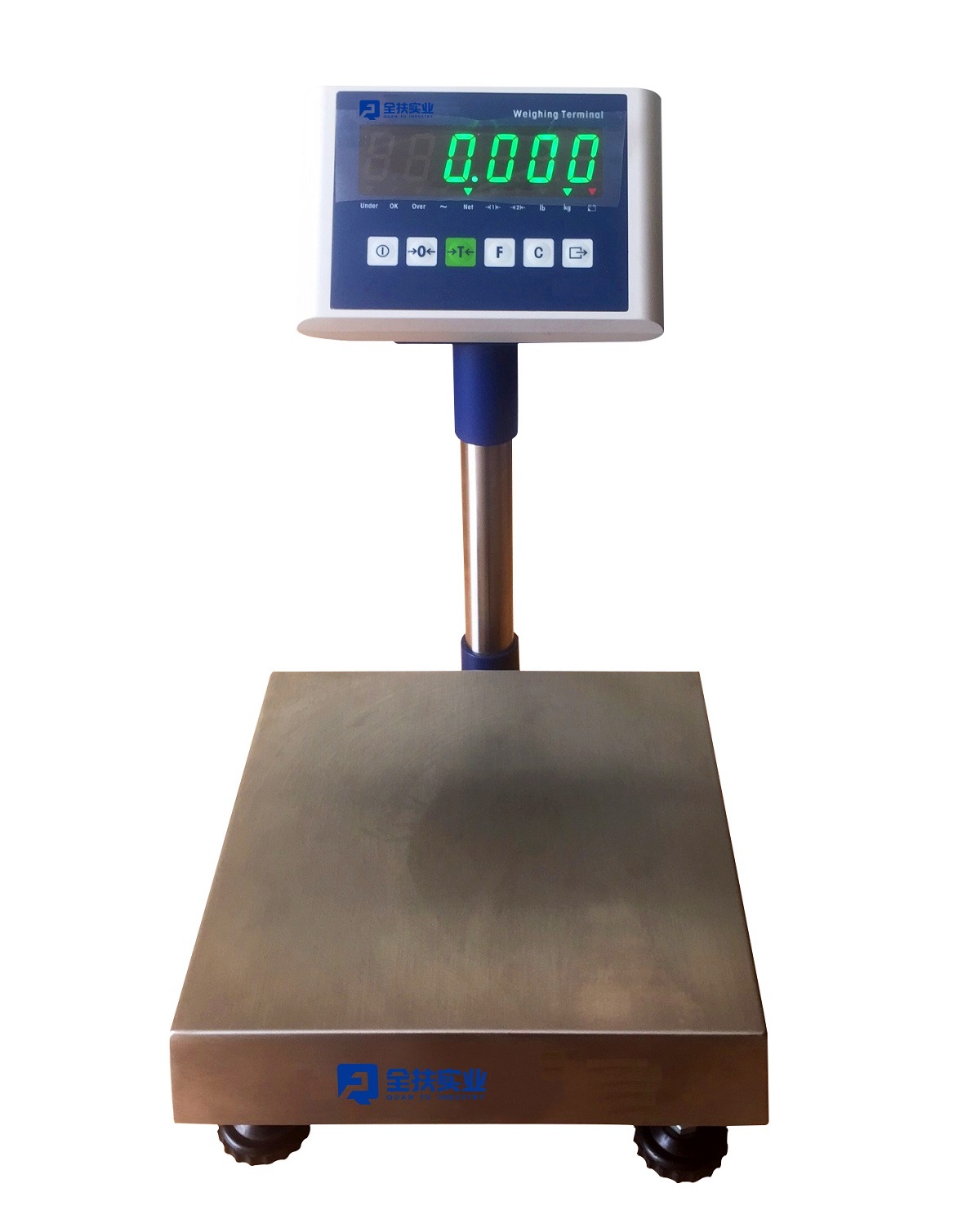

High precision electronic platform scale, good quality and high precision
