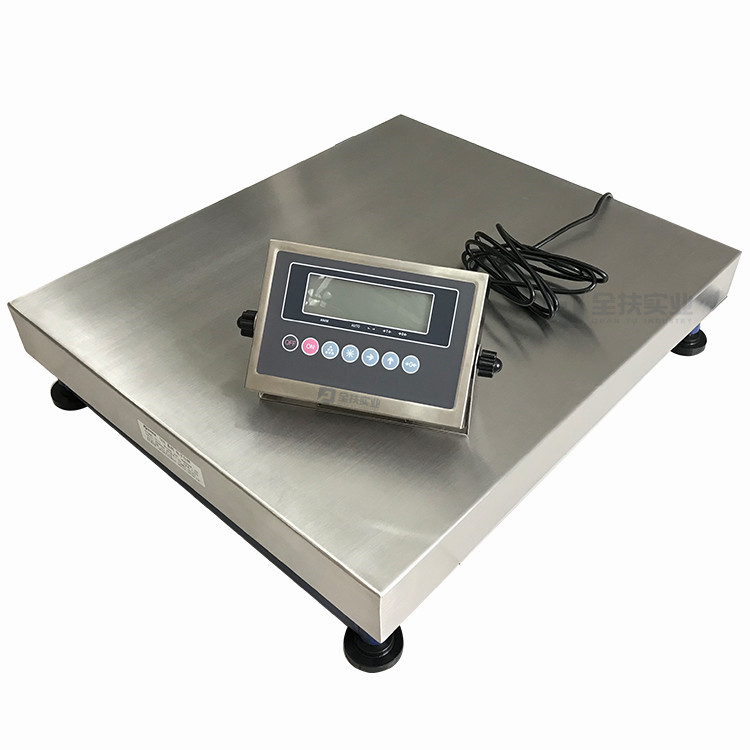

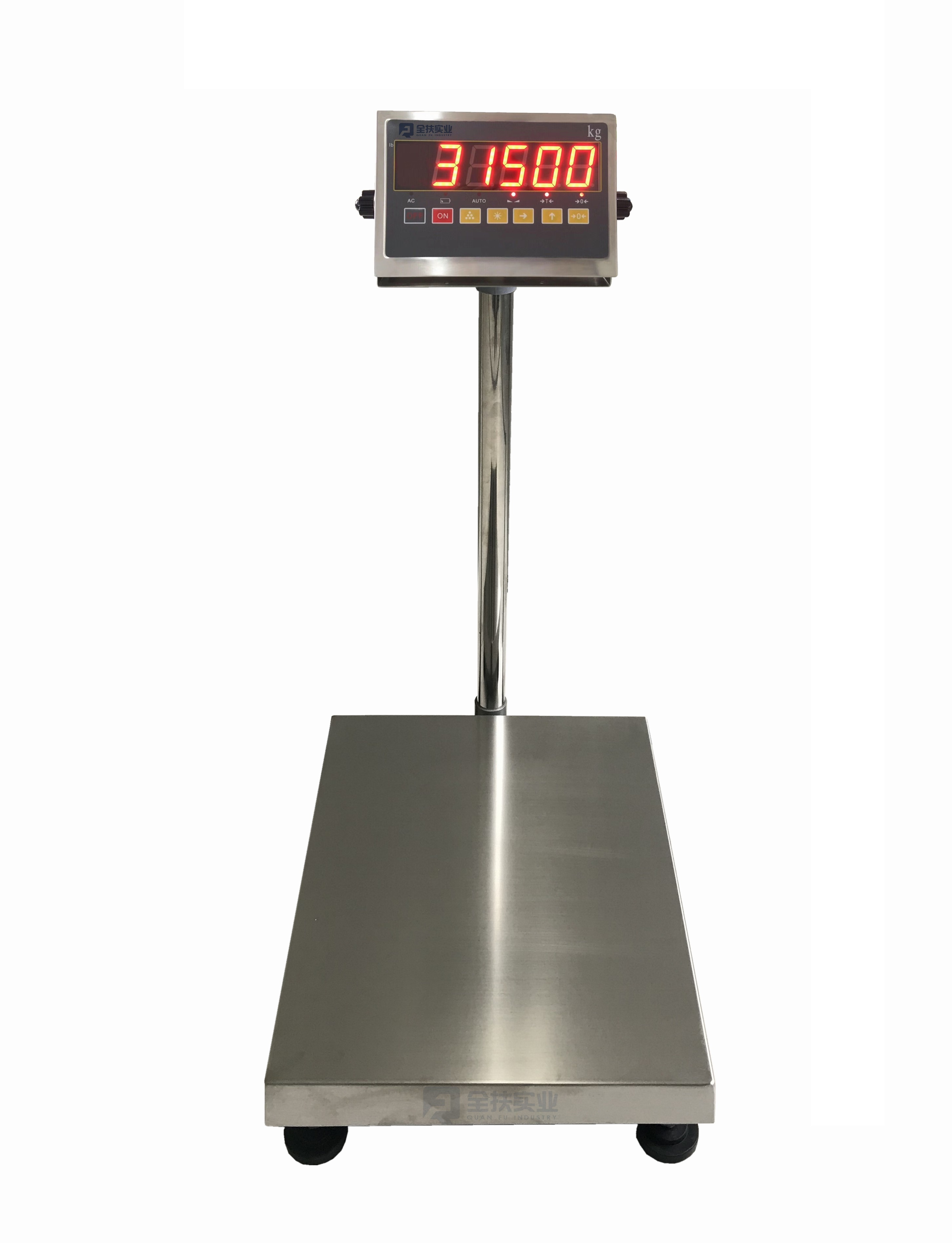

TCS-SS waterproof platform scale waterproof electronic scale

All stainless steel electronic platform scale, waterproof platform scale

All stainless steel waterproof platform scale for humid, harsh and sanitary environment

Comply with sanitary standards, Open and sturdy stainless steel platform scale with IP66 and IP67 protection

RS232/485 communication interface can be configured to connect computers, printers or external control devices

Range from 6kg to 500kg is available

Product Details

TCS-SS series all stainless steel platform scale is a multi-functional all stainless steel platform scale for humid, harsh and sanitary environment Waterproof platform scale 。 The scale body and instrument are designed with IP68 protection. 304/316 stainless steel scale frame, scale plate and welded and sealed stainless steel sensor make the weighing performance stable, reliable and durable.

Technical parameters:

Accuracy class: III

Weighing display: 6-bit LED or LCD with backlight

Range: 20kg/30kg/50kg/60kg/150kg/300kg/600kg

Dividing value: 1g/2g/5g/10g/20g/50g/100g

Scale platform size: 300 * 400mm, 400 * 500, 500 * 600mm, 600 * 800mm (customizable)

Operating environment: operating temperature - 10 ℃~+40 ℃, relative humidity ≤ 85% R.H

Working power supply: AC110~220V 50/60Hz, built-in lead acid battery DC4-6V/4Ah

Basic functions:

With weighing zero setting, tare removal, accumulation, weight counting, weight inspection, upper and lower limit control

Optional RS232/485 communication interface, external computer or printer

Optional 4-20mA analog output or relay output

Optional intelligent touch screen waterproof and explosion-proof

Optional mobile mechanism

Product features:

stainless steel Waterproof electronic platform scale The whole scale conforms to the latest hygienic design specifications. The instrument can be equipped with plastic shell or fully sealed waterproof shell, which can be efficiently cleaned and meet the production hygiene requirements of food workers' trade. It can be widely used in food, chemical and pharmaceutical industries. The product can effectively resist the vibration of the production environment and realize fast and stable weighing; It can be equipped with rich touch screen weighing application modes, which can be efficiently applied to production, packaging, inventory management, shipping and other links.

The scale body adopts a stainless steel pan and a full stainless steel frame, with durable structure, high weighing accuracy, safety and stability.

Normal size:

model

range (Optional)

Graduation value (Customizable)

Platform size (can be matched)

TCS-30-510

6kg~30kg

1g/2g/5g/10g

300*400mm

TCS-60-510

20kg~60kg

2g/5g/10g/20g

400*500mm

TCS-150-510

50kg~150kg

2g/5g/10g/20g

400*500mm

TCS-300-510

100kg~300kg

5g/10g/20g/50g

600*800mm

Note: Different measuring ranges and accuracies can be matched with weighing tables of any size, and various table sizes can be customized


Shanghai Quanfu Industrial Co., Ltd. can provide solutions to meet all your weighing needs

More than ten years of precision electronic scale manufacture and service, and the products are applied to laboratory manufacture trade and Retail service trade

Shanghai Quanfu can help customers simplify processes, improve productivity, ensure that products comply with laws and regulations, and optimize costs.

It can provide users with fast, reliable and safe weighing requirements! Value hotline: 400-990-1320
