Shanghai Quanfu Industrial Co., Ltd

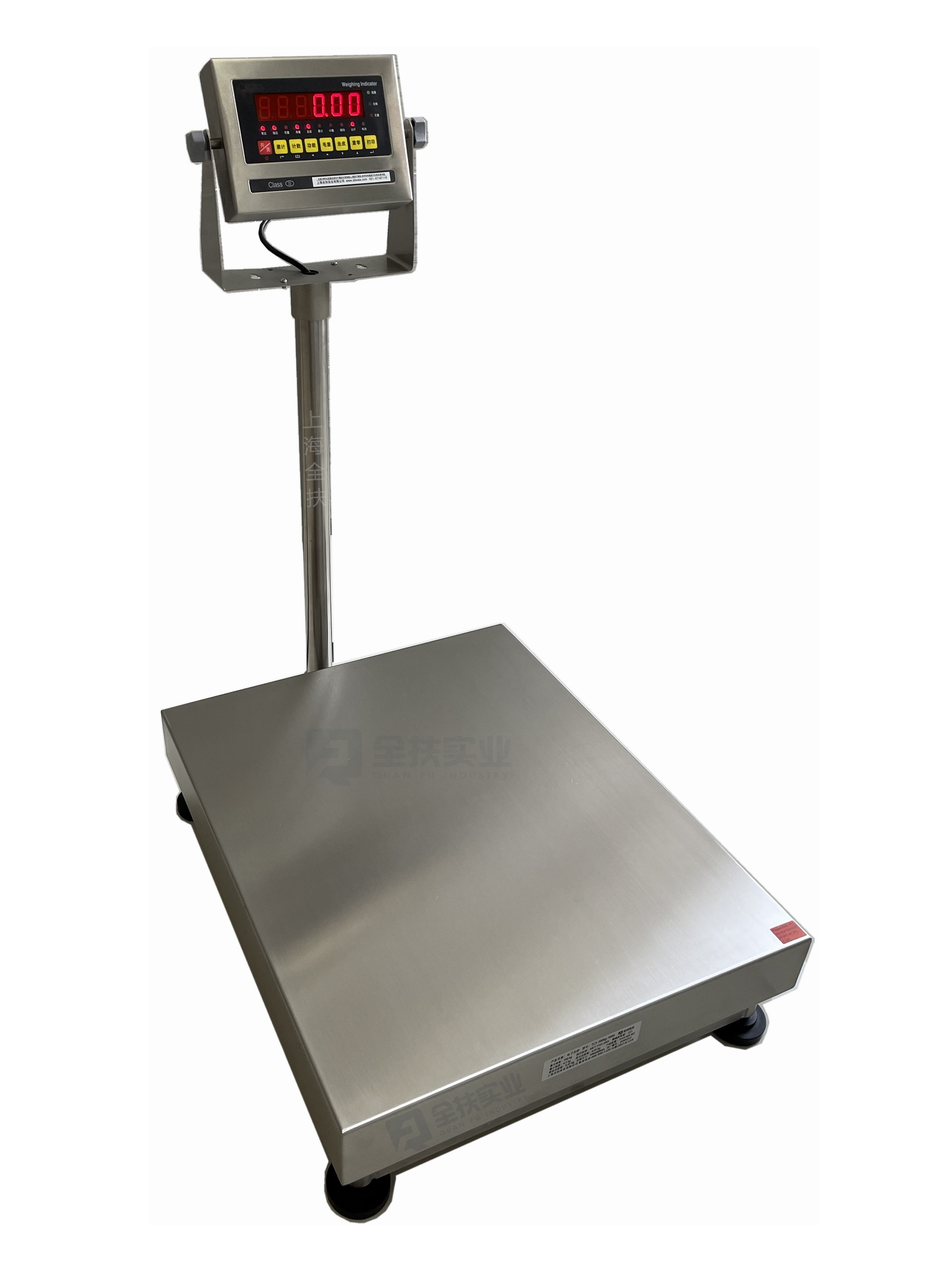

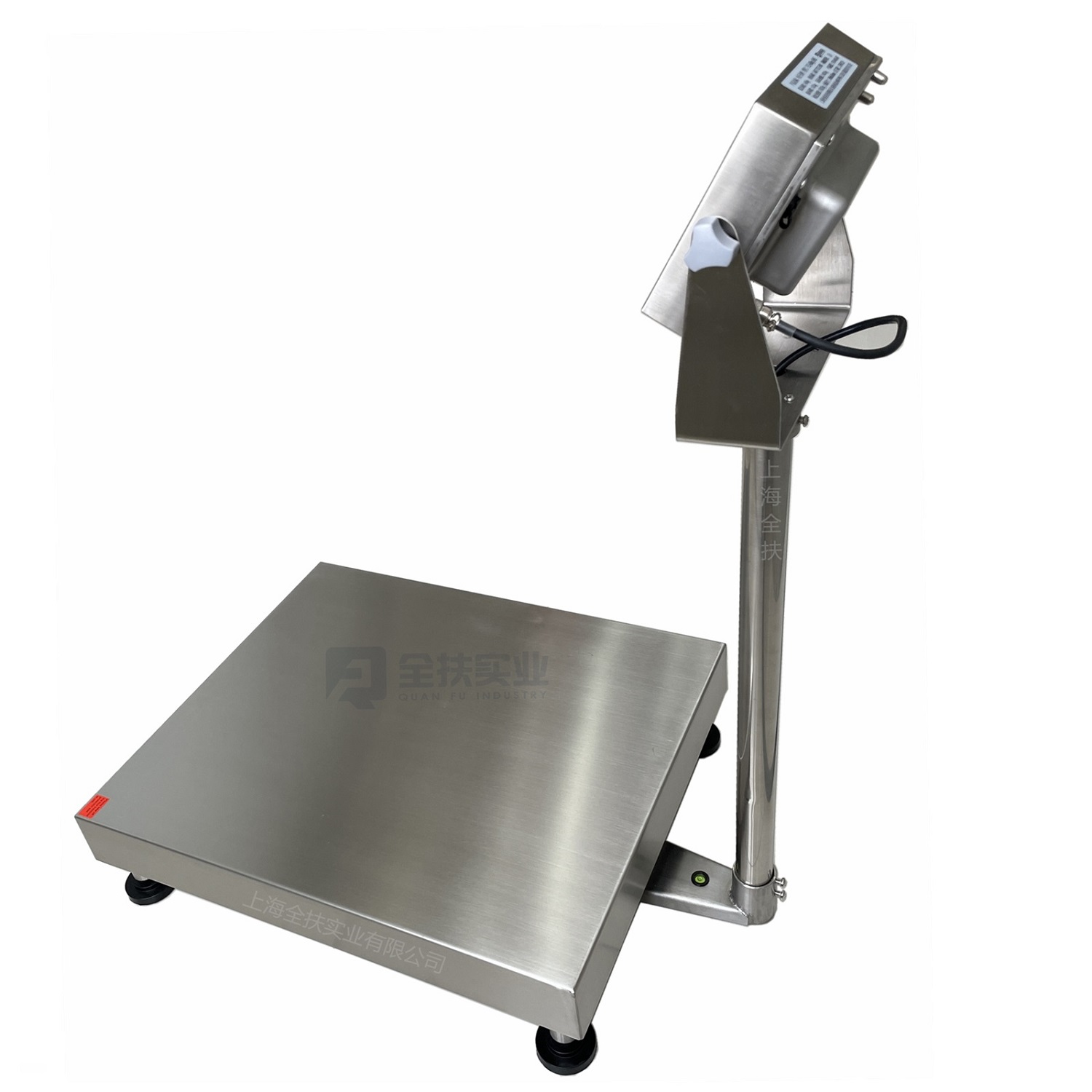

TCS-S stainless steel electronic platform scale industrial platform scale

Stainless steel electronic platform scale, good quality, simple and intuitive operation

It can be used for direct weighing, counting, basic weight checking and classification applications in harsh environments

LED or LCD display weight or counting instrument, stainless steel instrument is optional

RS232 / 485 communication interface can be configured to connect computers, printers or external control equipment

6kg to 500kg range available


Product Details

TCS series All stainless steel electronic platform scale The scale frame and pan are made of corrosion-resistant 304 or 316 stainless steel, which are widely used in various weighing links such as production, packaging, inventory management and shipping in food, chemical and pharmaceutical industries.

Technical parameters:

Accuracy class: III

Weighing display: 6-digit LED or LCD with backlight

Measuring range: 20kg / 30kg / 50kg / 60kg / 150kg / 300kg / 600kg

Division value: 1g / 2G / 5G / 10g / 20g / 50g / 100g

Scale platform size: 300 * 400mm, 400 * 500, 500 * 600mm, 600 * 800mm (customizable)

Operating environment: working temperature - 10 ℃ ~ + 40 ℃, relative humidity ≤ 85% R.H

Working power supply: ac110 ~ 220V 50 / 60Hz, built-in lead-acid battery dc4-6v / 4ah

Basic functions:

It has weighing zero setting, peeling, accumulation, weight counting, weight inspection and upper and lower limit control

Optional RS232 / 485 communication interface, external computer or printer

Optional 4-20mA analog output or relay output

Optional waterproof and explosion-proof type

Optional mobile mechanism

Product features:

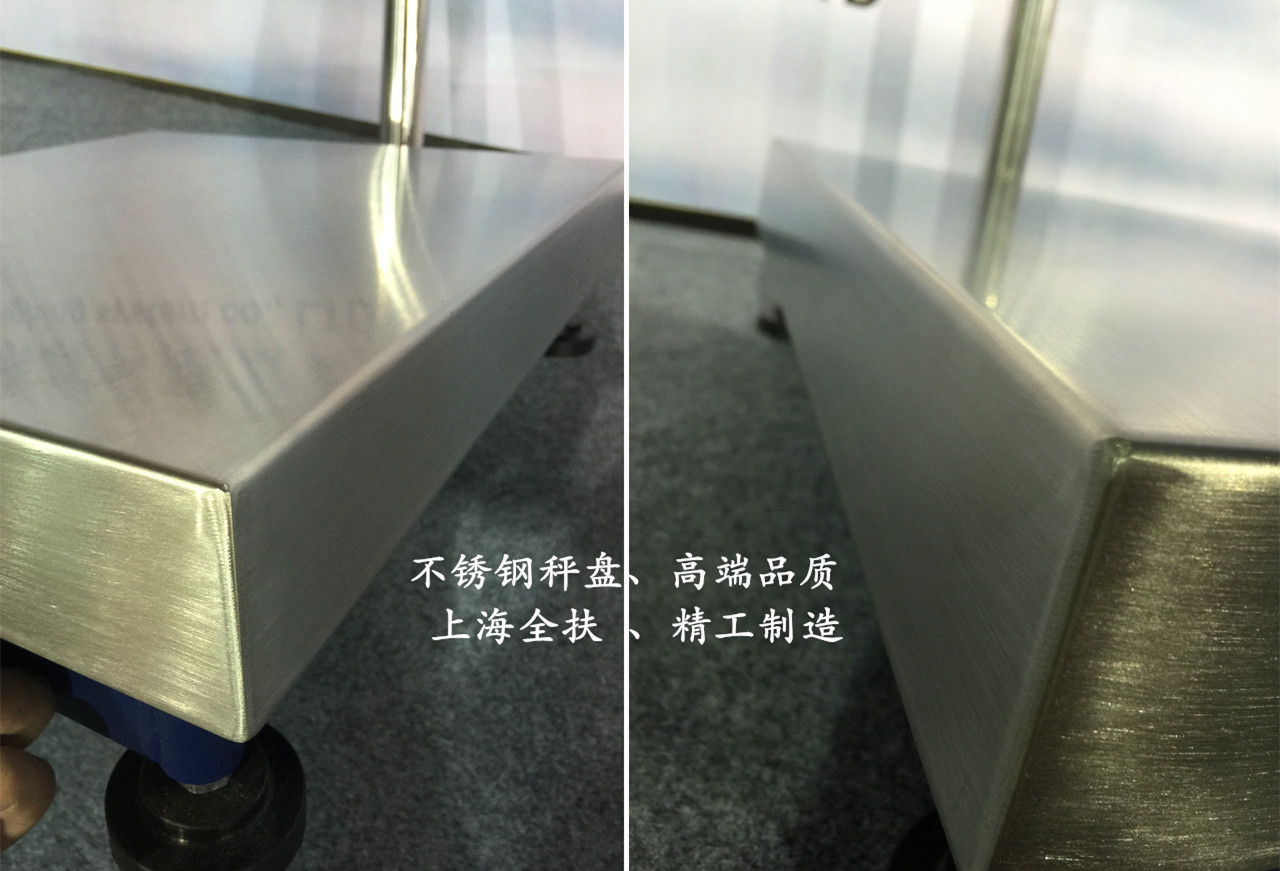

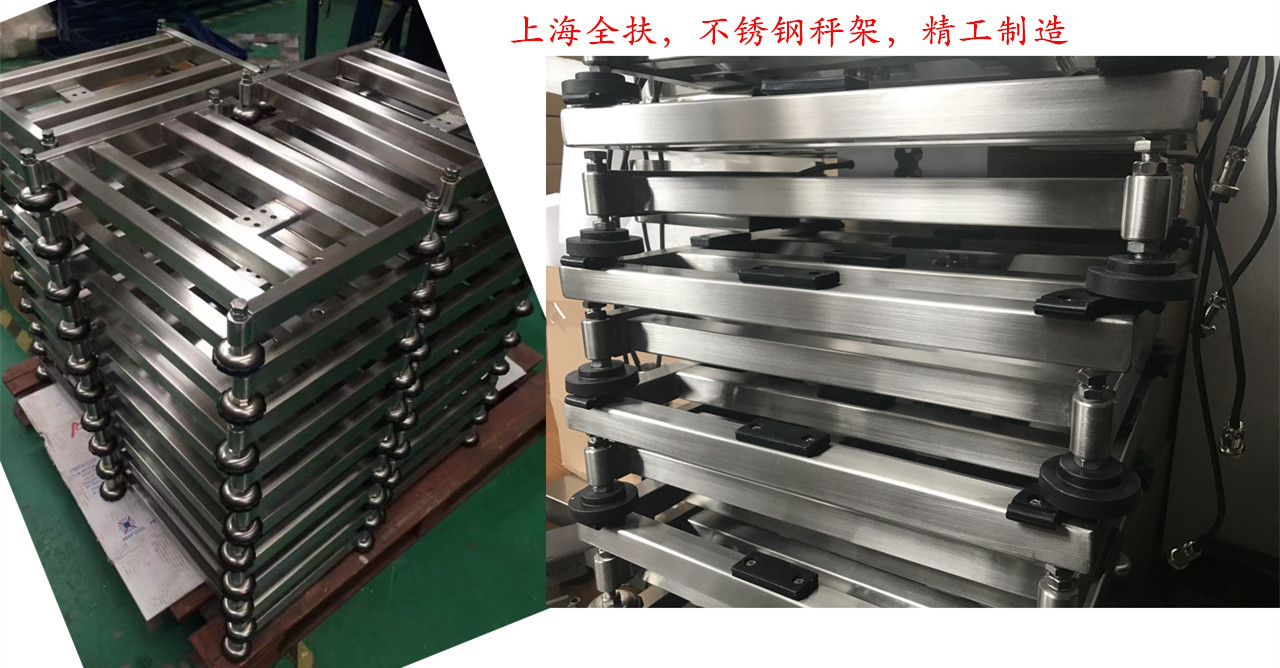

The scale frame and pan are welded and stamped with corrosion-resistant 304 / 316 stainless steel square or circular tubes

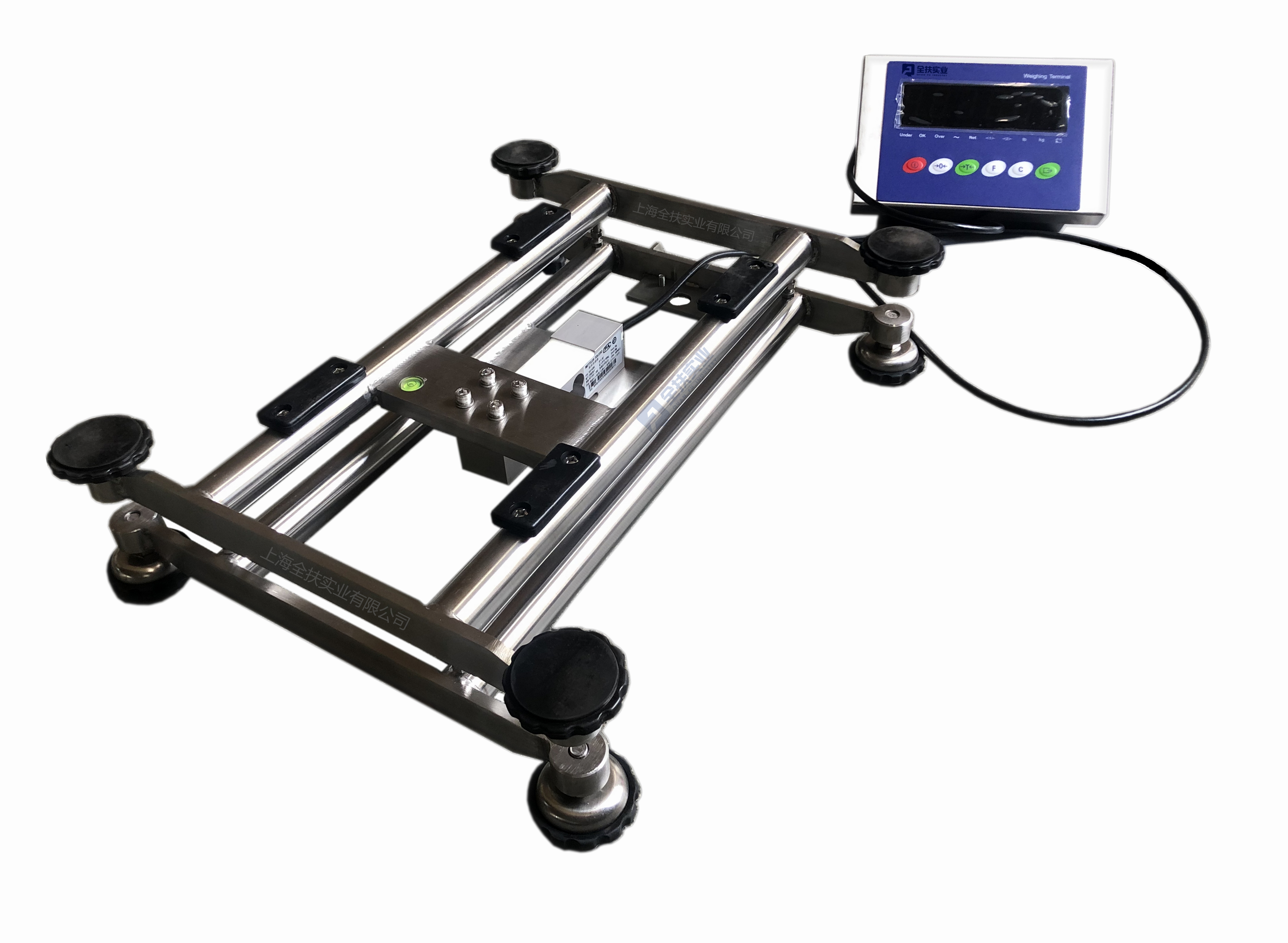

It is equipped with high-precision welded sealed aluminum alloy or stainless steel sensor and plastic shell or stainless steel weighing display instrument

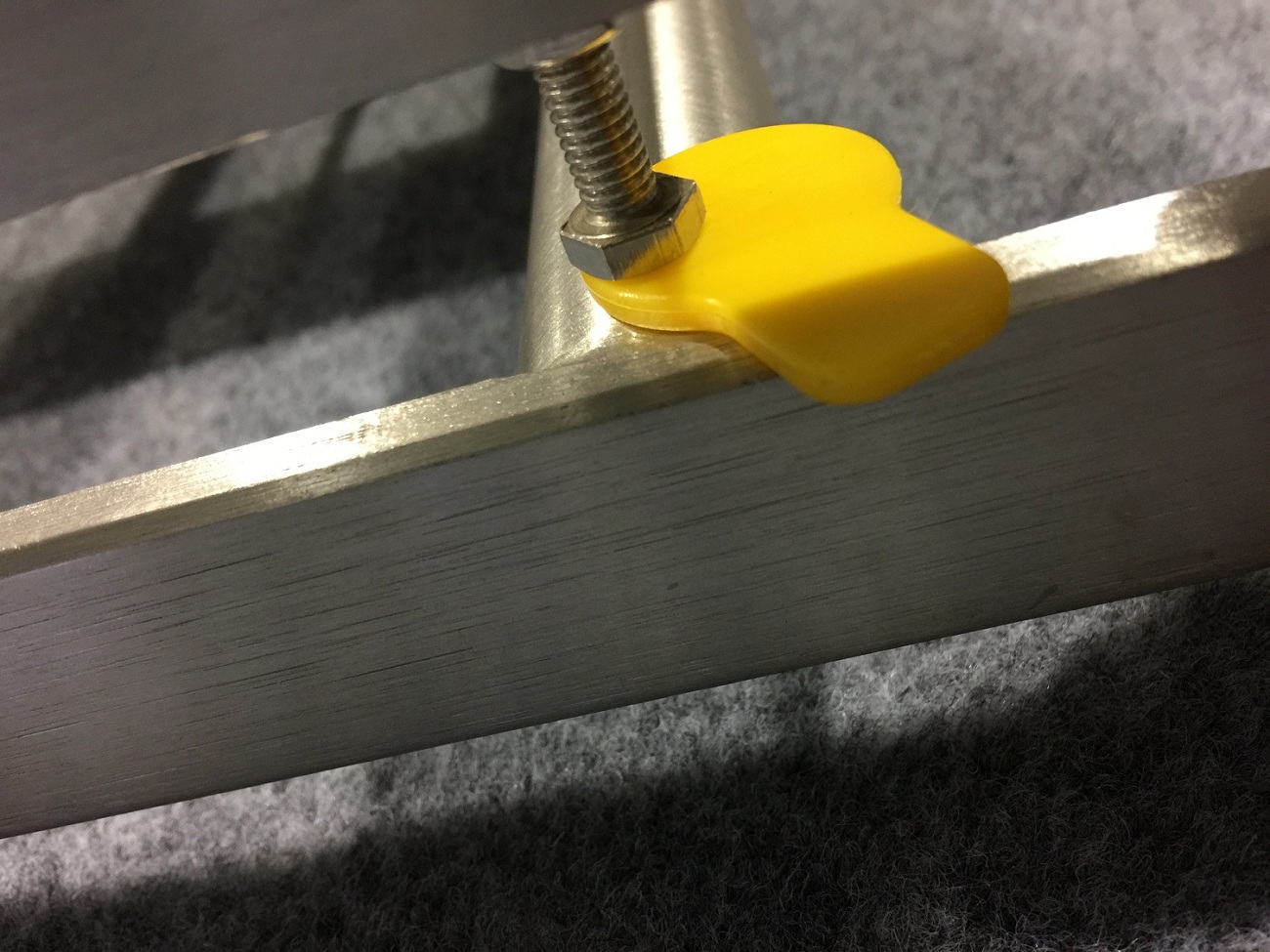

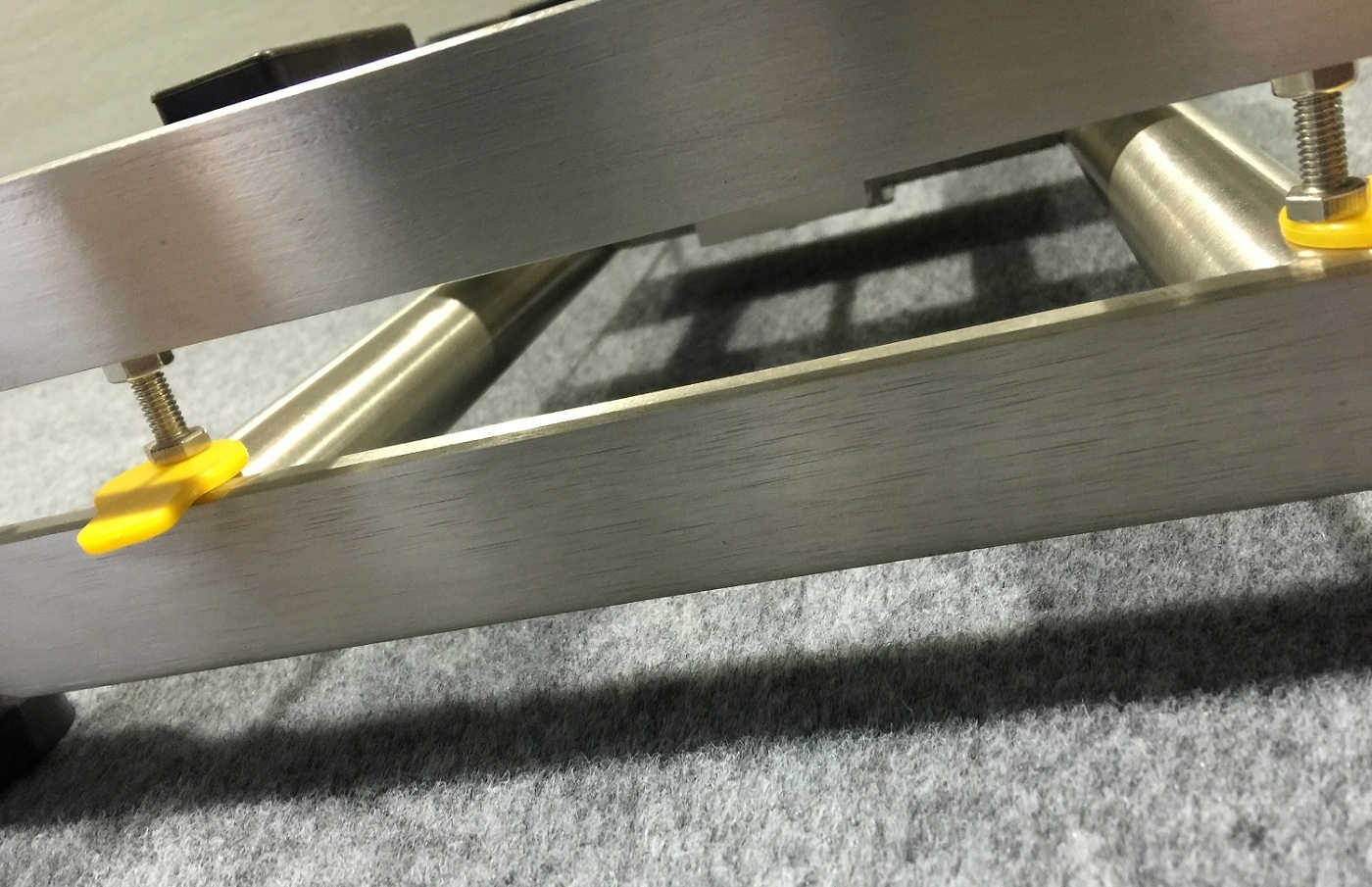

4 adjustable scale feet, removable round tube or square tube upright, and adjustable instrument angle

Compact structure weighing platform, precision welding, ensuring high-precision stability, firm and durable structure and strong pressure bearing capacity

Efficient application in food, chemical and pharmaceutical industries, humid, harsh and hygienic environment.

General size:

model

range (optional)

Division value (customizable)

Platform size (matching)

TCS-60-510

20kg/30kg/60kg

1g/2g/5g/10g

400*500mm

TCS-100-510

50kg/75kg/100kg

2g/5g/10g/20g

400*500mm

TCS-150-510

150kg~200kg/300kg

2g/5g/10g/20g

400*500mm

TCS-300-510

60kg/150kg/300kg

5g/10g/20g/50g

500*600mm

TCS-500-510

300kg/500kg/600kg

10g/20g/50g/100g

600*800mm

Note: Different measuring range and accuracy can be matched with weighing table of any size, and various table sizes can be customized



Shanghai Quanfu only makes high-end weighing equipment, with pictures and truth, high-end production technology and visible quality!


Special note: high strength industrial stainless steel platform scale, made of high-quality 304 or 316 stainless steel, high-quality production process, good rigidity, supporting high-precision sensors and weighing instruments, high-precision measurement, various measuring ranges, accuracy and table size. Welcome to inquire and order.
